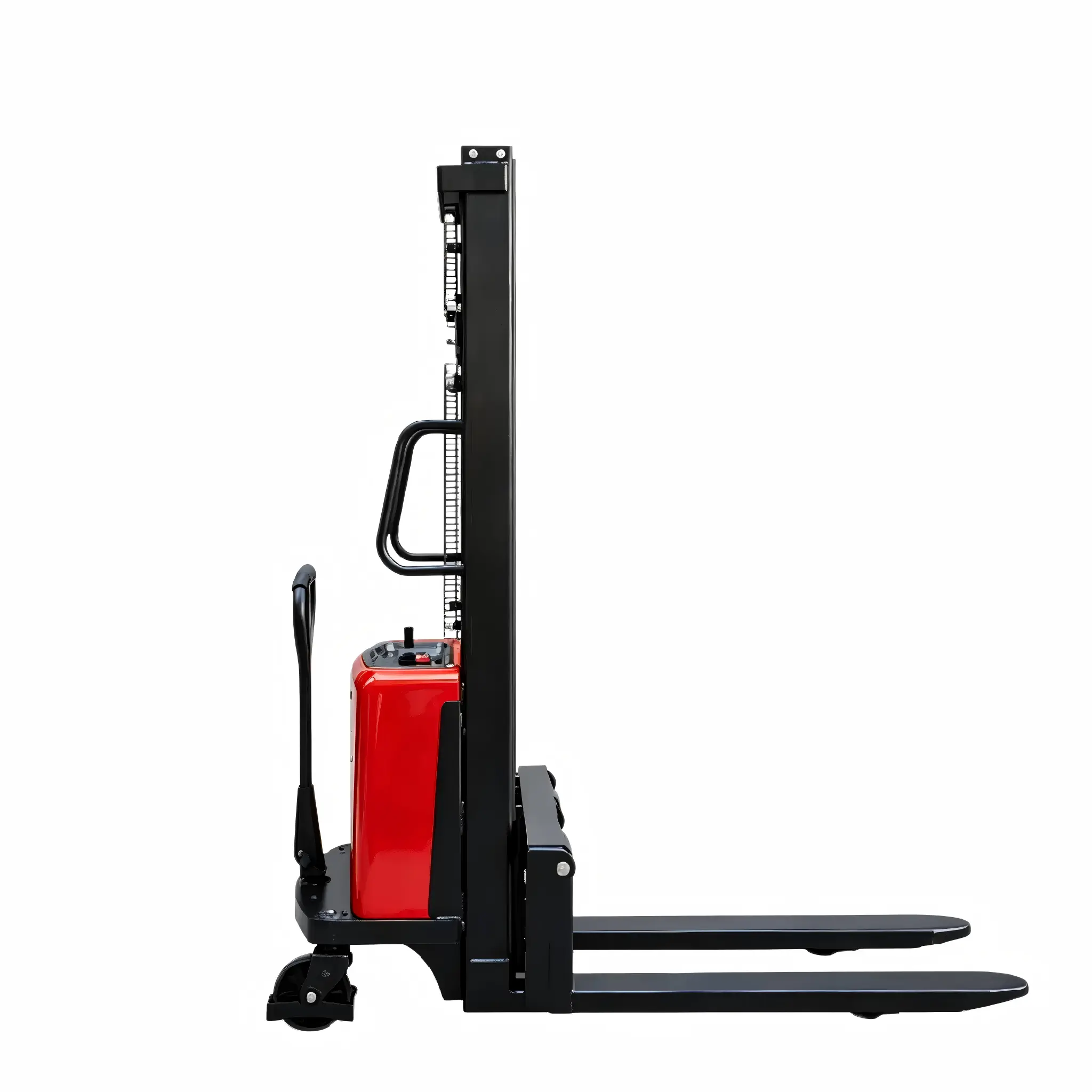

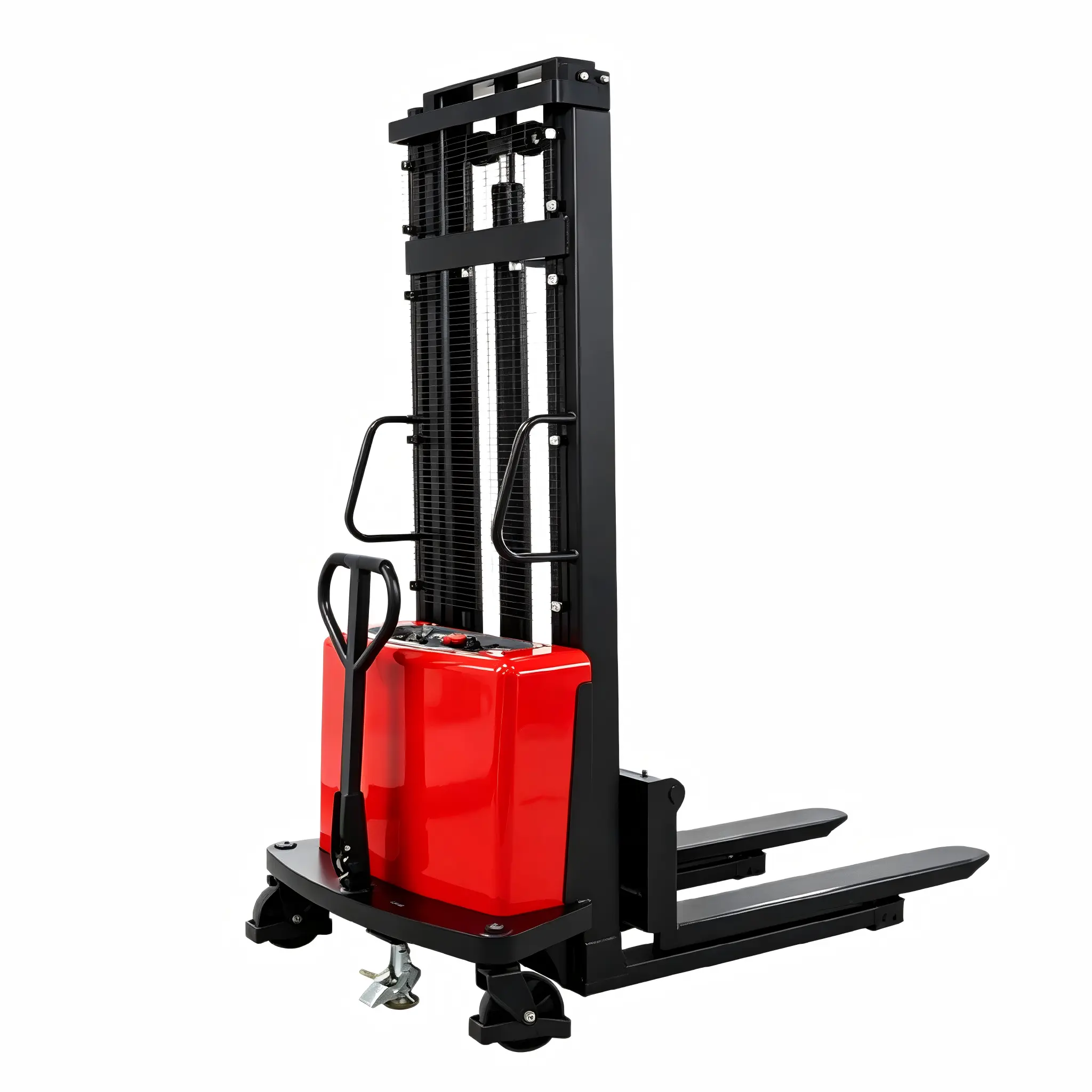

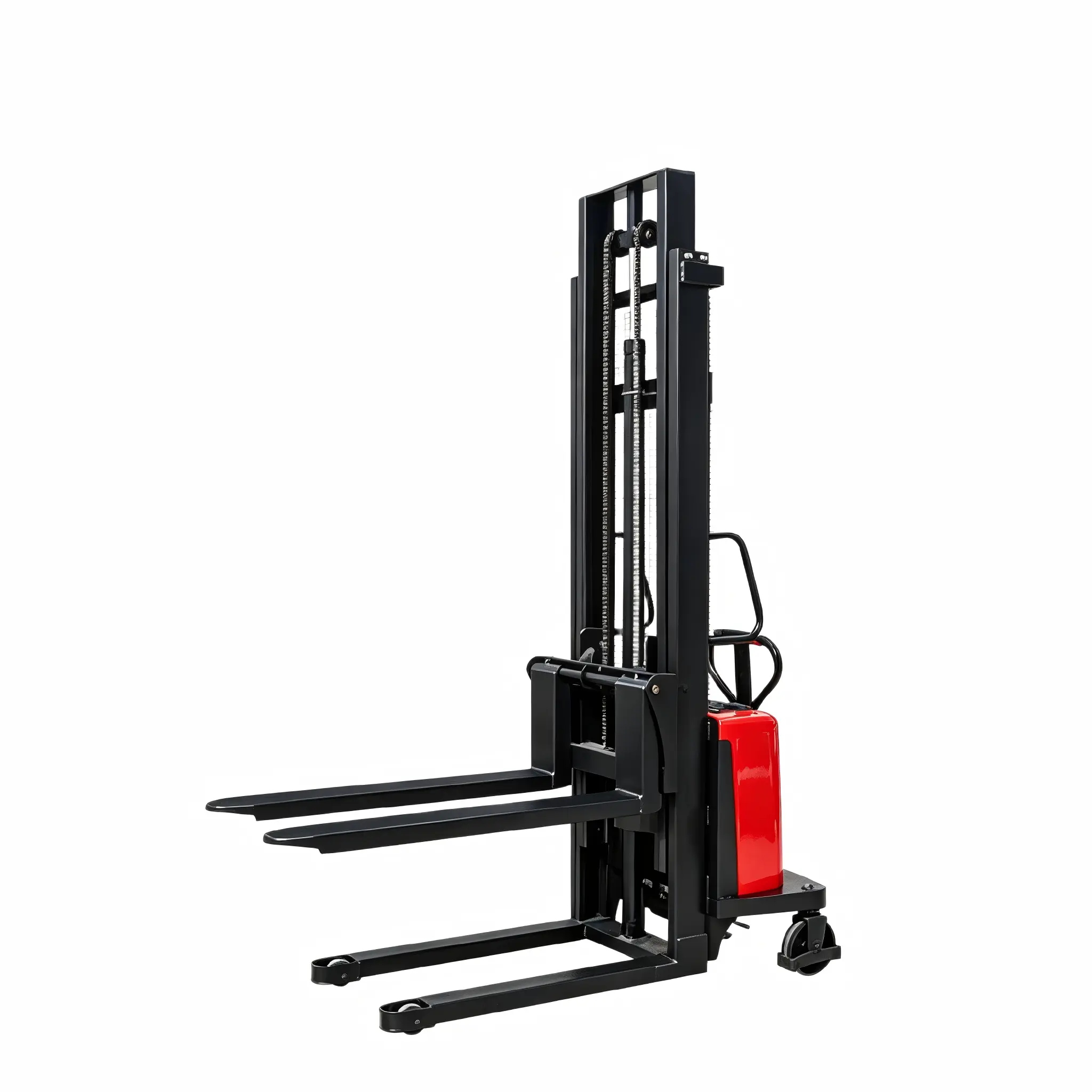

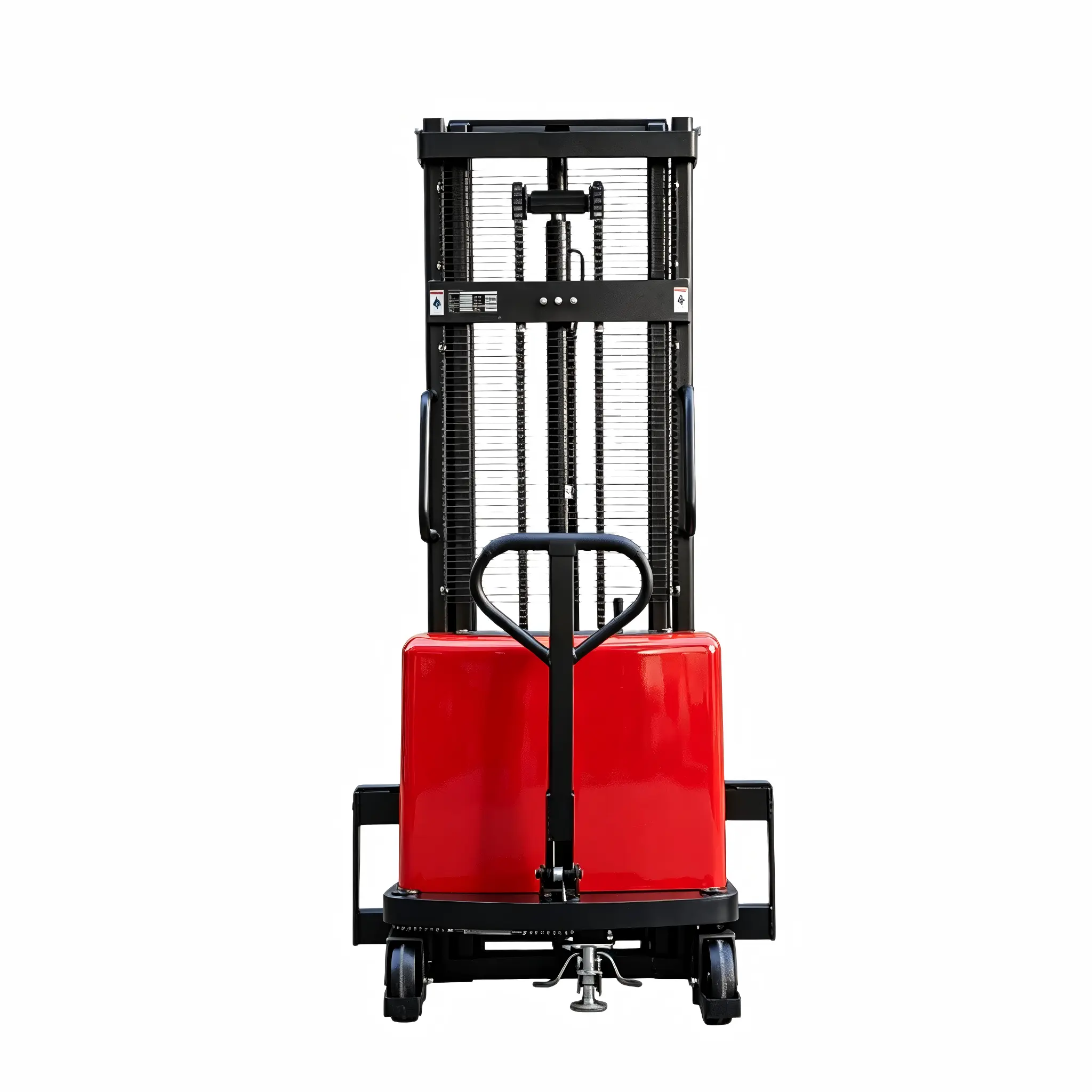

1.5T 2T Walkie Electric Pallet Stacker
● 12 Years’ Experience & 65,000 M 2 Factory;
● Europe EN Standard; ISO, CE, EU Certificates;
● Various Utility Model Patents;
● OEM/ODM Accept.
| Product Advantages
● 12 Years’ Experience & 65,000 M 2 Factory; |
Product Description
▶ We’re professional walk behind pallet stacker manufacturers and suppliers in China, to buy or wholesale walkie electric stacker from our factory. For quotation or if you have any questions, contact us now for customized walkie pallet stacker and price. |
Technical parameter
|
Characteristics |
|||||
| Model |
SBD15 |
SBD20 |
|||
| Operation |
Walkie |
||||
| Rated traction weight |
Q (kg) |
1500 |
2000 |
||
| Mast type |
|
Singel mast | 2-stage STD | Singel mast |
2-stage STD |
| Lift |
h3 (mm) |
1600 | 2000/2500/3000/3500 | 1600 |
2000/2500/3000/3500 |
|
Capacity at highest height |
(kg) | 1500 | 1500/1400/1100/800 | 2000 |
2000/1900/1500/1100 |
| Service weight with battery |
(kg) |
340 | 412/420/430/465 | 360 |
412/440/455/485 |
| Load centre |
c (mm) |
500 |
|||
| Axle centre to fork face |
x (mm) |
733 |
|||
| Wheel base |
y (mm) |
1290 |
|||
| Controller |
/ |
||||
|
Wheels |
|||||
| Wheels type |
|
Polyurethane |
|||
| Driving wheel size |
φ×w |
/ |
|||
| Bearing wheel size |
φ×w |
φ80×60 |
|||
| Additional wheels(dimensions) |
φ×w |
φ180×50 |
|||
| Wheels,number front/rear(x=driven) |
0x2/2 |
||||
|
Dimensions |
|||||
| Height of mast,lowered |
h1 (mm) |
20831583/1833/2083/2333 |
|||
| Height of mast,extended |
h4 (mm) |
20832568/3068/3568/4068 |
|||
| Fork Height,Lowered |
hl3 (mm) |
88/86 |
|||
| Overall length |
L1 (mm) |
1822 |
|||
| Length to fork face |
L2 (mm) |
672 |
|||
| Overall width |
b1/b2 (mm) |
771 |
|||
| Fork dimensions |
s/e/L (mm) |
55/165/1150 |
|||
| Width of forks |
b5 (mm) |
550/685 |
|||
| Min.Ground clearance |
m2 (mm) |
28 |
|||
| Aisle width with pallet 1000×1200 along forks |
Ast (mm) |
2460 |
|||
| Aisle width with pallet 800×1200 along forks |
Ast (mm) |
2387 |
|||
| Min.Turning radius |
Wa (mm) |
1575 |
|||
|
Performance |
|||||
| Travel spees,with/without load |
(km/h) |
/ |
|||
| Lifting speed,with/without load |
(mm/s) |
55/105 |
|||
| Lowering speed,with/without load |
(mm/s) |
controlled |
|||
| Max.gradeability laden/unladen |
(mm/s) |
/ |
|||
| Service brake |
(%) |
Mechanical brake |
|||
|
Drive and Battery |
|||||
| Drive motor,output S2 60 min. |
(kW) |
/ |
|||
| Lift motor rating at S3 15% |
(kW) |
1.6 |
|||
| Battery according to DIN 43531/35/36 A，B，C |
no |
||||
| Battery voltage/rated capacity |
(V/Ah) |
12/120 |
|||
| Battery weight (±5%) |
(kg) |
/ |
|||
|
Others |
|||||
| Noise level at operator’s sear |
(dB (A)) |
69 |
|||
| Steering type |
|
Mechanical steering |
|||
