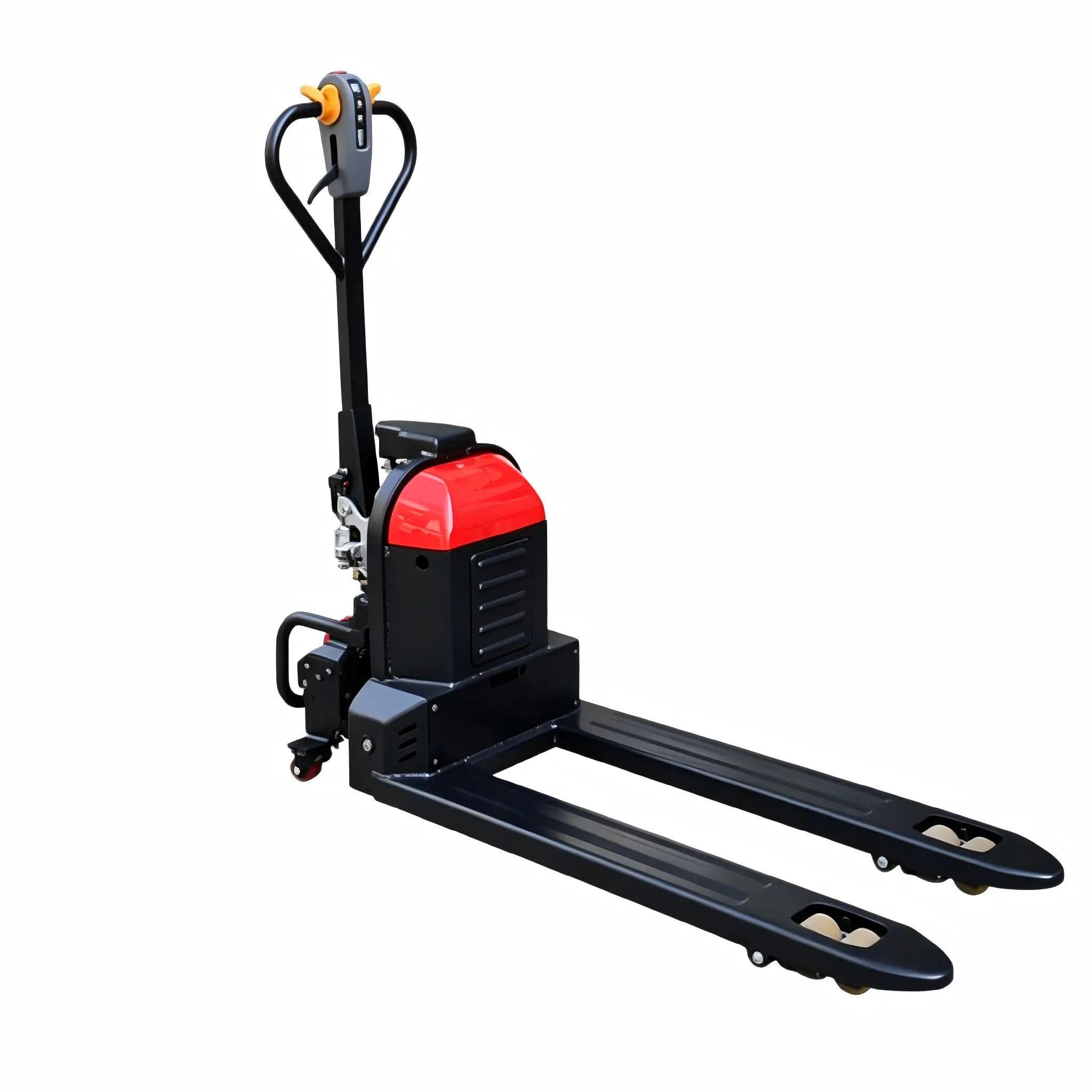

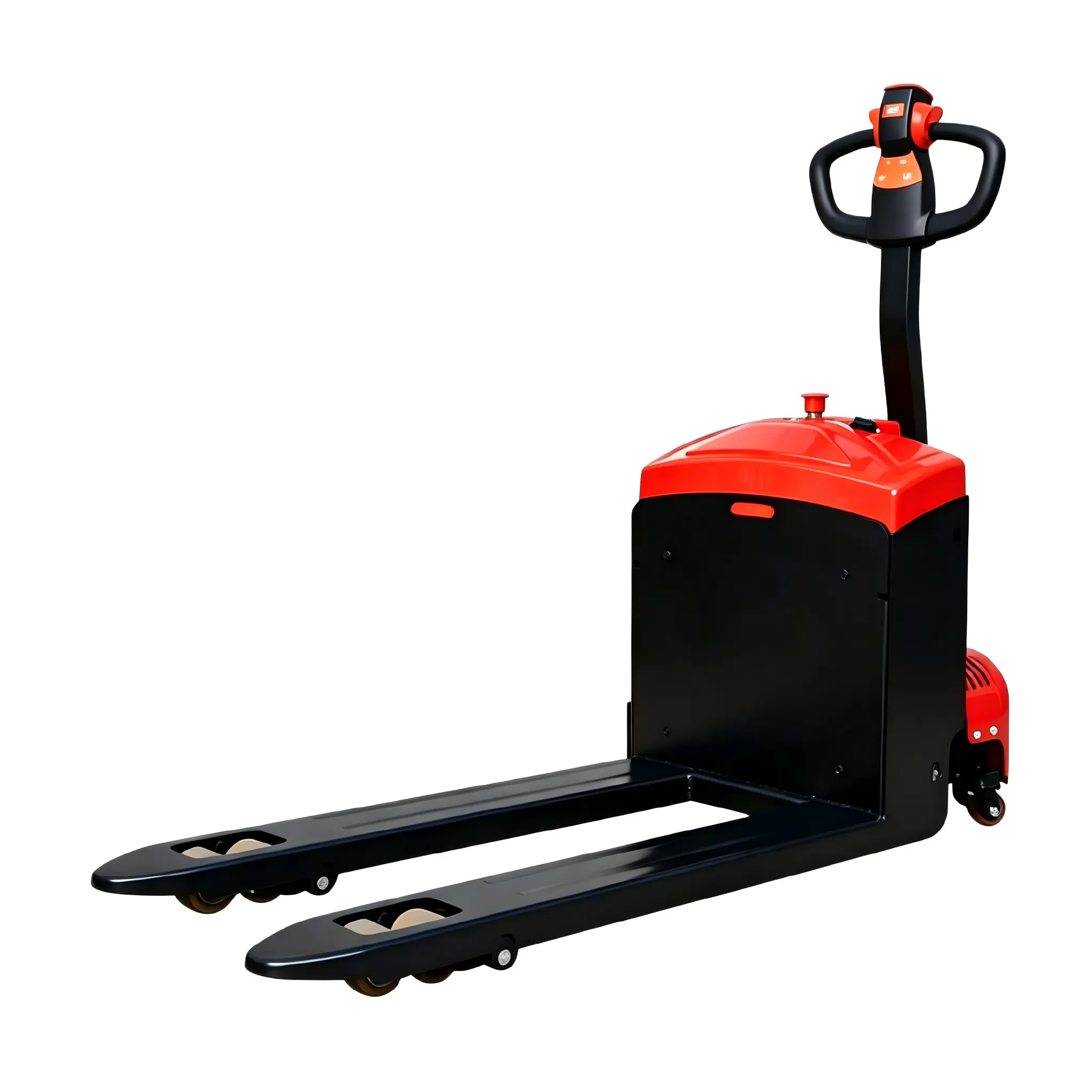

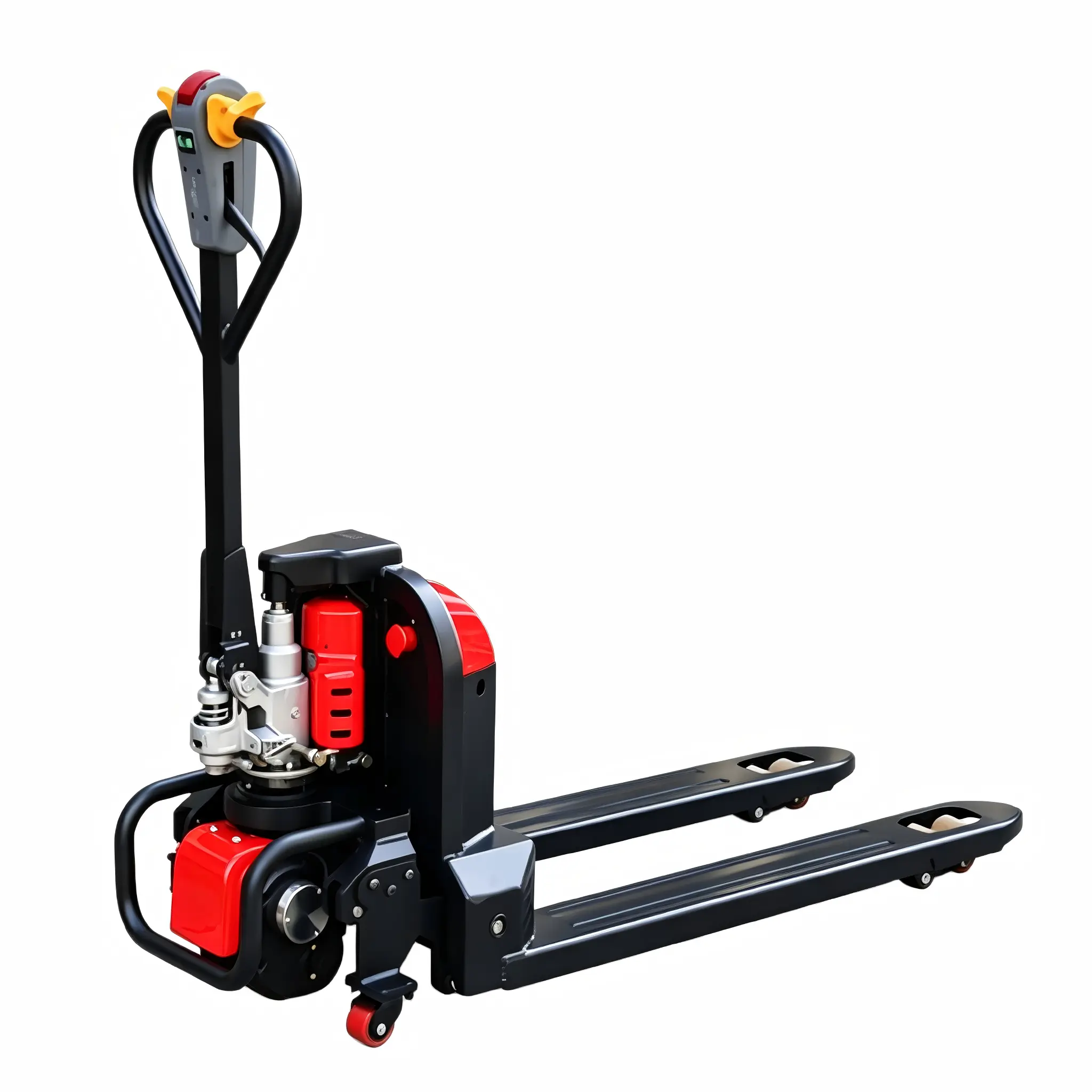

1.5T Electric Walkie Pallet Truck
▲ Compact structure;
▲ Strong carrying capacity;
▲ Strong driving force;

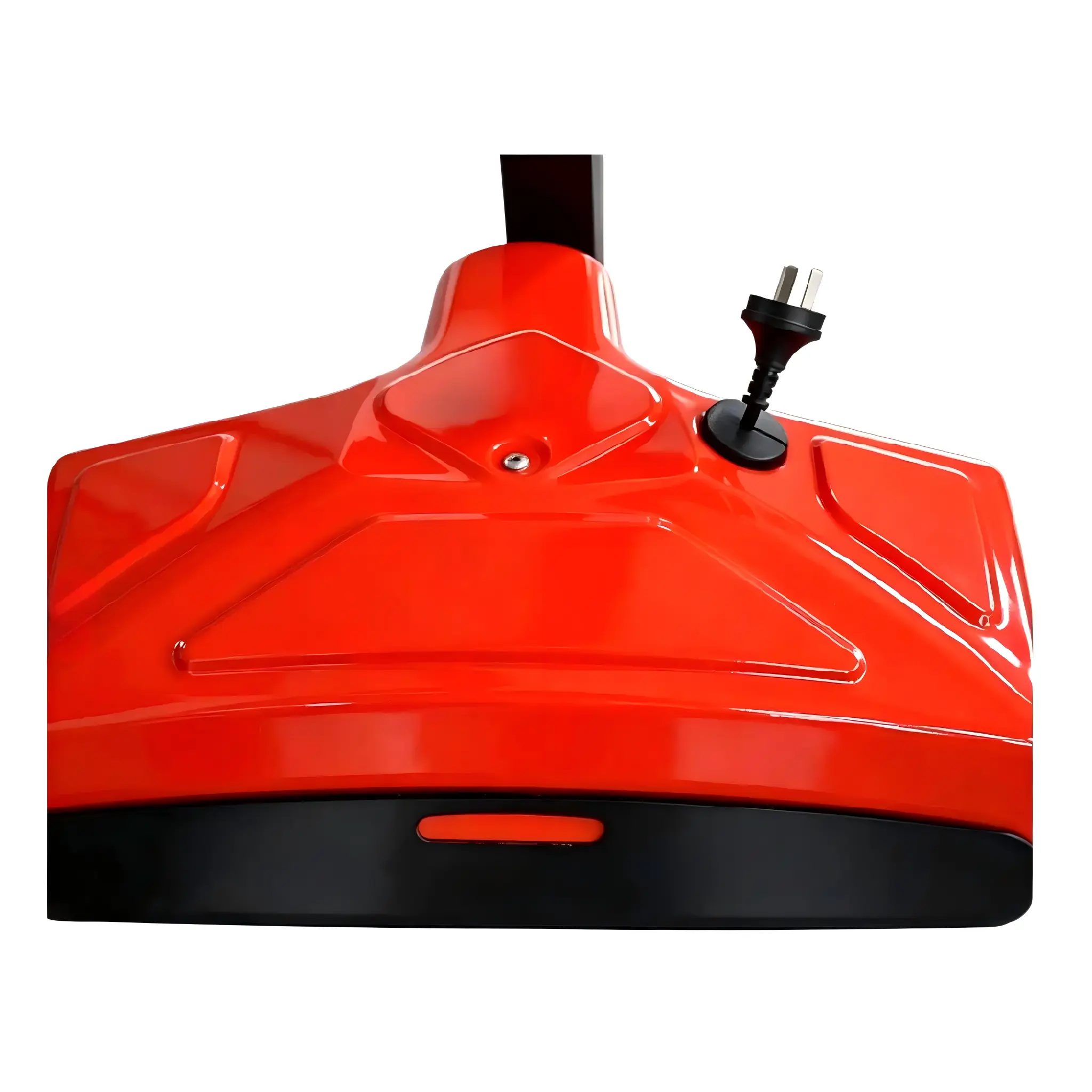

▲ Metal body shell;
▲ Fully sealed book building;
▲ 12 Years’ Experience & 65,000 M2 Factory;
▲ Various Utility Model Patents;
▲ OEM/ODM Accept.
| Product Advantages
▲ Compact structure; ▲ Strong carrying capacity; ▲ Strong driving force; ▲ Metal body shell; ▲ Fully sealed book building; ▲ 12 Years’ Experience & 65,000 M2 Factory; ▲ Various Utility Model Patents; ▲ OEM/ODM Accept. |
Product Description
▲ We’re professional walkie stacker pallet jack manufacturers and suppliers in China, to buy or wholesale walkie rider pallet truck from our factory. For quotation or if you have any questions, contact us now for customized walkie pallet truck and price.
|
Technical parameter
| Specification | ||
| Characteristics | ||
| Model | CBD15J | |
| Operation | Walkie | |
| Rated traction weight | Q (kg) | 1500 |
| Lift | h3 (mm) | 205 |
| Service weight with battery | kg | |
| Load centre | c (mm) | 600 |
| Axle centre to fork face | x (mm) | 944 |
| Wheel base | y (mm) | 1261 |
| Wheels | ||
| Wheels type | Polyurethane | |
| Driving wheel size | ø×w | φ210×75 |
| Bearing wheel size | ø×w | φ80×60 |
| Wheels,number front/rear(x=driven) | 1x, 4 | |
| Dimensions | ||
| Fork Height,Lowered | h13 (mm) | 85 |
| Overall length | L1 (mm) | 1650 |
| Length to fork face | L2 (mm) | 500 |
| Overall width | b1/b2 (mm) | 685 |

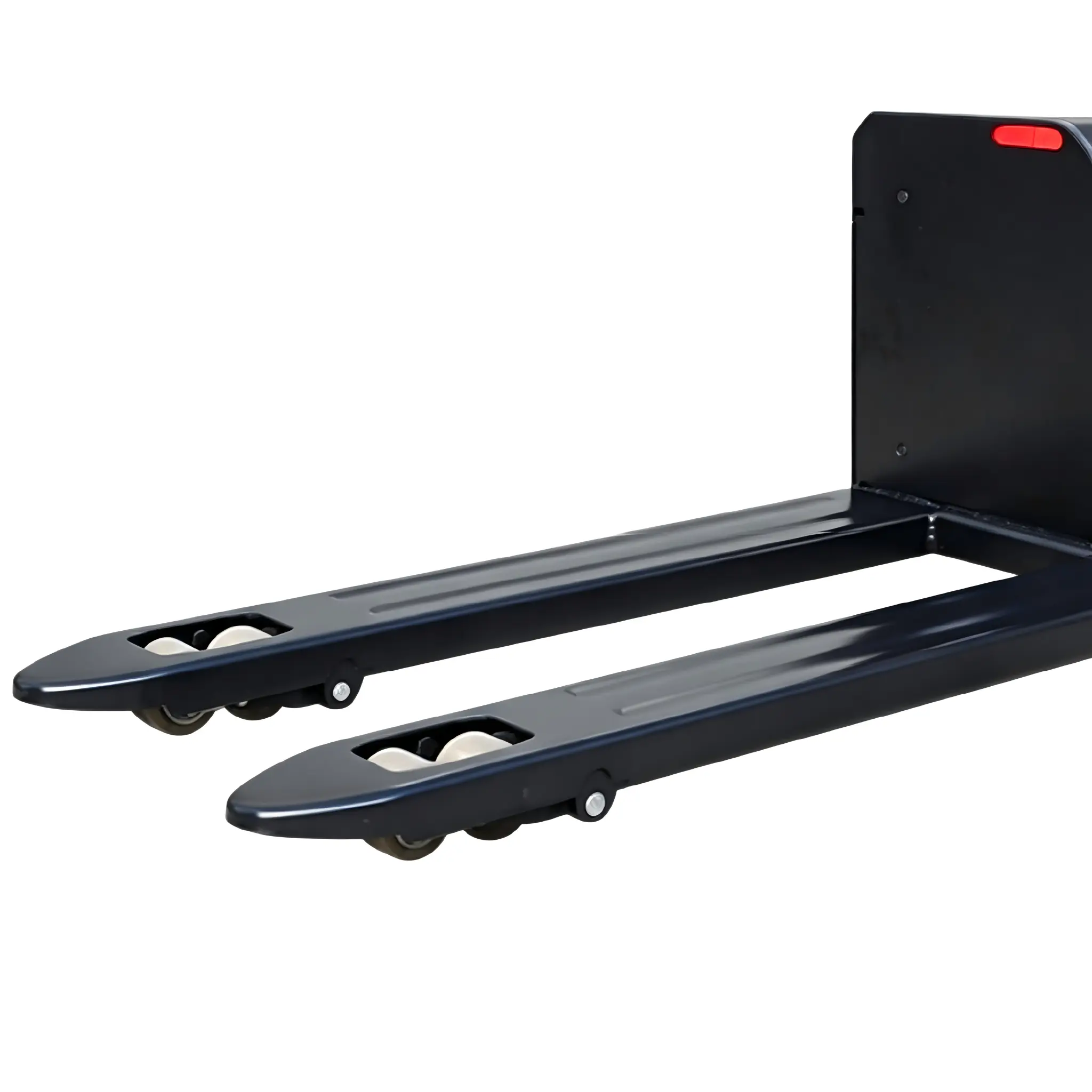

| Fork dimensions | s/e/L (mm) | 50/150/1150 |
| Width of forks | b5 (mm) | 550/685 |
| Min.Ground clearance | m2 (mm) | 35 |
| Aisle width with pallet 1000×1200 along forks | Ast (mm) | 2224 |
| Aisle width with pallet 800×1200 along forks | Ast (mm) | 2137 |
| Min.Turning radius | Wa (mm) | 1462 |
| Performance | ||
| Travel spees,with/without load | (km/h) | 4/4.5 |
| Lifting speed,with/without load | (mm/s) | 20/30 |
| Lowering speed,with/without load | (mm/s) | 40/30 |
| Max.gradeability laden/unladen | (mm/s) | 5/16 |
| Service brake | (%) | Electromagnetic brake |
| Drive and Battery | ||
| Drive motor,output S2 60 min. | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery according to DIN 43531/35/36 A, B, C | no | |
| Battery voltage/rated capacity | (V/Ah) | 24/65 |
| Battery weight (±5%) | (kg) | 24×2 |
| Others | ||
| Noise level at operator ‘sear | (dB (A)) | 69 |
