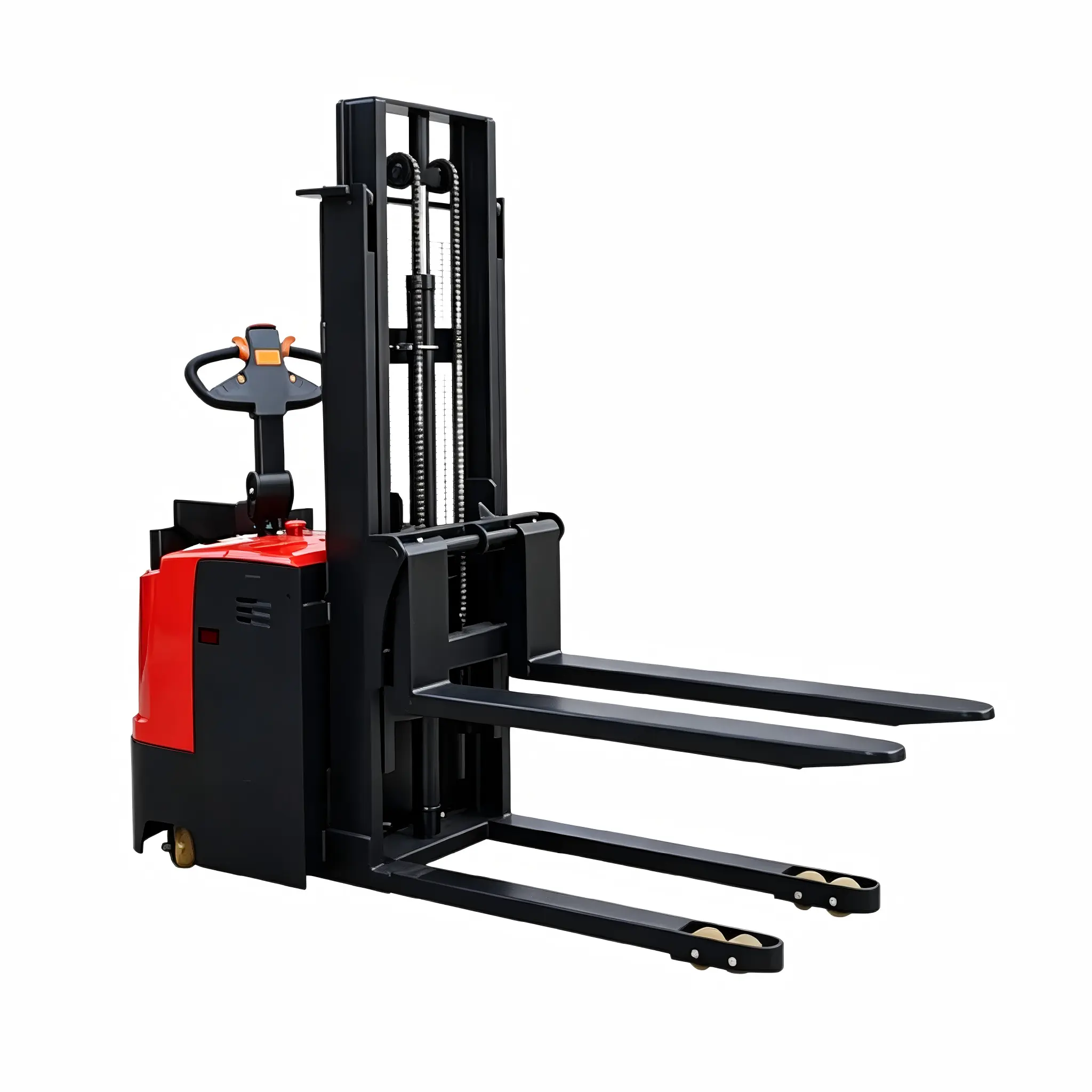

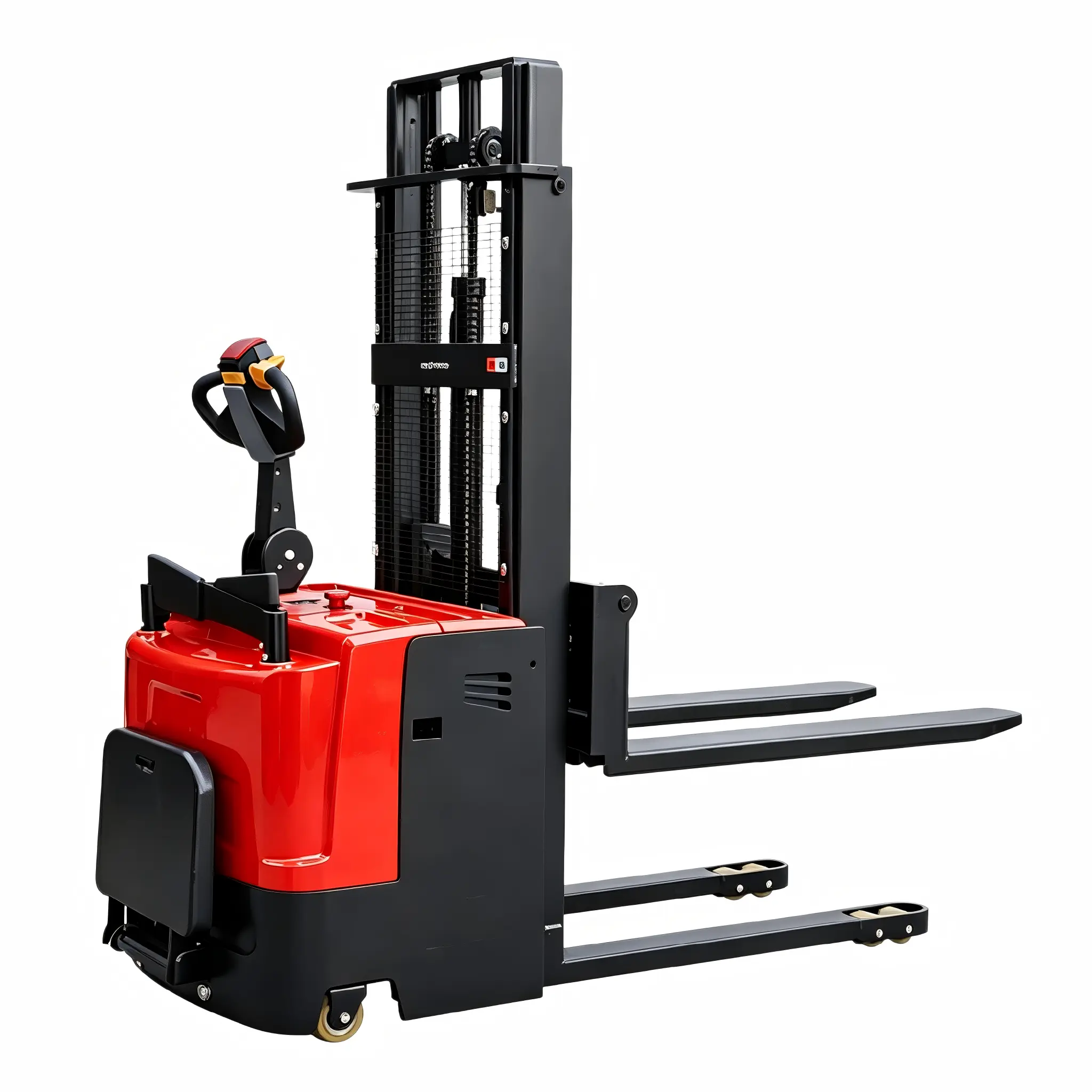

1.5T Ride On Pallet Stacker
● Foldable Pedal Design;
● 2.5m Lossless Lifting;
● Triple Safety Shield;
● Smart Lifting Control;
● Integrated Charging System;
● 12 Years’ Expertise & 65,000 ㎡ Factory;
● Europe EN Standard; ISO, CE, EU Certificates;
● Various Utility Model Patents;
● OEM/ODM Accept.
| Product Description
▲ We’re professional Ride on Pallet Stacker 1.5 ton manufacturers and suppliers in China, to buy or wholesale stand on pallet stacker from our factory. For quotation or if you have any questions, contact us now for customized electric stacker 1.5 ton and price. ▲ Find your new Ride on Pallet Stacker. Solve heavy lifting tasks in a fast, efficient and safe way. |
|
| Product Advantages
▲ When the pedal is folded, low – speed operation can be carried out in a relatively small space. ▲ It can lift up to 2.5m without load loss or tipping over. ▲ The fixed wire – mesh cover on the mast separates people from goods, safeguarding the safety of operators. ▲ The hydraulic system is designed with explosion – proof features. Even if the oil pipe bursts, the mast will not drop rapidly. The emergency reverse driving function protects operators from potential harm. ▲ With a built – in charger, charging is simple and convenient. ▲ The double – chain structure ensures more stable lifting. ▲ When the forks rise to a certain height, the slow – speed mode will be automatically activated. |
Standard Configuration
▲ 100×50 solid plate outriggers ▲ 1.5kW drive motor. ▲ 2.2kW pump unit. ▲ 24V 120Ah maintenance – free battery
Optional Configuration ▲ Curtis controller. ▲ 100/150/200Ah lithium – ion batteries ▲ 210/240Ah lead-acid batteries. |
Technical Parameters
|
Specification |
|||||
|
Characteristics |
|||||
|
Model |
CDD15D | CDD20D | |||
| Operation |
Standed Pallet Stacker |
||||
|
Rated traction weight |
Q (kg) | 1500 | 2000 | ||
| Mast type | Singel mast | 2-stage | Singel mast |
2-stage |
|
|
Lift |
h3 (mm) | 1600 | 2000/2500/3000/3500 | 1600 | 2000/2500/3000/3500 |
| Capacity at highest height | kg | 1500 | 1500/1400/1100/800 | 2000 |
2000/1900/1500/1100 |
|
Service weight with battery |
kg | 630 | 690/720/745/770 | 705 | 750/775/800/825 |
| Load centre | c (mm) |
500 |
|||
|
Axle centre to fork face |
x (mm) | 764 | |||
| Wheel base | y (mm) |
1457 |
|||
|
Controller |
LVM24S20 (QEXPAND) | ||||
|
wheel |
|||||
|
Wheels type |
Polyurethane | ||||
| Driving wheel size | ø×w |
φ250×80 |
|||
|
Bearing wheel size |
ø×w | φ80×60 | |||
| Additional wheels(dimensions) | ø×w |
φ115×55 |
|||
|
Wheels,number front/rear(x=driven) |
1x, 2/4 | ||||
|
Dimensions |
|||||
|
Height of mast,lowered |
h1 (mm) | 2080 | 1580/1830/1980/2330 | 2080 | 1580/1830/1980/2330 |
| Height of mast,extended | h4 (mm) | 2080 | 2568/3068/3483/4068 | 2080 |
2568/3068/3483/4068 |
|
Fork Height,Lowered |
h13 (mm) | 88/86 | |||
| Overall length | L1 (mm) |
2125 |
|||
|
Length to fork face |
L2 (mm) | 975 | |||
| Overall width | b1/b2 (mm) |
850 |
|||
|
Fork dimensions |
s/e/L (mm) | 55/165/1150 | |||
| Width of forks | b5 (mm) |
550/685 |
|||
|
Min.Ground clearance |
m2 (mm) | 30 | |||
| Aisle width with pallet 1000×1200 along forks | Ast (mm) |
2608 |
|||
|
Aisle width with pallet 800×1200 along forks |
Ast (mm) | 2536 | |||
| Min.Turning radius | Wa (mm) |
1744 |
|||
|
Performance |
|||||
| Travel spees,with/without load | (km/h) |
5.5/5.8 |
|||
|
Lifting speed,with/without load |
(mm/s) | 100/155 | 75/125 | ||
| Lowering speed,with/without load | (mm/s) | 100/110 |
95/100 |
||
|
Max.gradeability laden/unladen |
(mm/s) |
5/8 |
|||
|
Service brake |
(%) | Electromagnetic brake | |||
|
Drive and Battery |
|||||
|
Drive motor,output S2 60 min. |
(kW) | 1.5 | |||
| Lift motor rating at S3 15% | (kW) |
2.2 |
|||
|
Battery according to DIN 43531/35/36 A, B, C |
no | ||||
| Battery voltage/rated capacity | (V/Ah) |
24/120 |
|||
|
Battery weight (±5%) |
(kg) | 35×2 | |||
|
Others |
|||||
|
Noise level at operator ‘sear |
(dB (A)) | 69 | |||
| Steering type |
Mechanical steering |
||||
