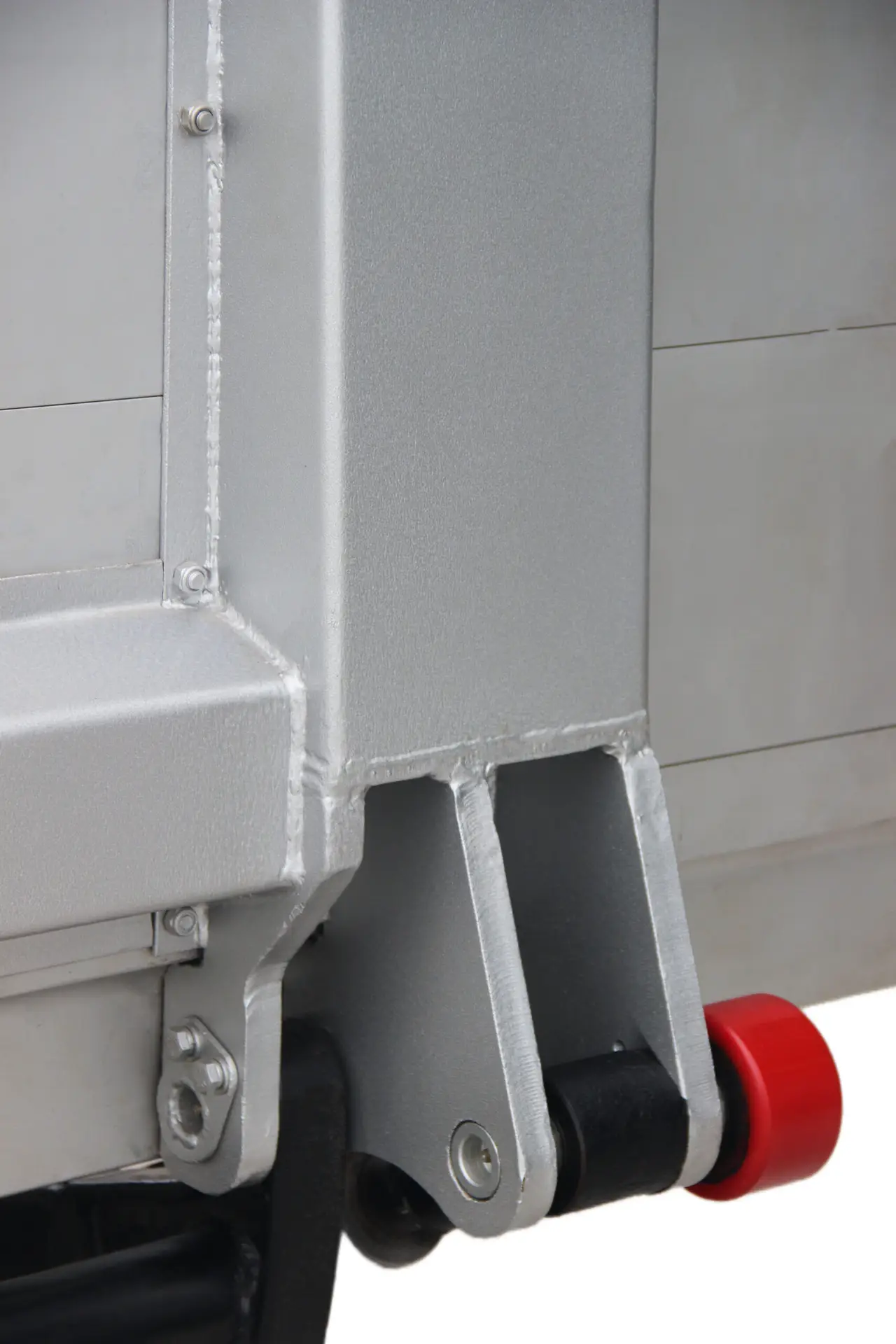

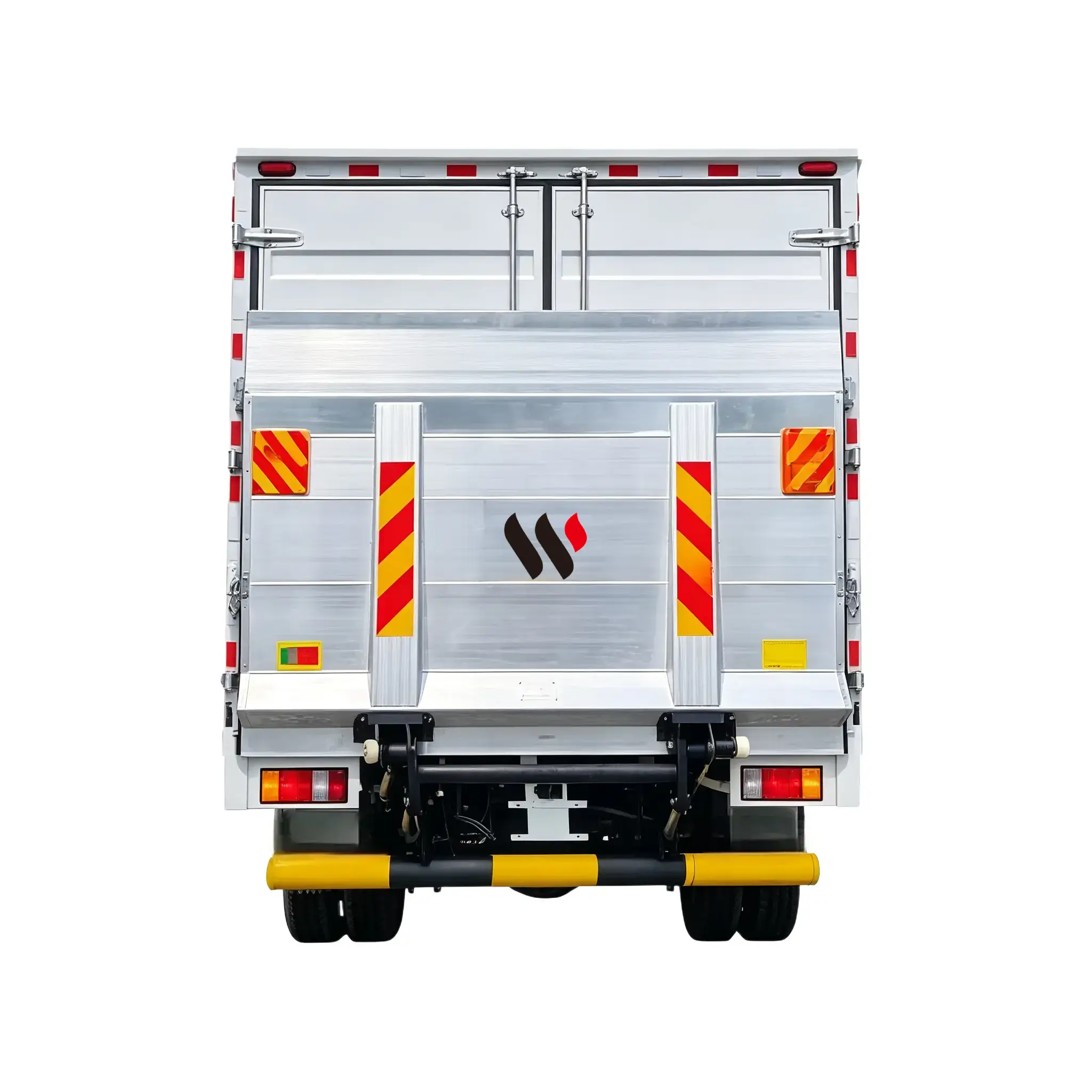

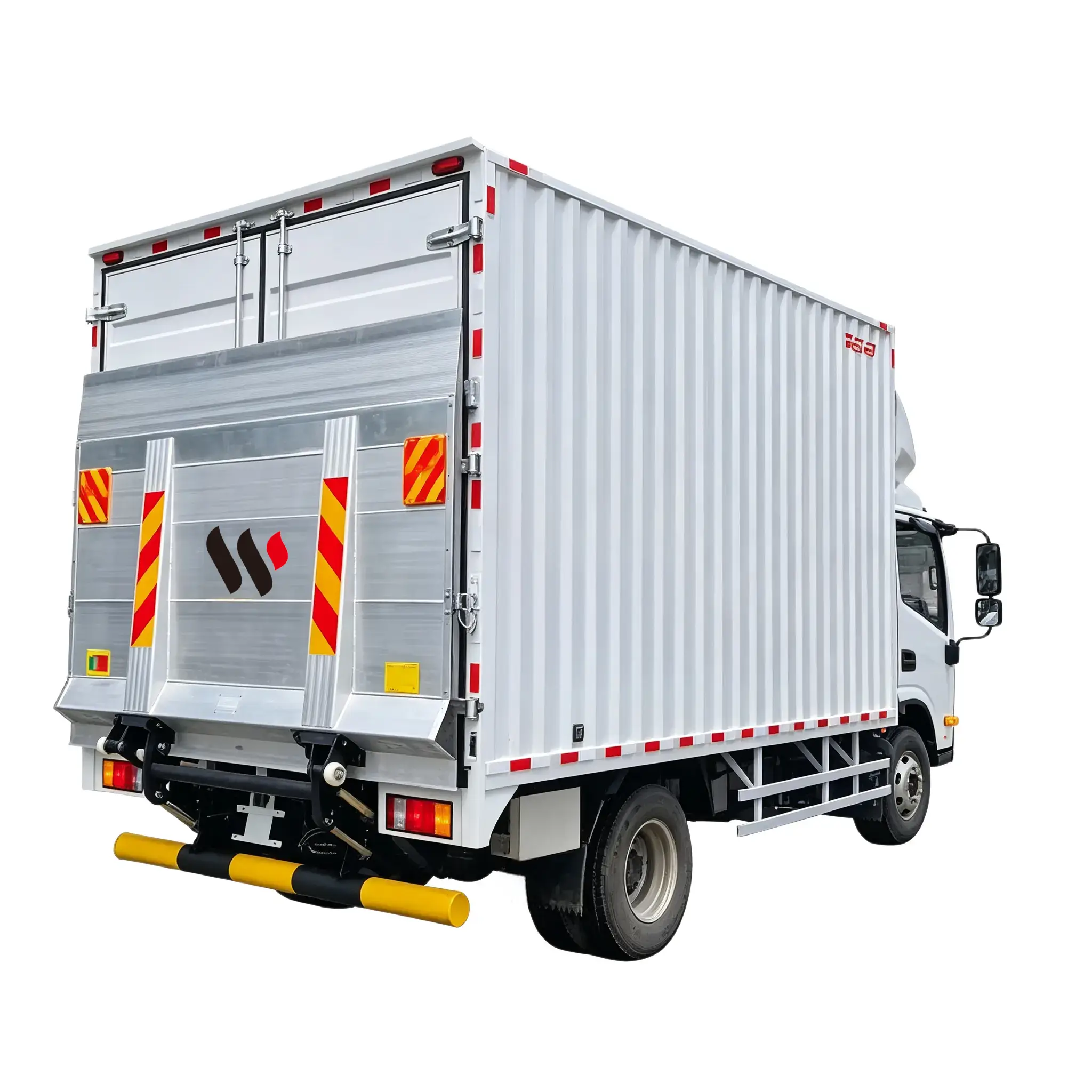

Aluminum Tail lift
Fast: goods can be easily transferred between the ground and the carriage by controlling the lifting and lowering of the tailboard through the operation button.
Product Description
1. Fast: goods can be easily transferred between the ground and the carriage by controlling the lifting and lowering of the tailboard through the operation button.
2. Safety: The use of tailgate can make the loading and unloading of goods easier without manpower, improve the safety of operators, and reduce the damage rate of goods during loading and unloading, especially flammable, explosive and fragile goods, which is more suitable for tailgate loading and unloading.
3. High efficiency: loading and unloading can be completed by one person without restriction of site and personnel. It can effectively save resources, improve work efficiency and give full play to the economic benefits of vehicles.
specification
| Model | QWA 1.0 | QWA 1.5 | QWA 2.0 | QWA 2.5 | Remark |
| Platform Size (mm) | 1700×1600 | 1800×1600 | 2000×1800 | 2300×1800 | It can be made
according to the customer’s demands. |
| 1800×1600 | 1800×1700 | 2100×1800 | 2400×1800 | ||
| 1800×1700 | 1900×1700 | 2200×1800 | 2500×1800 | ||
| 1900×1700 | It can be made according the width ofdifferent vehicle | ||||
| Capacity (kg) | 1000 | 1500 | 2000 | 2500 | 1 |
| Self Weight (kg) | 350 | 450 | 500 | 550 | 1 |
| Motor Power (kW) | 1.6 | 1.6 / 2.2 / 2.5 | 2.2 / 2.5 | 3 | 1 |
| Motor | DC12V-24V/100AH-160AH | 1 | |||
| Frame Arm Length (mm) | 750 | 750 / 900 | 900 | 900 | 1 |
| Frame Inner Width (mm) | 846 / 948 | 846 / 948 | 948 | 948 | 1 |
| Height From Vehicle Box to Ground (mm) | 700-1050 | 700-1550 | 1050-1550 | 1050-1550 | 1 |
| Average Lifting Speed (mm/sec) | 60-80 | Speed can be controlled | |||
| Hydraulic Oil | 46# Hydraulic Oil | 1 | |||
| Platform Working Angle | 5°-9° | 5°-9° | 5°-9° | 5°-9° | 1 |
