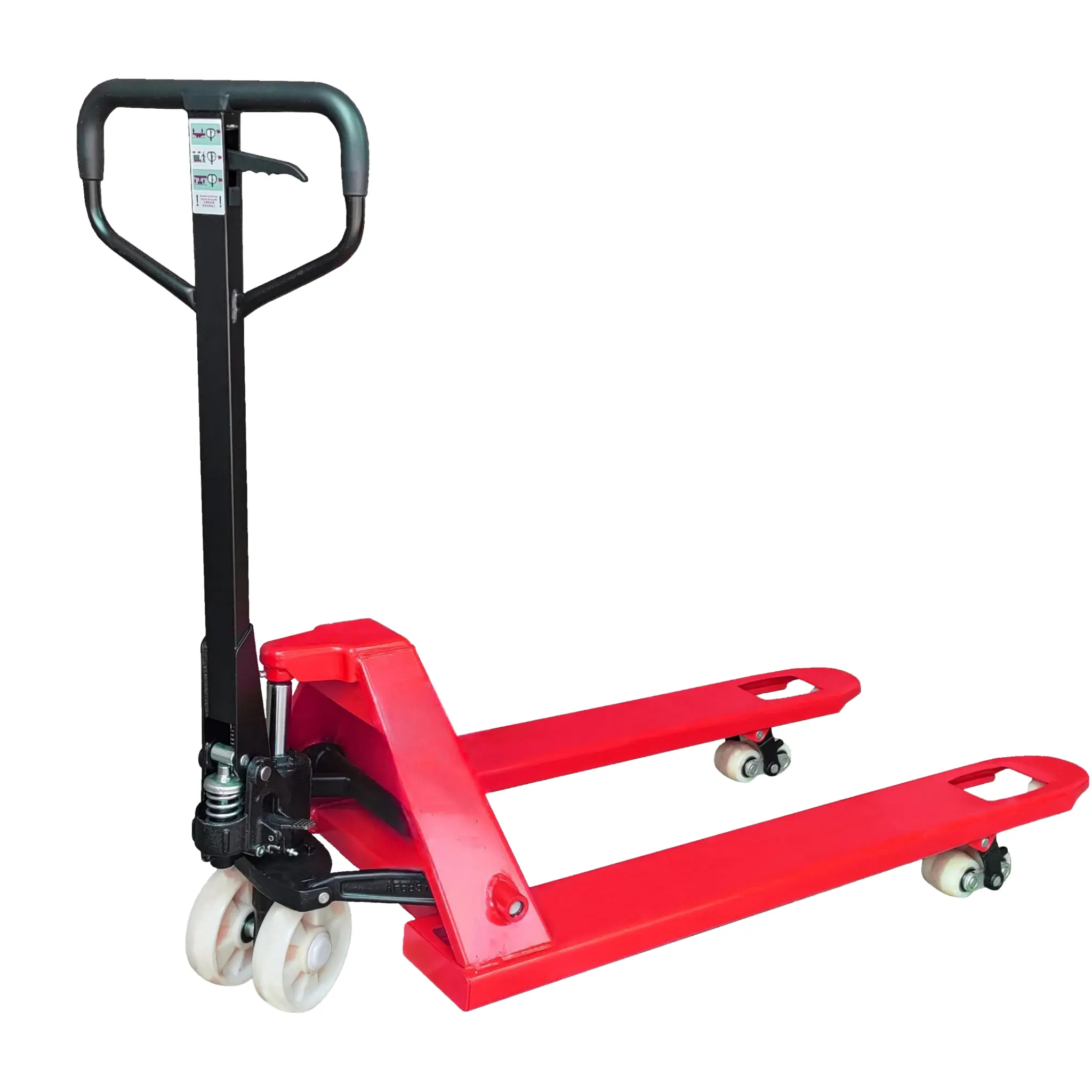

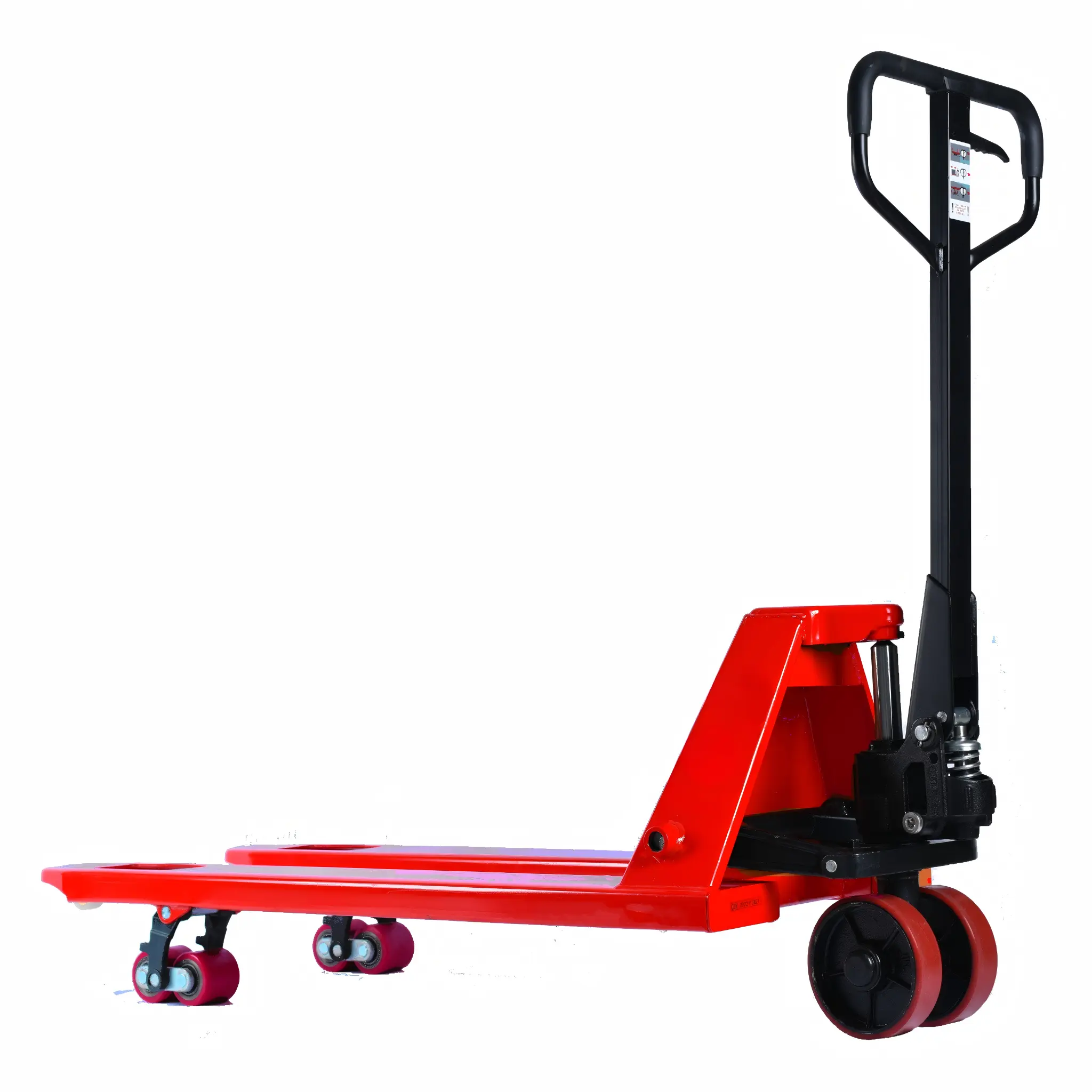

CBY-BF

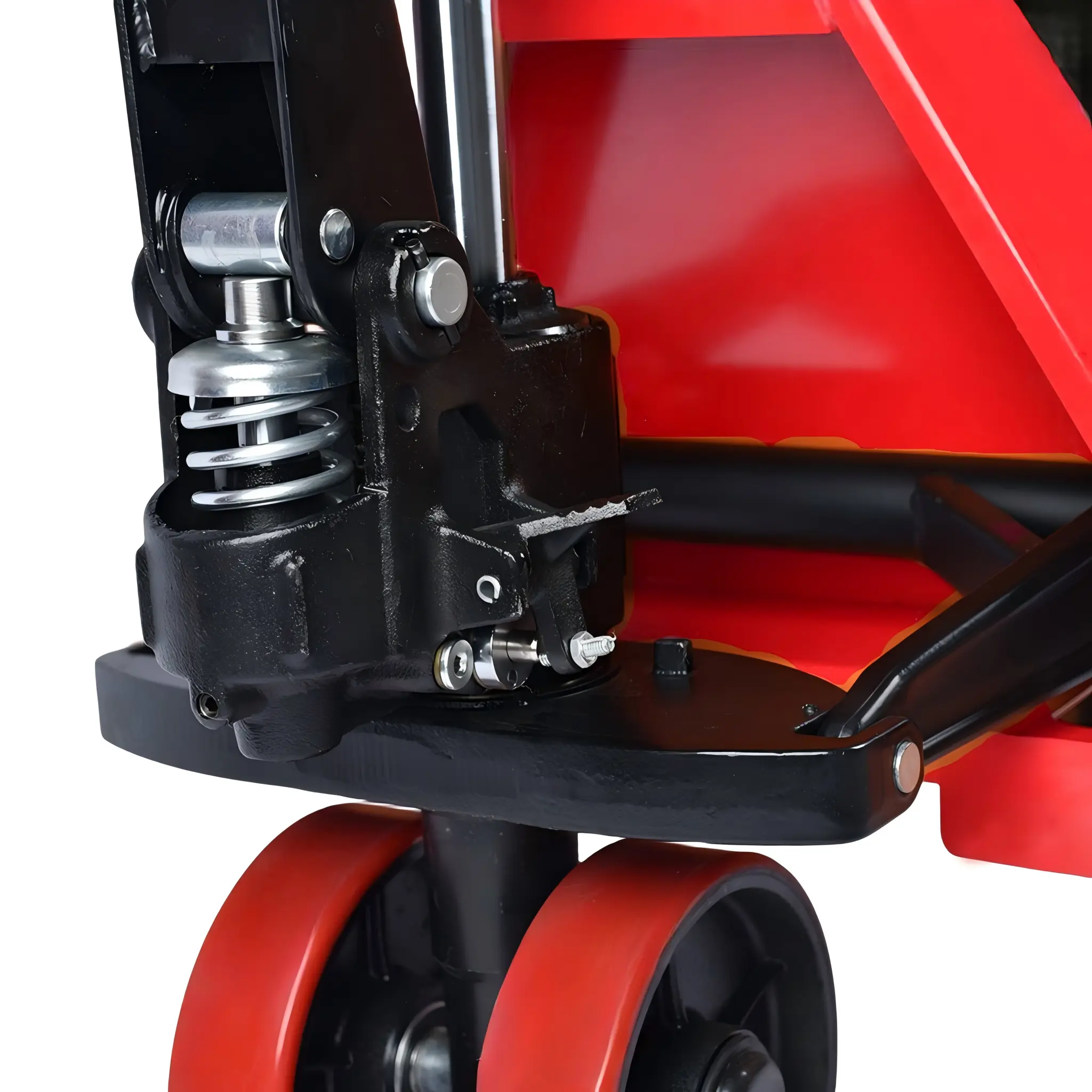

- The hydraulic hand pallet truck is a small, convenient, flexible, heavy and durable cargo handling tool. In addition to the function of consigning goods, in order to facilitate the lifting and landing of goods, there is a hydraulic device between the chassis and the wheel, which can easily push the vehicle under the base of the cargo box, and then use hydraulic pressure to lift the chassis, lift the goods, and then drag the goods to move. After arriving at the destination, use hydraulic pressure to lower the chassis, and the goods will also land, so that the truck can be easily pulled out.
Product Description
- The hydraulic hand pallet truck is a small, convenient, flexible, heavy and durable cargo handling tool. In addition to the function of consigning goods, in order to facilitate the lifting and landing of goods, there is a hydraulic device between the chassis and the wheel, which can easily push the vehicle under the base of the cargo box, and then use hydraulic pressure to lift the chassis, lift the goods, and then drag the goods to move. After arriving at the destination, use hydraulic pressure to lower the chassis, and the goods will also land, so that the truck can be easily pulled out.
Specification
| Model | CBY-BF 2.0 | CBY-BF 2.5 | CBY-BF 3.0 |
| Capacity(kg) | 2000 | 2500 | 3000 |
| Max.height(mm) | 185/195 | 185/195 | 185/195 |
| Min.height(mm) | 75/85 | 75/85 | 75/85 |
| Fork length(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| Single fork width(mm) | 160 | 160 | 160 |
| Width overall forks(mm) | 550/685 | 550/685 | 550/685 |

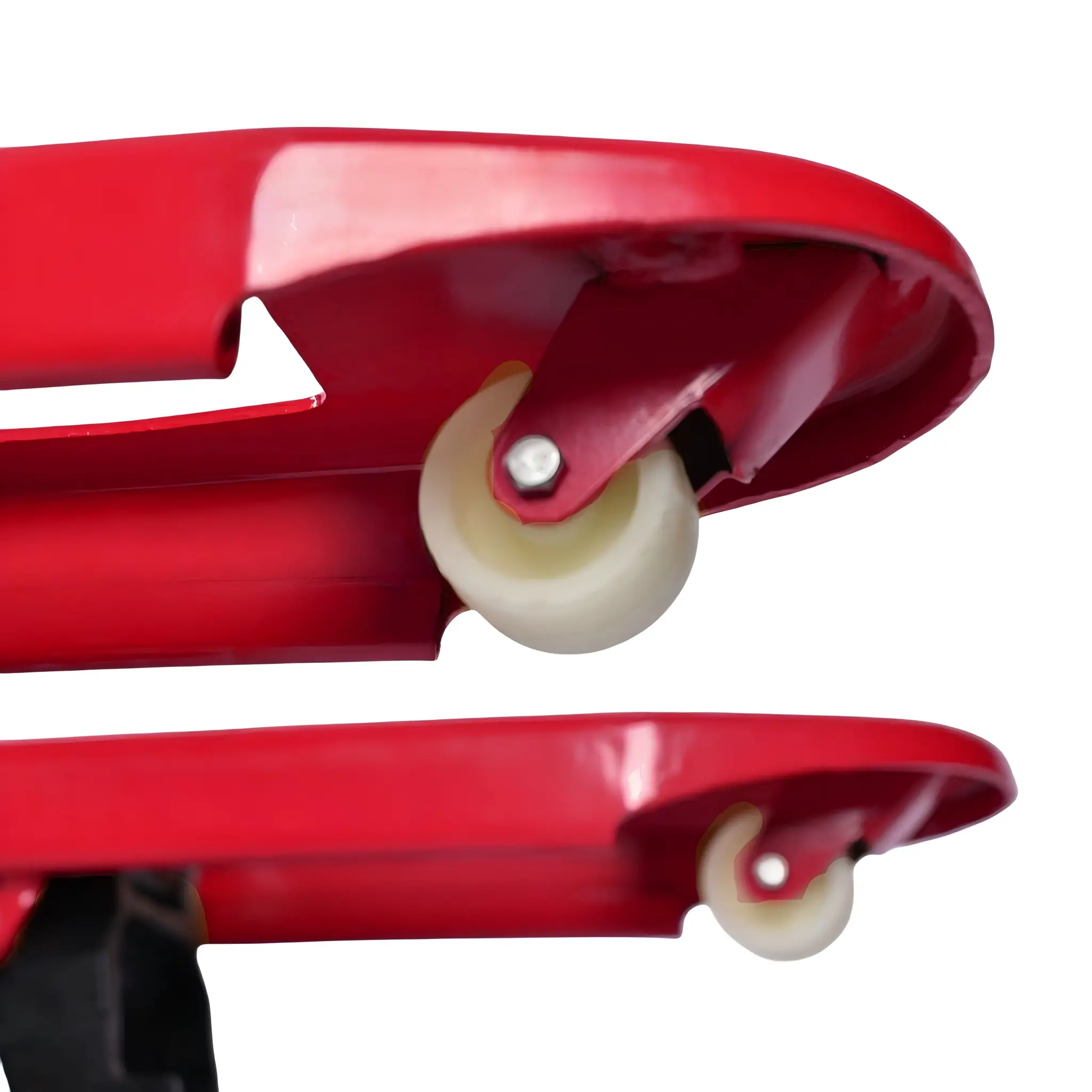

| Front wheel-single(mm) | 74×93/80×93 | 74×93/80×93 | 74×93/80×93 |

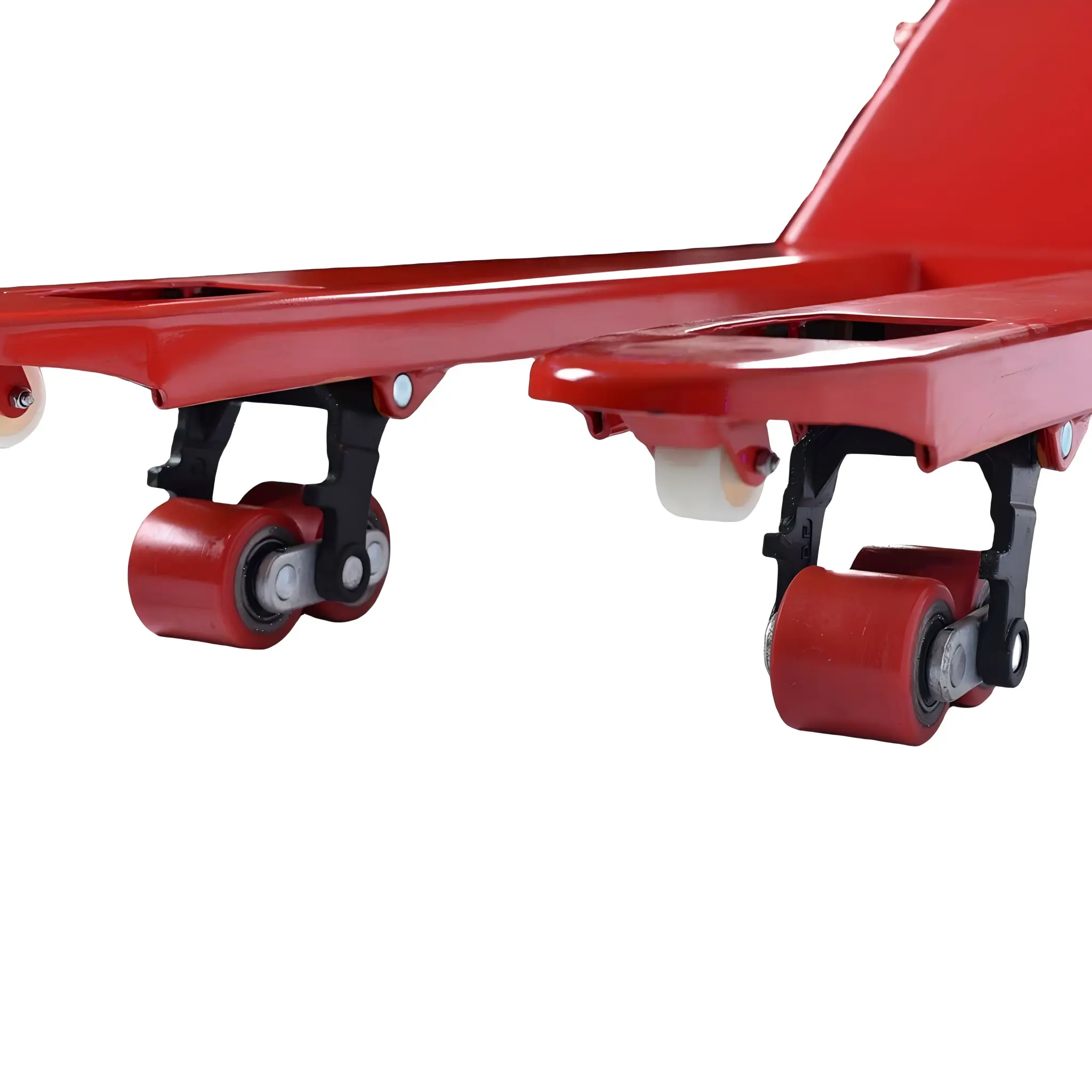

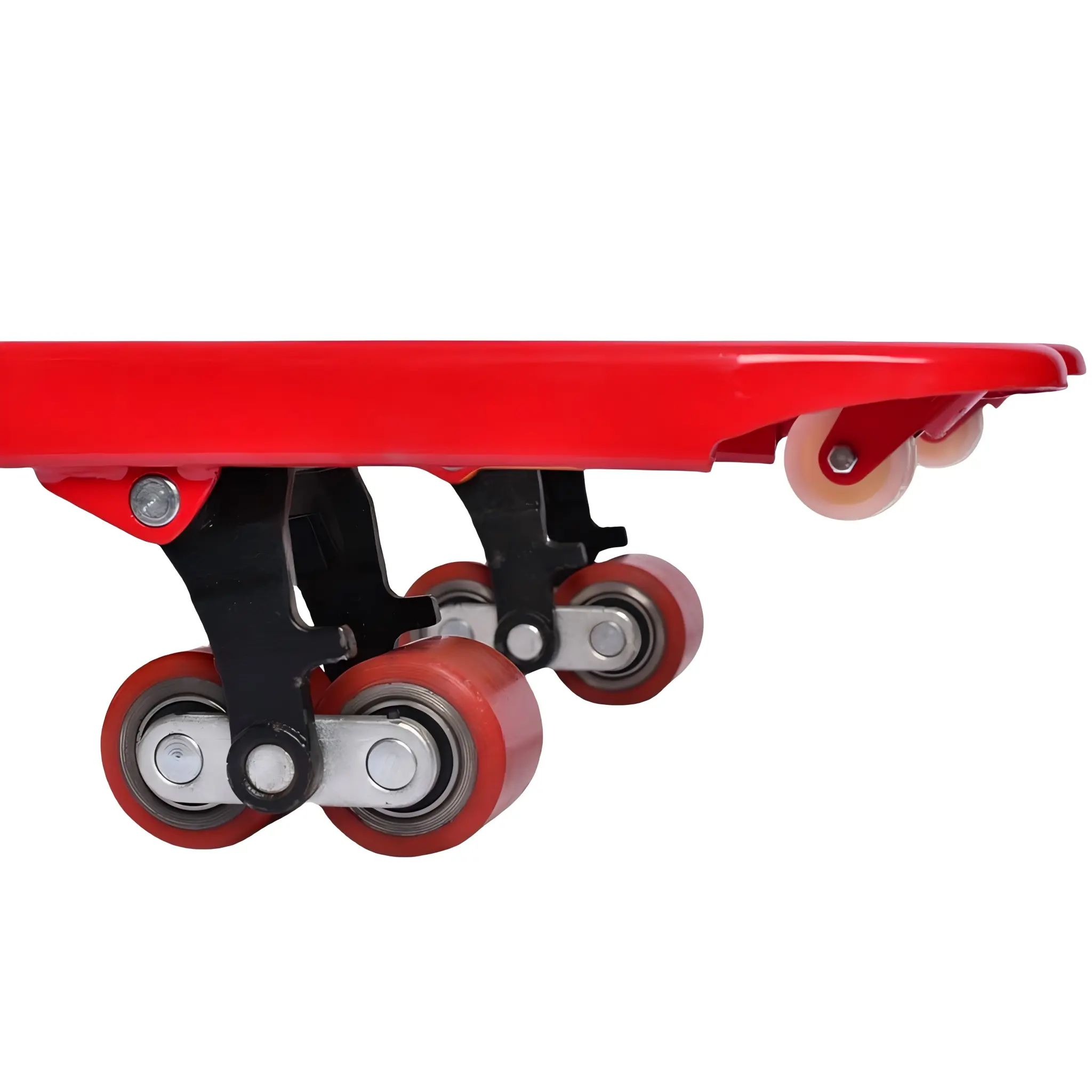

| Front Wheel-tandem(mm) | 74×70/80×70 | 74×70/80×70 | 74×70/80×70 |

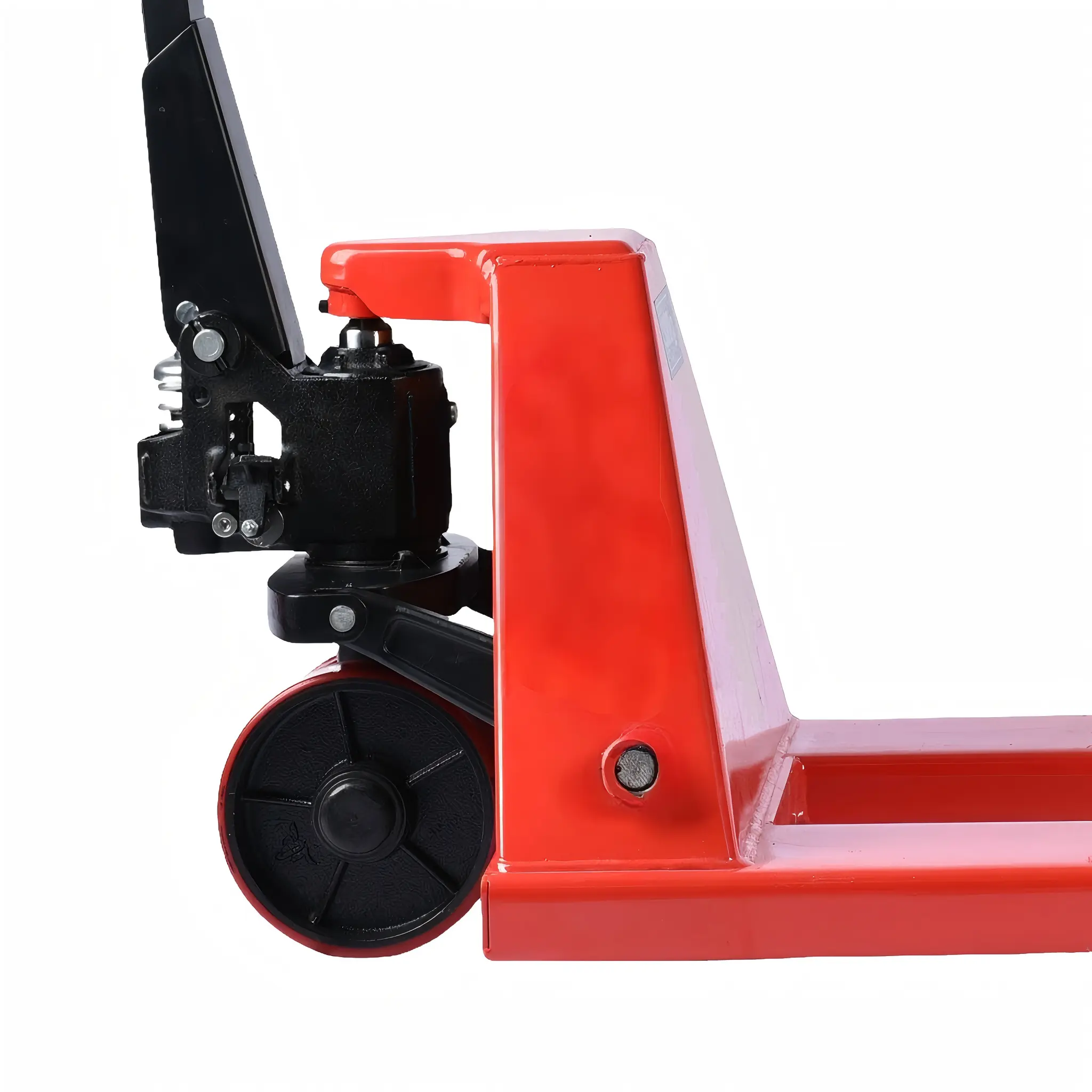

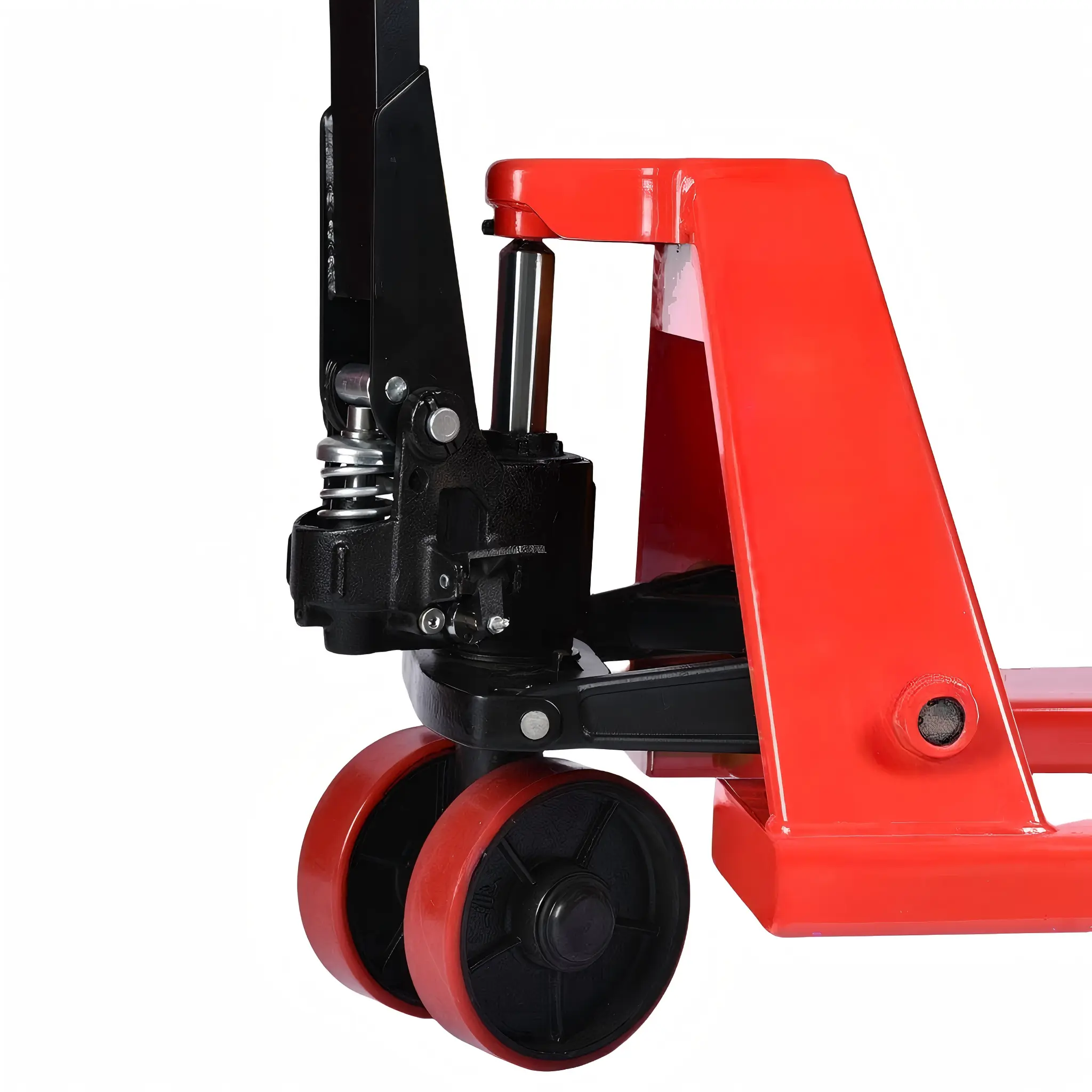

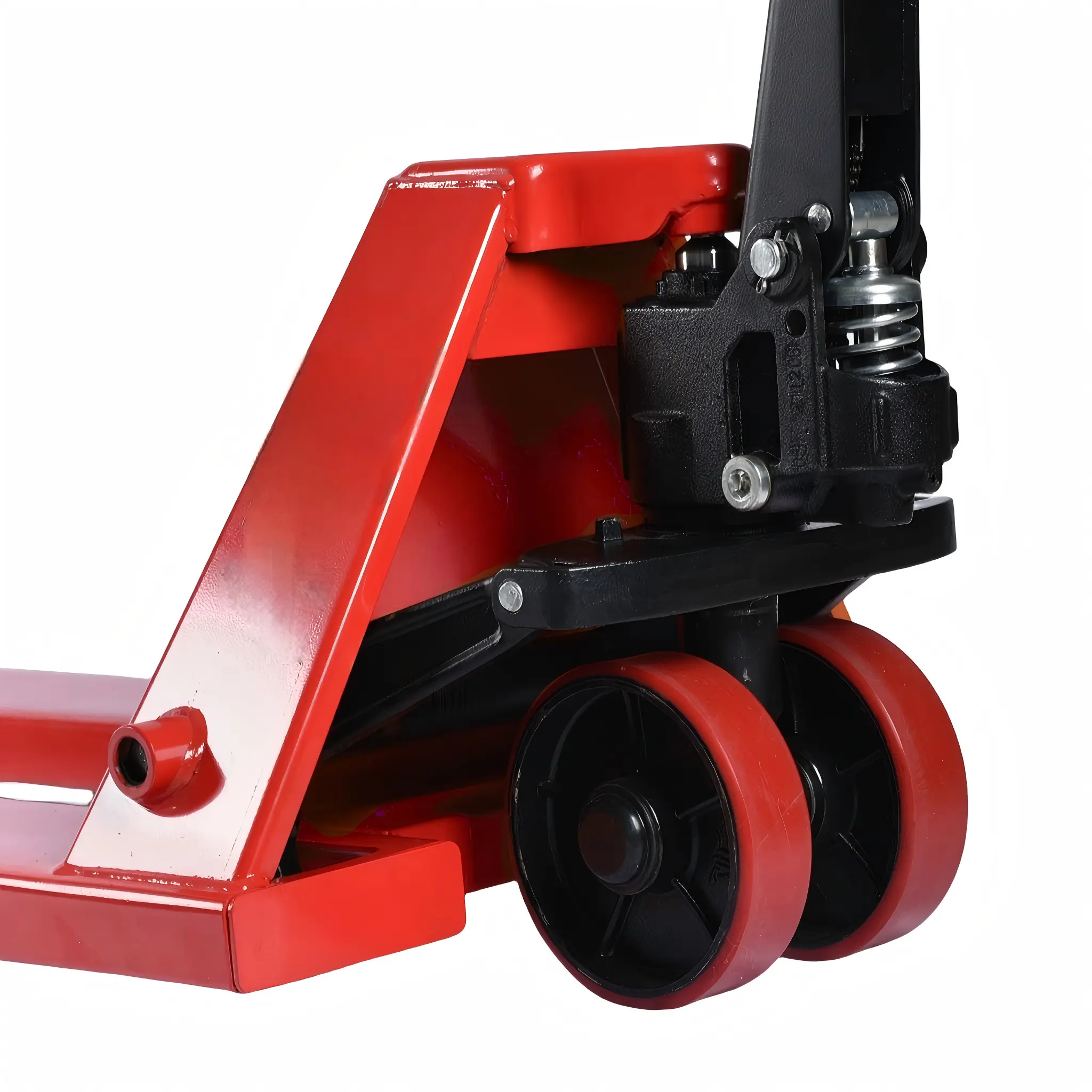

| Steering wheel(mm) | 180×50 | 180×50 | 180×50 |
| Lifting height(mm) | 110 | 110 | 110 |
| Self weight(kg) | 63-76 | 63-76 | 63-76 |
