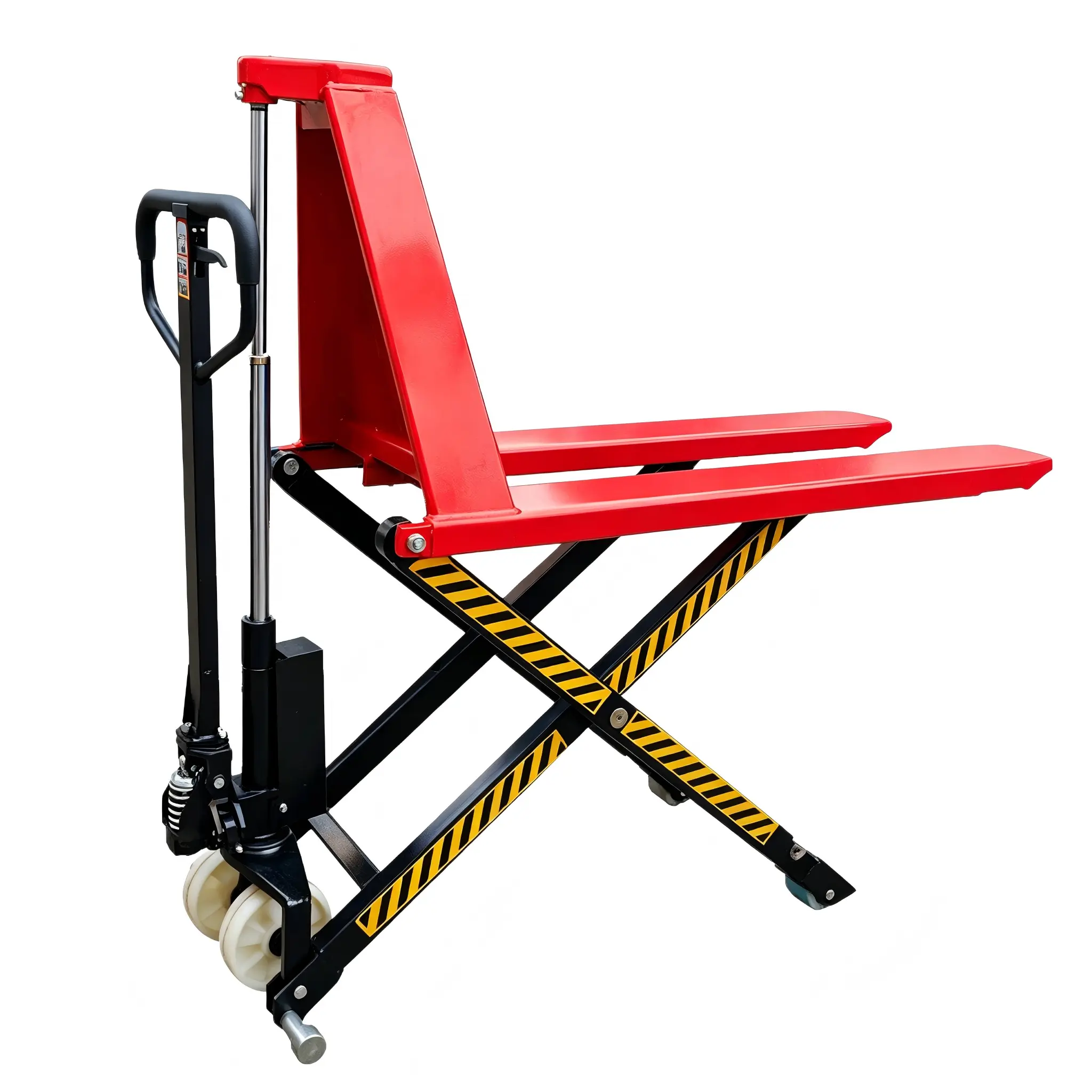

CBY-HL
- Quick-lift Operation Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
- Improved safety Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.

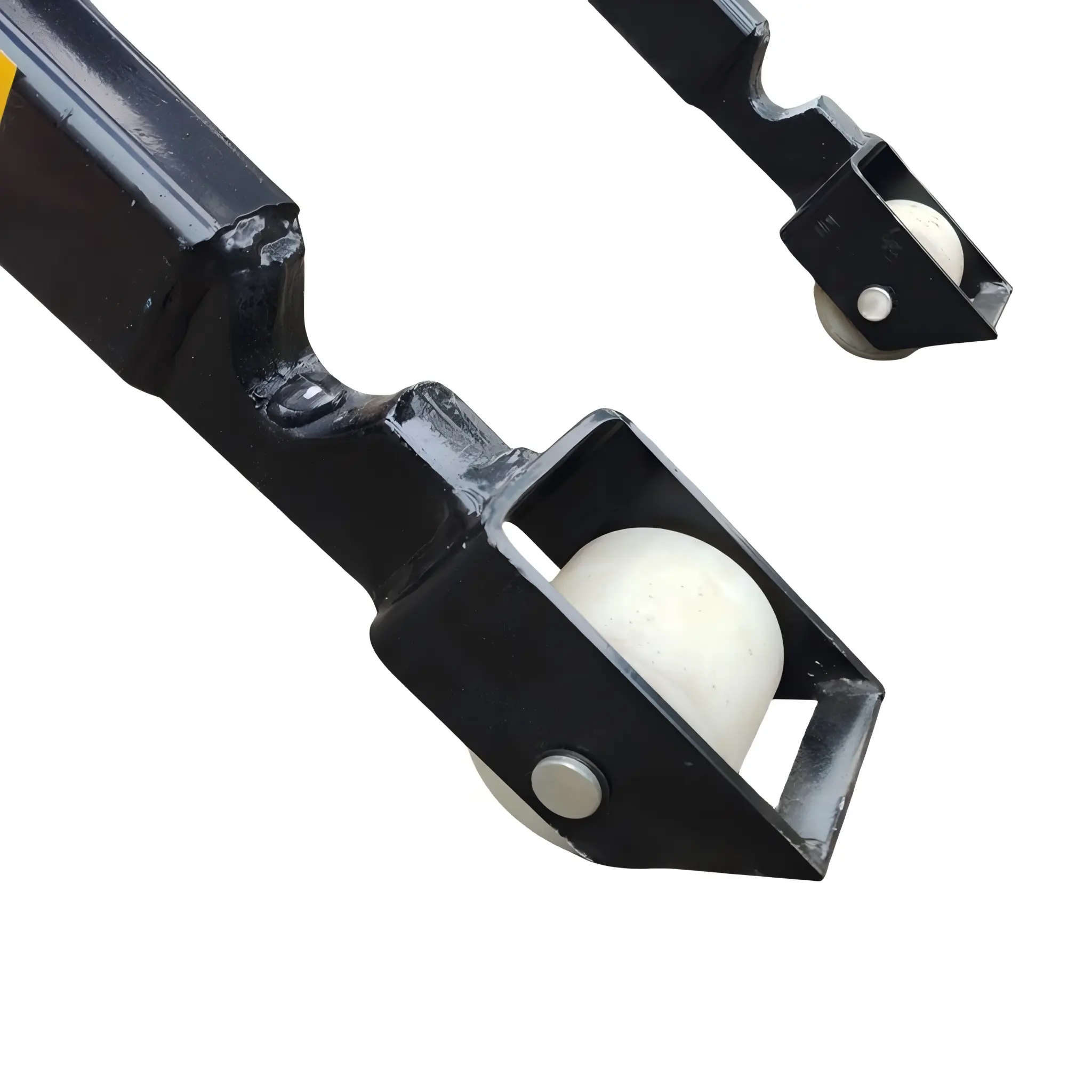

- Great stability Extra long front legs increase the stability when handling unevenly loaded pallets. When lifting height below 400mm, it is easy to move as a pallet truck. Above 400mm the truck is automatically locked by triggering the supports at both sides of the steering wheels.
Product Description
- Quick-lift Operation Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
- Improved safety Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.
- Great stability Extra long front legs increase the stability when handling unevenly loaded pallets. When lifting height below 400mm, it is easy to move as a pallet truck. Above 400mm the truck is automatically locked by triggering the supports at both sides of the steering wheels.
Specification
| Model | CBY – HL |
| Capacity(kg) | 1000/1500 |
| Width Overall Forks(mm) | 550/685 |
| Fork Length(mm) | 1150/1220 |
| Min. Fork Height(mm) | 85 |
| Max. Fork Height(mm) | 800 |
| Self Weight(kg) | 125-135 |
