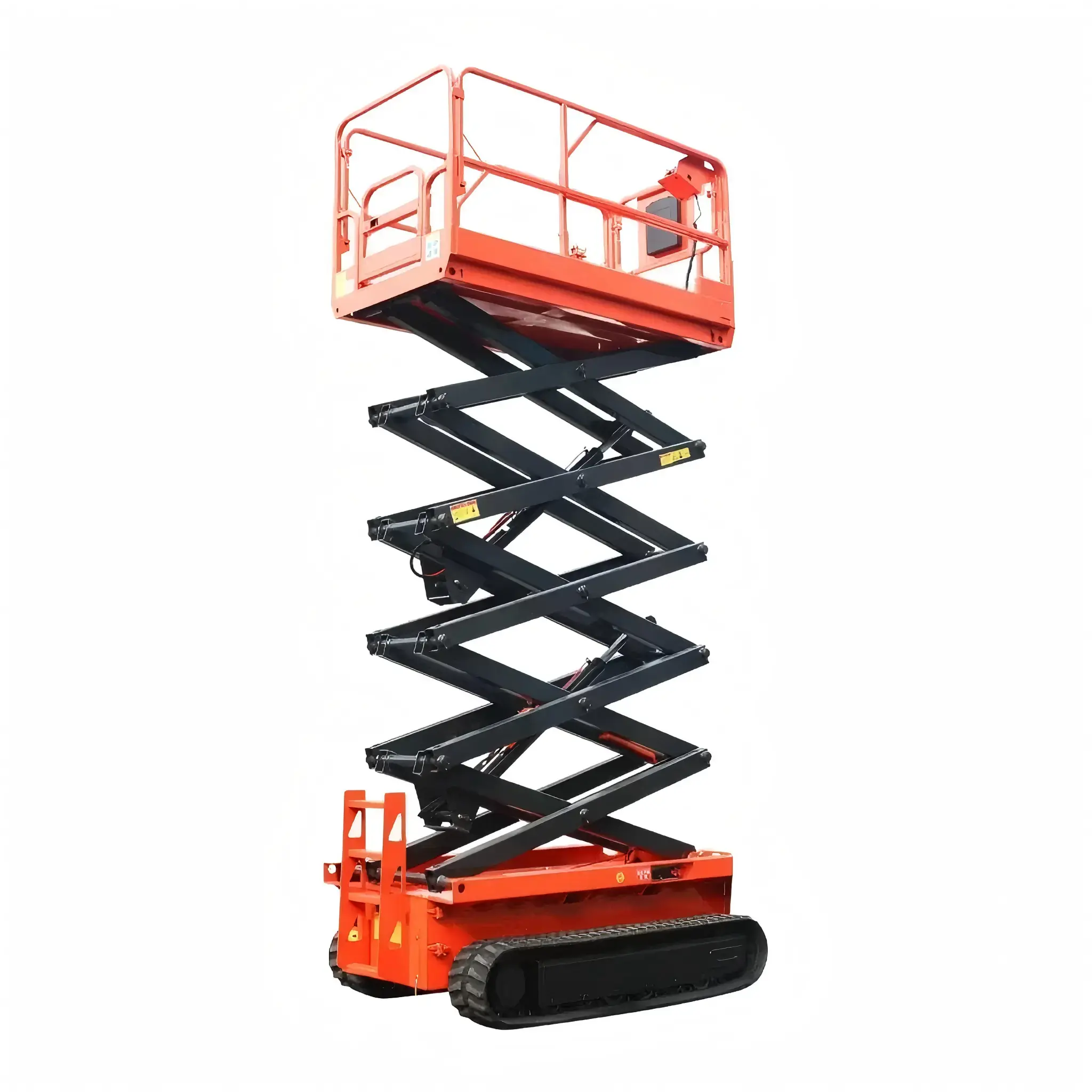

Crawler Scissor Lifts

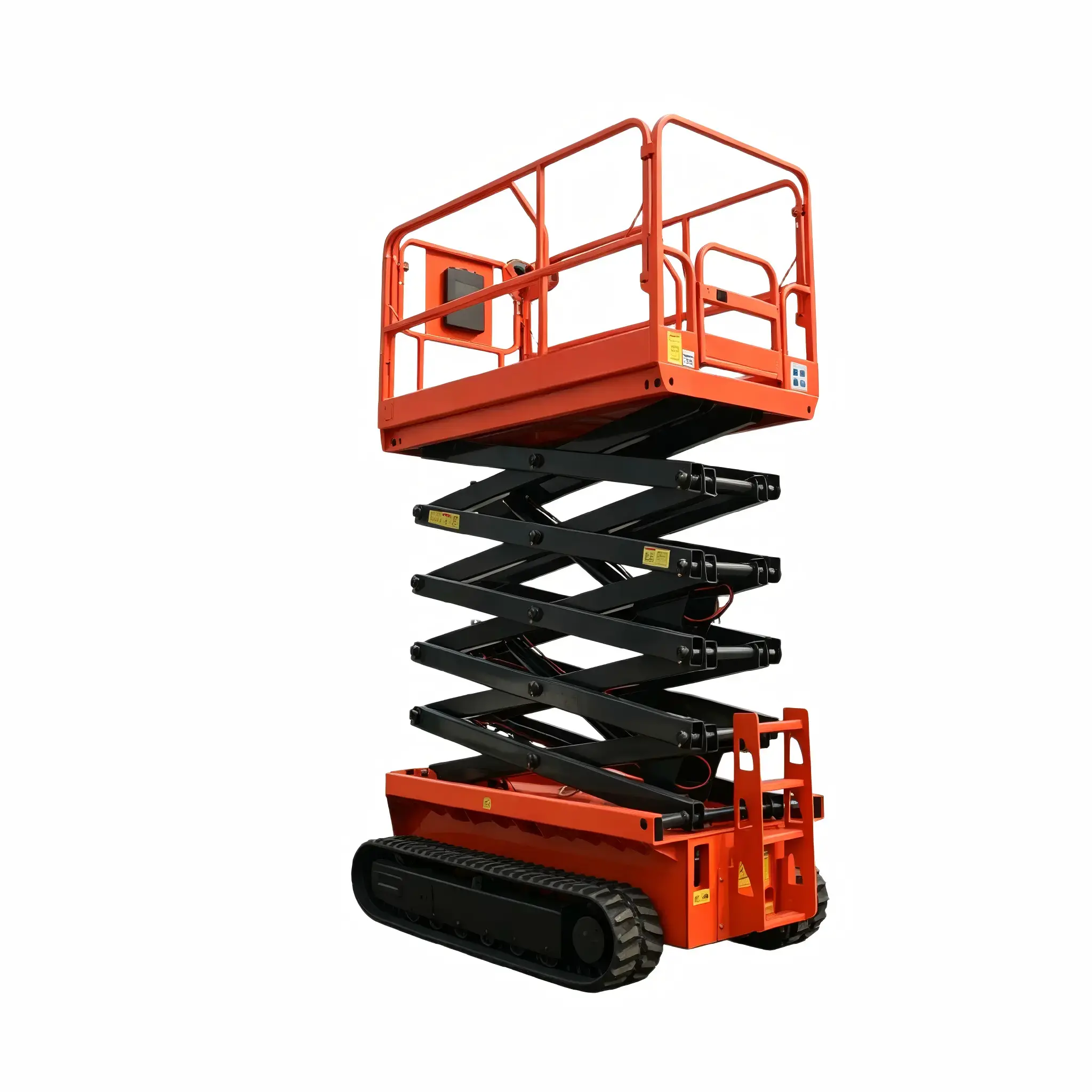

Crawler Scissor Lifts - Image 2

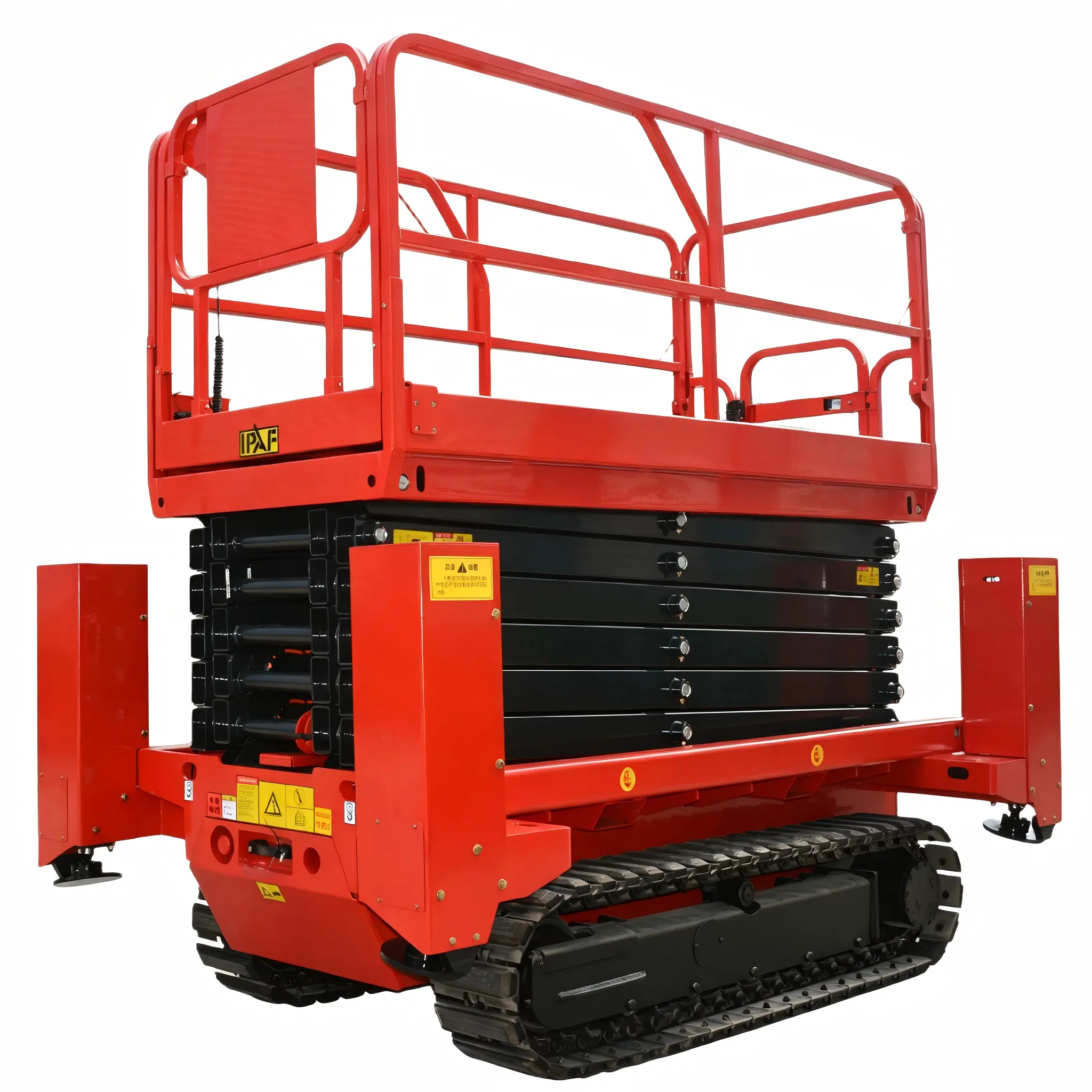

Crawler Scissor Lifts - Image 3

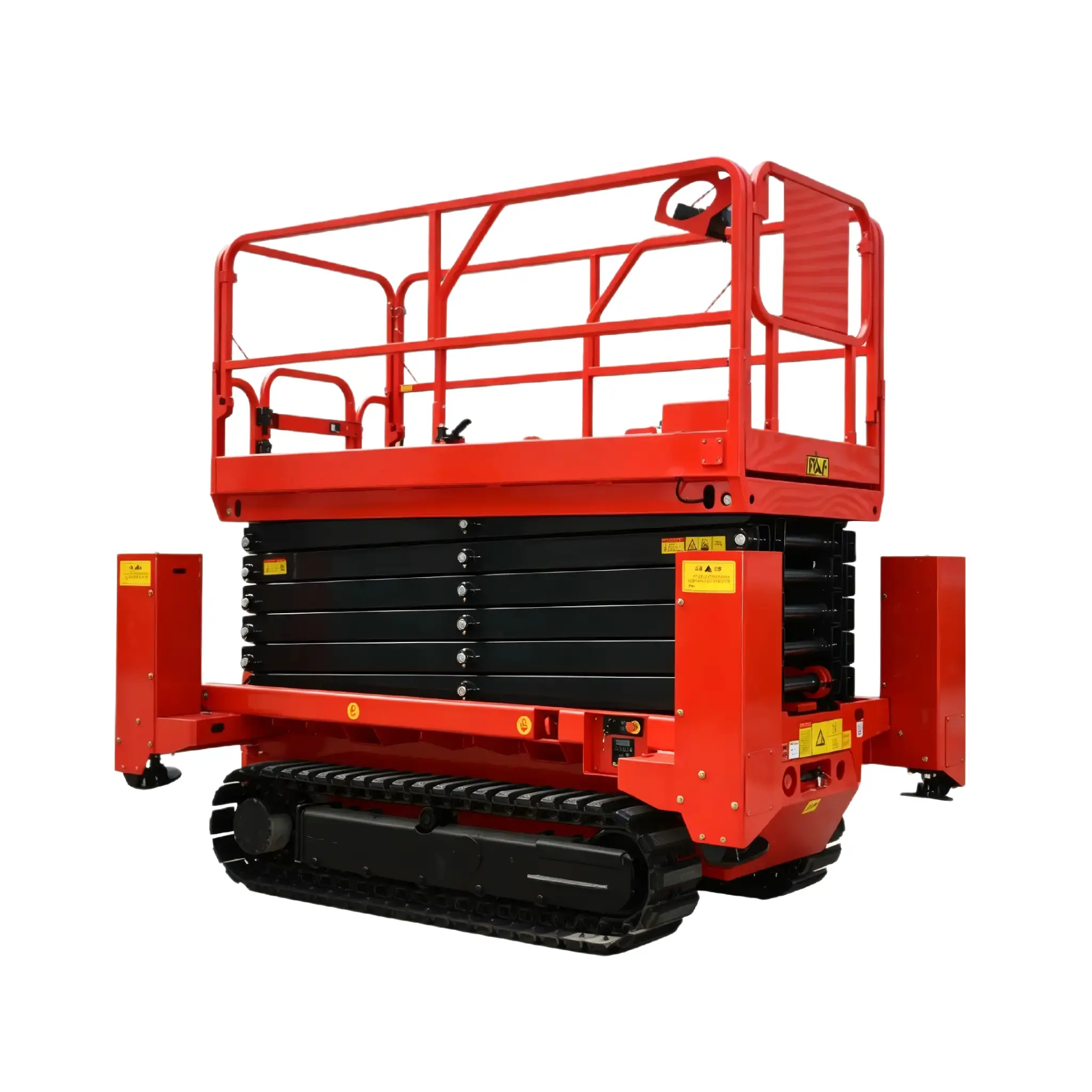

Crawler Scissor Lifts - Image 4

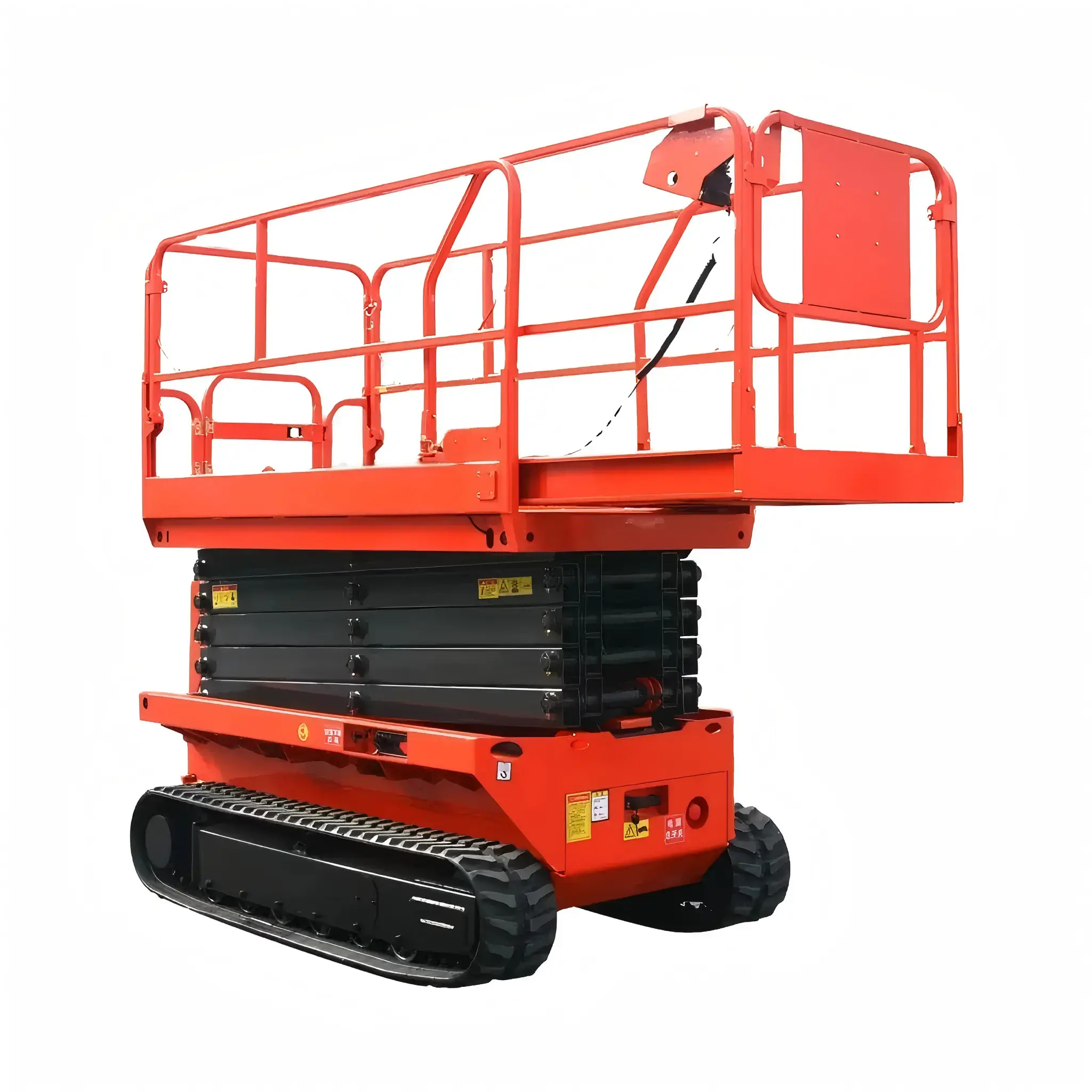

Crawler Scissor Lifts - Image 5

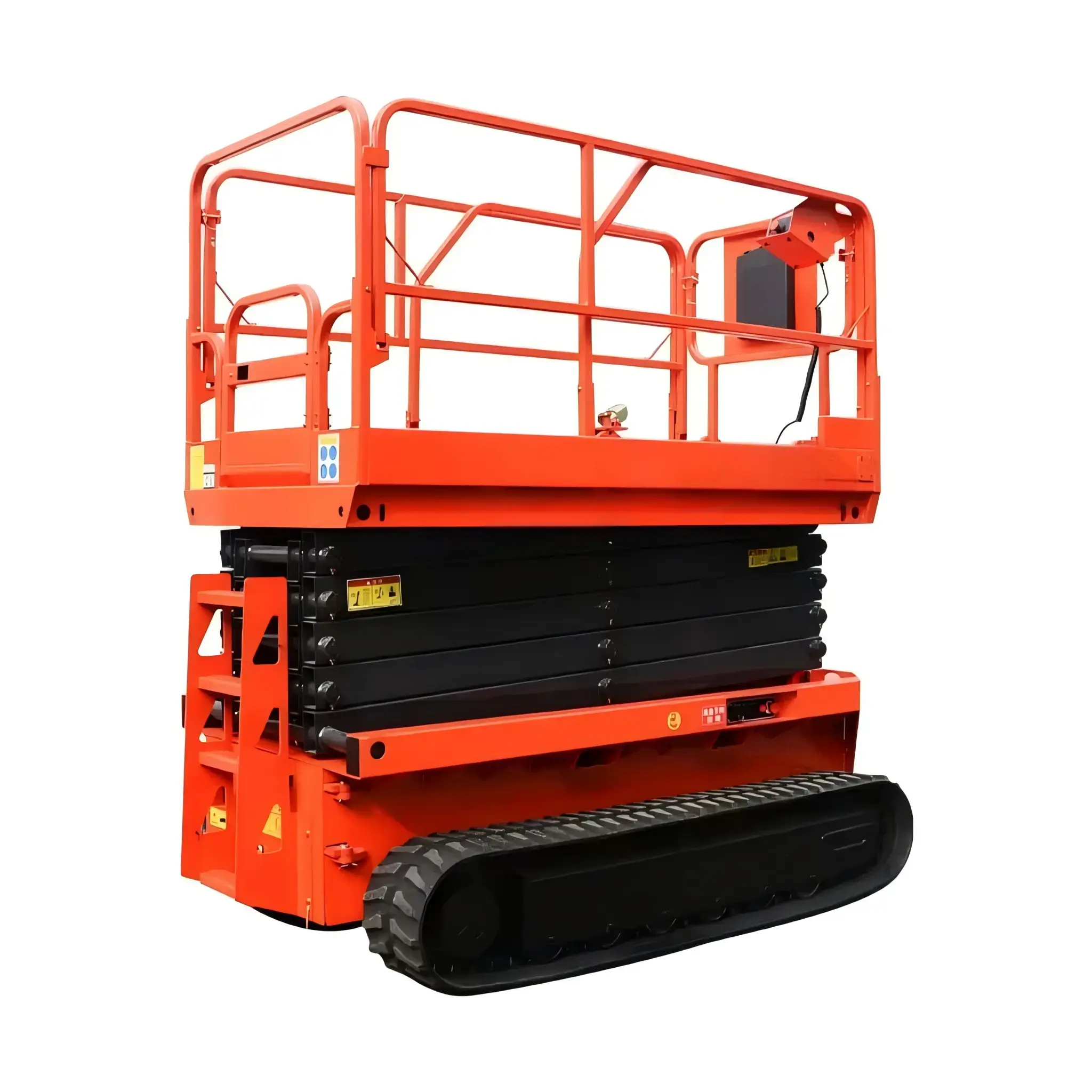

Crawler Scissor Lifts - Image 6
Crawler Scissor Lifts - Image 7

Crawler Scissor Lifts

Get Quote>
  • Suitable for uneven special ground
  • The foldable fence reduces the volume of the whole machine
  • Convenient for working in tight spaces
  • 30% climbing ability, able to smoothly climb up the slope
  • Drawer chassis for easy maintenance
  • The pedal extension platform can be quickly rolled out to the operating point
  • Fault codes are automatically displayed for easy maintenance

Crawler Scissor Lifts

【FEATURES】

Safety Configuration

  • Proportional control
  • Automatic braking system
  • Charging protection system
  • Emergency stop button
  • Emergency descent system
  • Oil pipe explosion-proof system
  • Fault diagnosis system
  • Tilt protection system
  • Platform self-locking door
  • Safe maintenance support rod
  • Foldable fence
 【FEATURES】

Other Configuration

  • Strobe lights
  • Extended platform
  • Standard transport forklift hole
  • Horn & Buzzer
  • Continuously variable speed
 【HIGH LIGHTS】

High Performance

  • Suitable for uneven special ground
  • The foldable fence reduces the volume of the whole machine
  • Convenient for working in tight spaces
  • 30% climbing ability, able to smoothly climb up the slope
  • Drawer chassis for easy maintenance
  • The pedal extension platform can be quickly rolled out to the operating point
  • Fault codes are automatically displayed for easy maintenance



Technical parameter

Model QY0407LD QY0610LD QY0813LD QY1013LD
Size
Working Height 6m 8m 10m 12m
A-Platform Height-Elevated 4m 6m 8m 10m
B-Platform Height-Stowed 1.048m 1.018m 1.34m 1.571m
C-Platform Length 1.29m 1.669m 2.271m 2.271m
D-Platform Width 0.7m 0.745m 1.11m 1.11m
Platform Extension 0.9m 0.9m 0.9m 0.9m
E-Overall Height (unfolded guardrail) 2.148m 2.018m 2.44m 2.571m
Overall height (folded guardrail) 1.823m 1.738m 1.91m 2.041m
F-Overall Length 1.522m 1.974m 2.528m 2.528m
G-Overall Width 1.21m 1.21m 1.39m 1.39m
H-Wheelbase × × × ×
I-Ground Clearance (Stowed) × × × ×
J-Ground Clearance (Raised) × × × ×
Performance
Capacity of Extension 113kg 113kg 113kg 113kg
Platform Capacity 230kg 230kg 320kg 320kg
Max. Number of Workers 1 person + 80kg 1 person + 80kg 2 person 2 person
Driving Speed (Stowed) 1.8km/h 1.8km/h 1.8km/h 1.8km/h
Driving Speed (Raised) 0km/h 0km/h 0km/h 0km/h
Lifting Speed 84/38sec 84/38sec 84/38sec 84/38sec
Gradeability 0.3 0.3 0.3 0.3
Max. Working Angle 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Power
Battery 4×12V/830ah 4×12V/830ah 8×6V/220ah 8×6V/220ah
Charger 48V/15A 48V/15A 48V/35A 48V/35A
Weight
Gross 1200kg 1620kg 3150kg 3200kg
