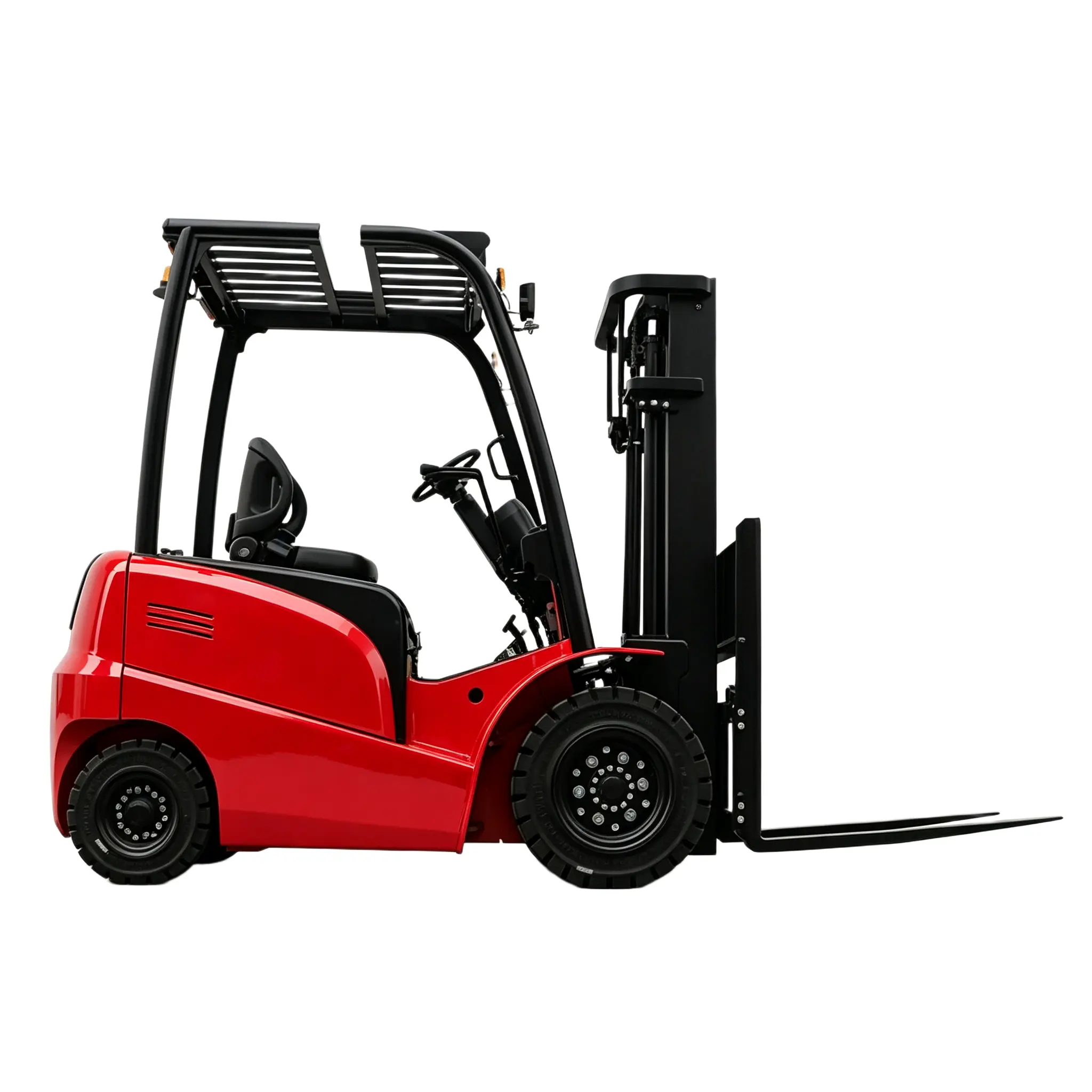

Electric Forklift K Series 2.0-2.5 Ton

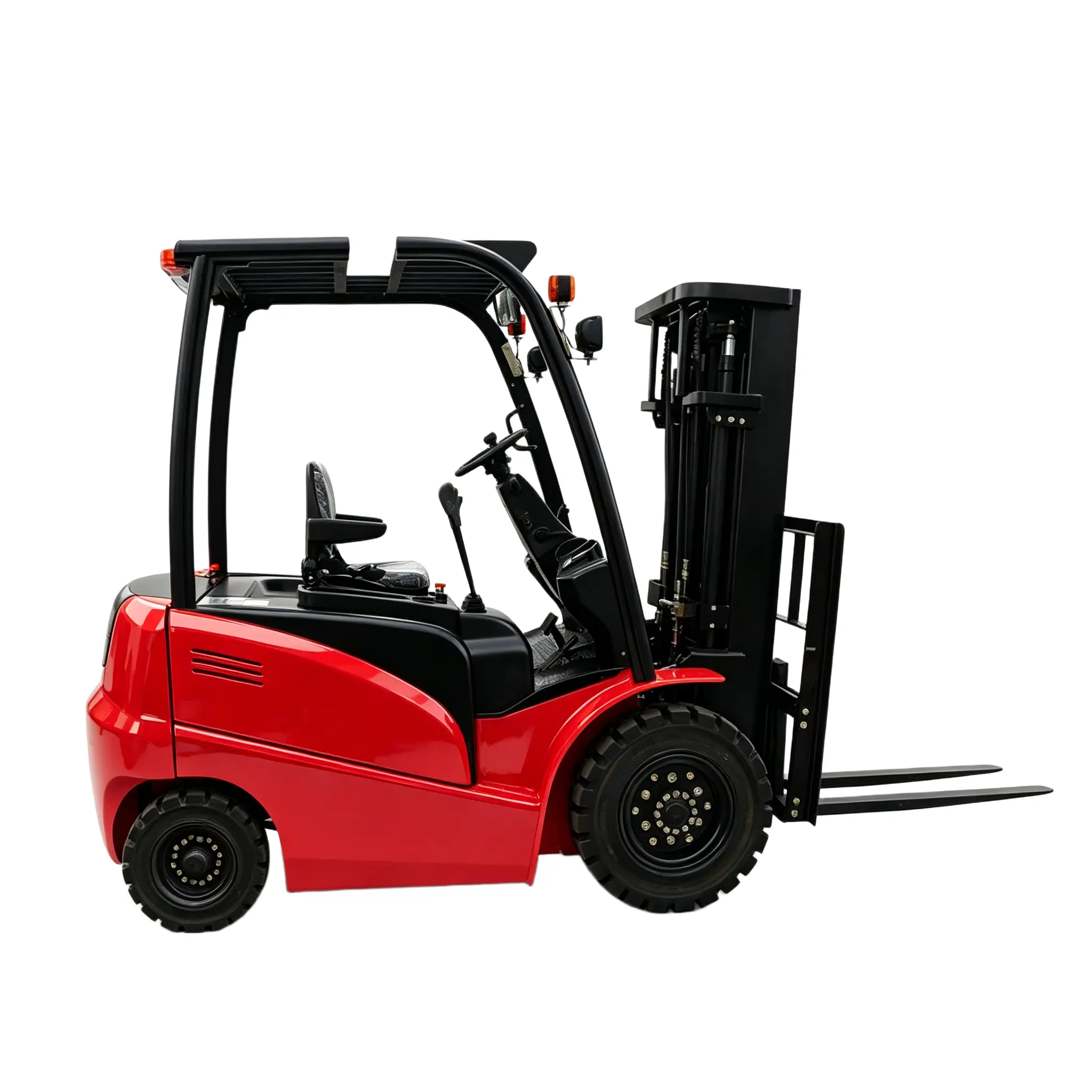

Electric Forklift K Series 2.0-2.5 Ton - Image 2

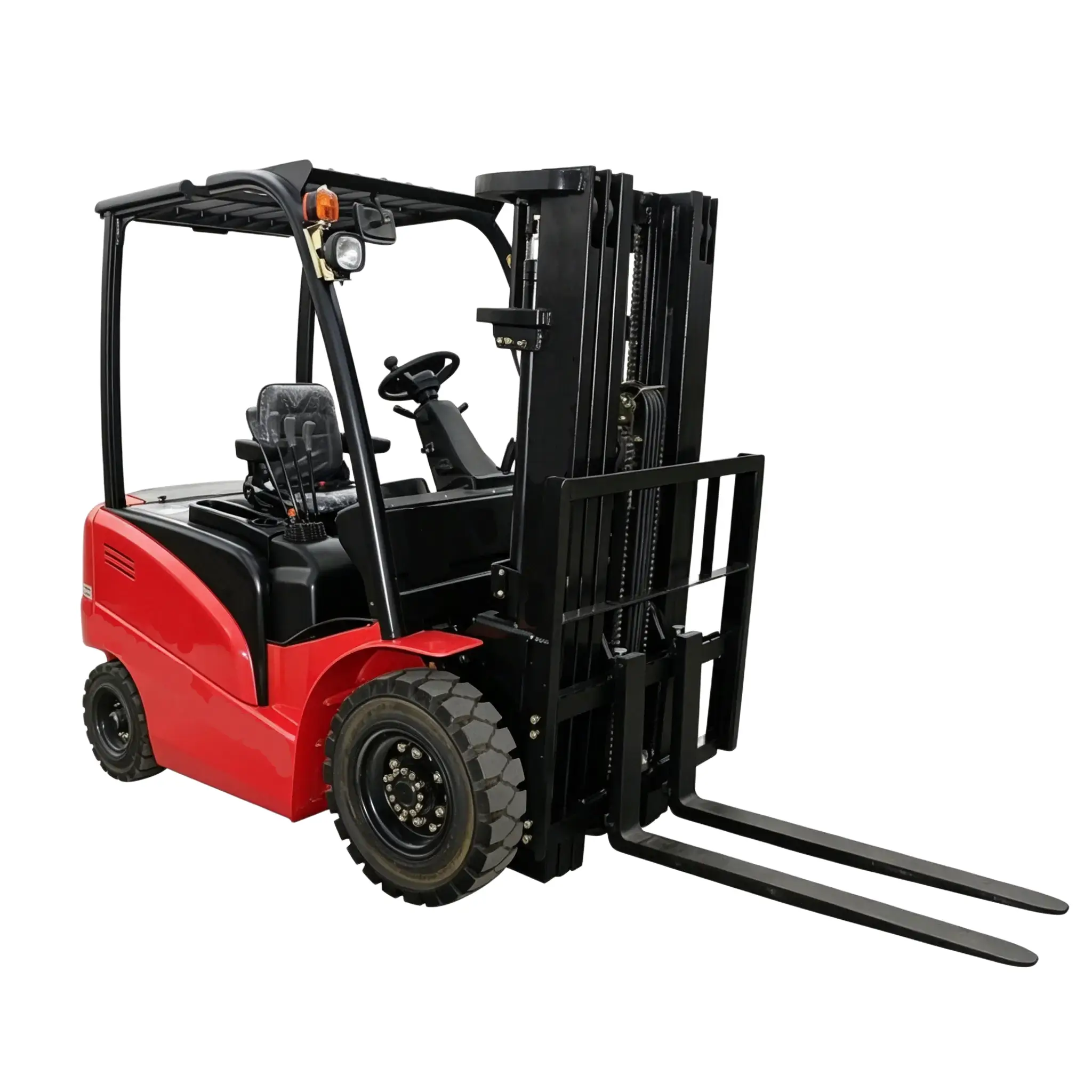

Electric Forklift K Series 2.0-2.5 Ton - Image 3

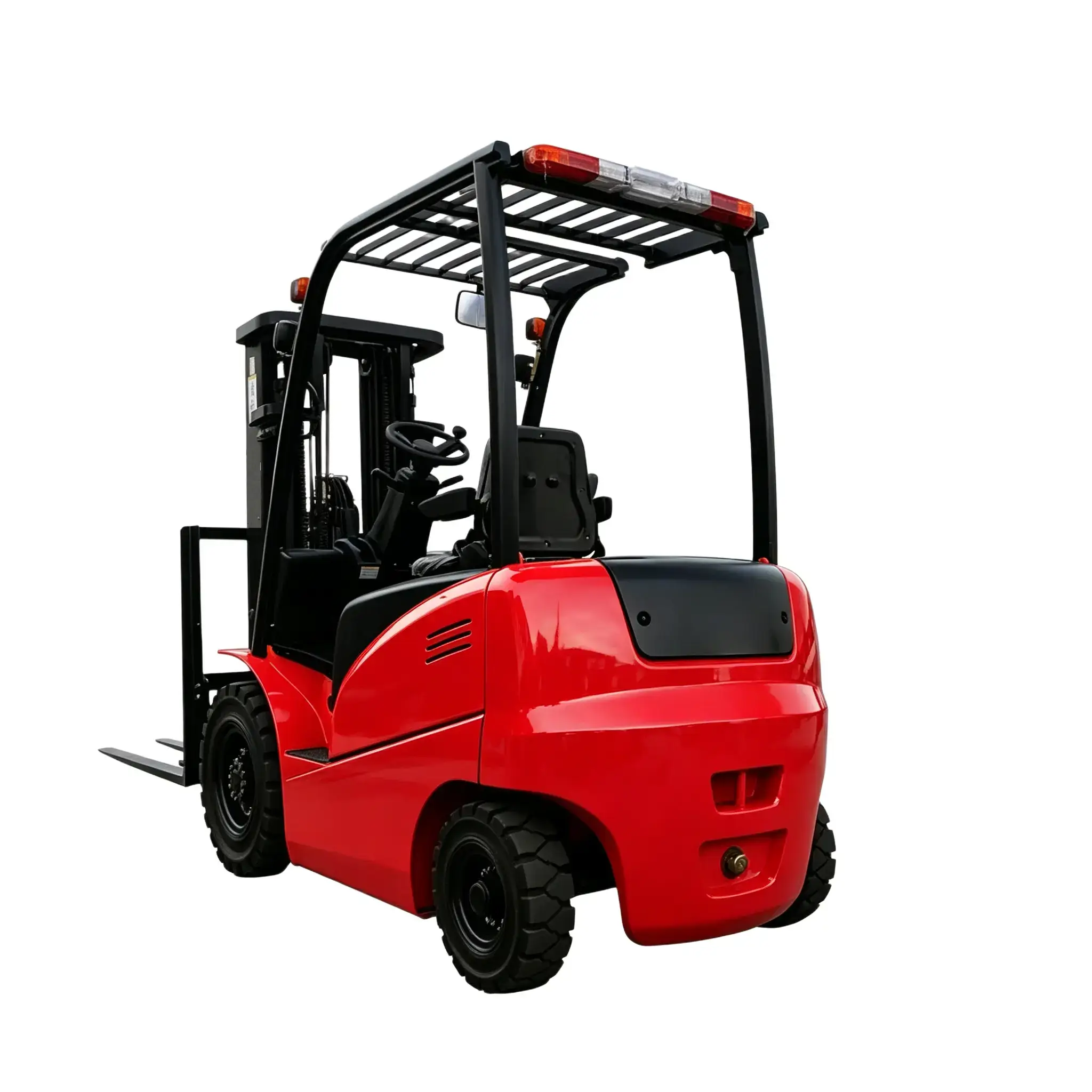

Electric Forklift K Series 2.0-2.5 Ton - Image 4

Electric Forklift K Series 2.0-2.5 Ton

Get Quote>

The speed of AC motor is more compact yet more powerful. With faster start-up response, the forklift runs at full speed over short distances. No need to replace the carbon brush or diverter, thus saving maintenance cost.

Product Description

  1. Advanced AC motor

The speed of AC motor is more compact yet more powerful. With faster start-up response, the forklift runs at full speed over short distances. No need to replace the carbon brush or diverter, thus saving maintenance cost.

  1. High quality battery

Heding high quality lithium battery – long service life, five-year’s warranty, zero pollution, maintenance free, 1.5-2 hours for full charge. Top-brand lead-acid battery – high-rate discharge performance, no ignitability, zero pollution and high recycling rate.

  1. Electronic control system

ZAPI electronic control system with ramp braking and fault self-diagnosis functions. The up-to-date ACS series Ac motor driver provides stable drive current and ideal precision for forklift traction, lifting, driving and operation control.

  1. Reinforced components

The wet disc brake system provides excellent brake performance. The compact steering axle with small deflection, dust-proof and water-proof design endows the forklift with long service life and work stability.

  1. Side-placed charging port (lithium forklift)

The side-placed charging port is configured with China national standard charging gun. The lithium battery can operate at temperatures up to 55℃. Under extreme cold temperatures, the battery can still maintain excellent discharge performance with optional self-heating function.

  1. Ergonomic design

The lifting system is standard configured with buffering function, which ensures soothing landing of a load and better operation safety. And the enlarged cross section of the wide view mast makes the entire structure more stable.

  1. Low voltage DC charger

Low voltage DC charger is provided in line with the battery power. Butt converter of different specifications are optionally provided to meet various charging specifications.



WIDE VIEW MAST
Mast model Max.lifting height (mm) Load capacity (kg) (load center 500mm) Mast overall height (mm) Mast tilting angle (front/rear)
2t 2.5t 2-2.5t
M300 3000 2000 2500 1995 6/12
M330 3300 2000 2500 2145 6/12
M350 3500 2000 2500 2245 6/12
M370 3700 2000 2500 2345 6-6 *6-6
M400 4000 2000 2500 2545 6-6 *6-6
M450 4500 1600*1900 2100*2400 2795 6-6 *6-6
M500 5000 1200*1700 1600*1900 3045 6-6 *6-6
M550 5500 950*1500 1200*1700 3345 *3-6
M600 6000 800*1200 900*1400 3595 *3-6
WIDE VIEW FULL FREE 2-STAGE
Mast model Max.lifting height (mm) Load capacity (kg) (load center 500mm) Mast overall height (mm) Free lifting height (with backrest) Mast tilting angle (front/rear)
2t 2.5t 2-2.5t 2-2.5t
ZM200 2000 2000 2500 1495 495 6/12
ZM250 2500 2000 2500 1745 745 6/12
ZM300 3000 2000 2500 1995 995 6/12
ZM330 3300 2000 2500 2145 1145 6/12
ZM350 3500 2000 2500 2245 1245 6-6 *6-12
ZM370 3700 2000 2500 2345 1370 6-6 *6-12
ZM400 4000 2000 2500 2545 1545 6-6 *6-12
ZM425 4250 1900*2000 2250*2500 2670 1670 6-6 *6-12
ZM450 4500 1800*1900 2150*2400 2795 1795 6-6 *6-6
ZM500 5000 1600*1700 1650*2200 3045 2045 *3-6
ZM550 5500 *1600 *1950 3345 2345 *3-6
ZM600 6000 *1500 *1800 3595 2595 *3-6
WIDE VIEW FULL FREE 3-STAGE
Mast model Max.lifting height (mm) Load capacity (kg) (load center 500mm) Mast overall height (mm) Free lifting height (with backrest) Mast tilting angle (front/rear)
2t 2.5t 2-2.5t 2-2.5t
ZSM360 3600 2000 2500 1755 655 6-6 *6-6
ZSM400 4000 2000 2500 1888 778 6-6 *6-6
ZSM435 4350 1750*1900 1950*2300 2005 905 6-6 *6-6
ZSM450 4500 1600*1800 1700*2200 2055 955 6-6 *6-6
ZSM480 4800 1250*1700 1500*2000 2155 1055 6-6 *6-6
ZSM500 5000 1100*1600 1300*1800 2222 1128 6-6 *3-6
ZSM550 5500 850*1300 1100*1600 2388 1288 3-6 *3-6
ZSM600 6000 700*1100 800*1300 2605 1505 3-6 *3-6



Technical datas
Model CPD20E CPD25E
1.01 Rated capacity Q Kg 2000 2500
1.02 Load center distance C mm 500
1.03 Power type     Lithium Battery Battery Lithium Battery Battery
1.04 Driving type     Seated
1.05 Wheel base L1 mm 1480
Tyres
2.01 Tyre type     Pneumatic
2.02 Wheel number (front/rear)     2×/2
2.03 Front tread W3 mm 970
2.04 Rear tread W2 mm 950
2.05 Tyre (front)     7.00-12-12PR
2.06 Tyre (rear)     18X7-8PR
Size
3.01 Front overhang L2 mm 458
3.02 Mast tilting angle, front/rear α/β ° 6/12
3.03 Height with mast retraction H1 mm 1995
3.04 Free lifting height H3 mm 150
3.05 Max. lifting height H mm 3000
3.06 Max. height after lifting H2 mm 4045
3.07 Overall guard height H4 mm 2098
3.08 Fork size:length×width×thickness LxWxT mm 1070×100×40 1070×120×40
3.09 Overall length(fork excluded) L’ mm 2353
3.10 Overall width W1 mm 1170
3.11 Turning radius r mm 2172
3.12 Ground clearance of mast H5 mm 110
3.13 Ground clearance of wheel base center (loaded) H6 mm 105
3.14 Lateral fork adjustment Max./Min. W5 mm 1038/200 1038/240
Performance
4.01 Travelling speed (loaded/unloaded)   km/h 13/15 12/14
4.02 Lifting speed (loaded/unloaded)   mm/s 320/450 300/400
4.03 Lowering speed   mm/s < 600
4.04 Gradeability (loaded)   % 15 14
Weight
5.01 Total weight (with battery)   Kg 3620 3540 3960 3960
Battery
6.01 Battery voltage / capacity   V/Ah 80/202 48/420 80/230 48/490
6.02 Battery weight   Kg 176 715 182 750
Motor and controller
7.01 Driving motor power S2-60 minutes   Kw 11
7.02 Lifting motor power(S3-15%)   Kw 12
7.03 Electronic controller     ZAPI
7.04 Charger   V/Ah 80/100 48/50 80/100 48/70
7.05 Service brake/parking brake     Hydraulic / Mechanical
7.06 Hydraulic system working pressure   Mpa 18.5
