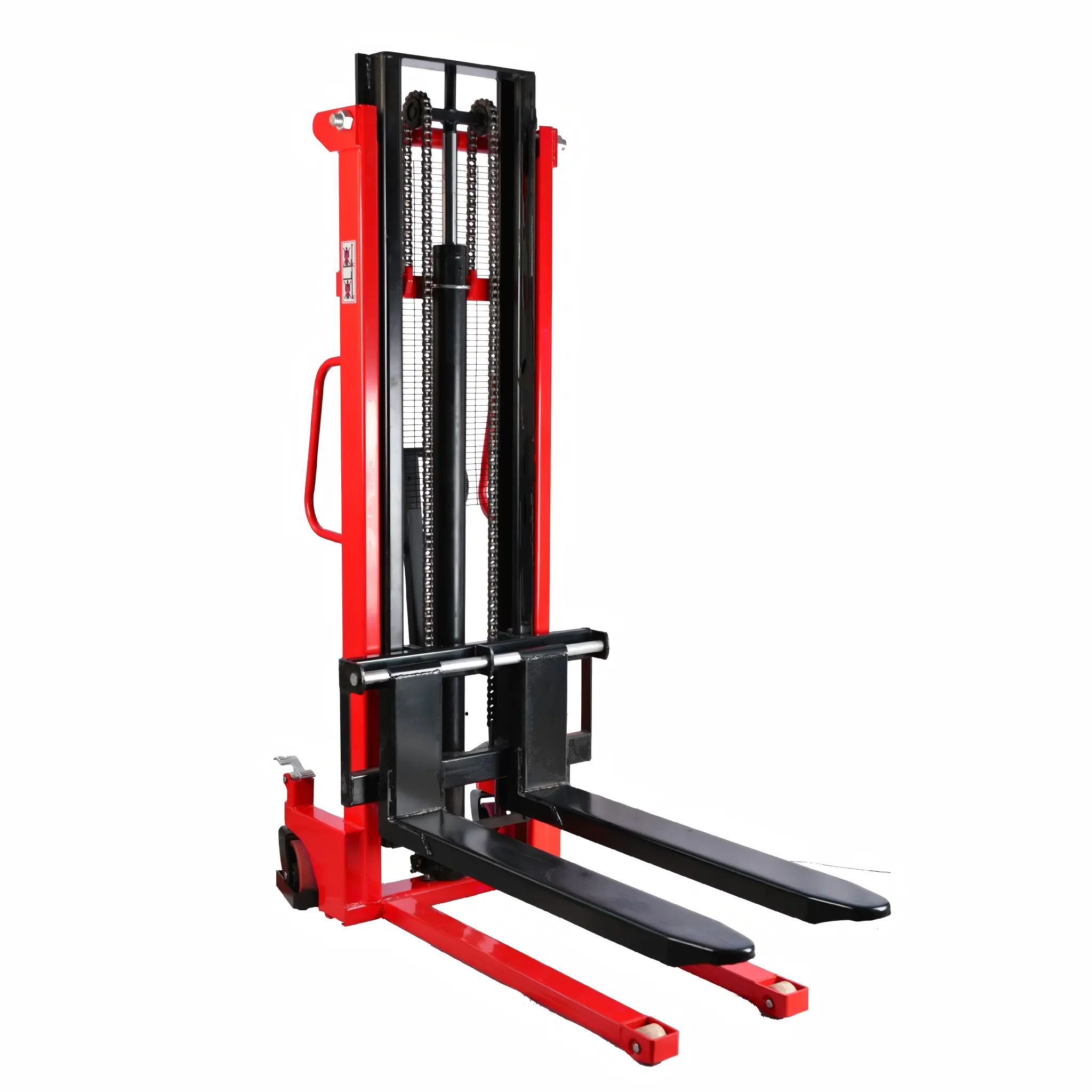

Manual Stacker CTY-E

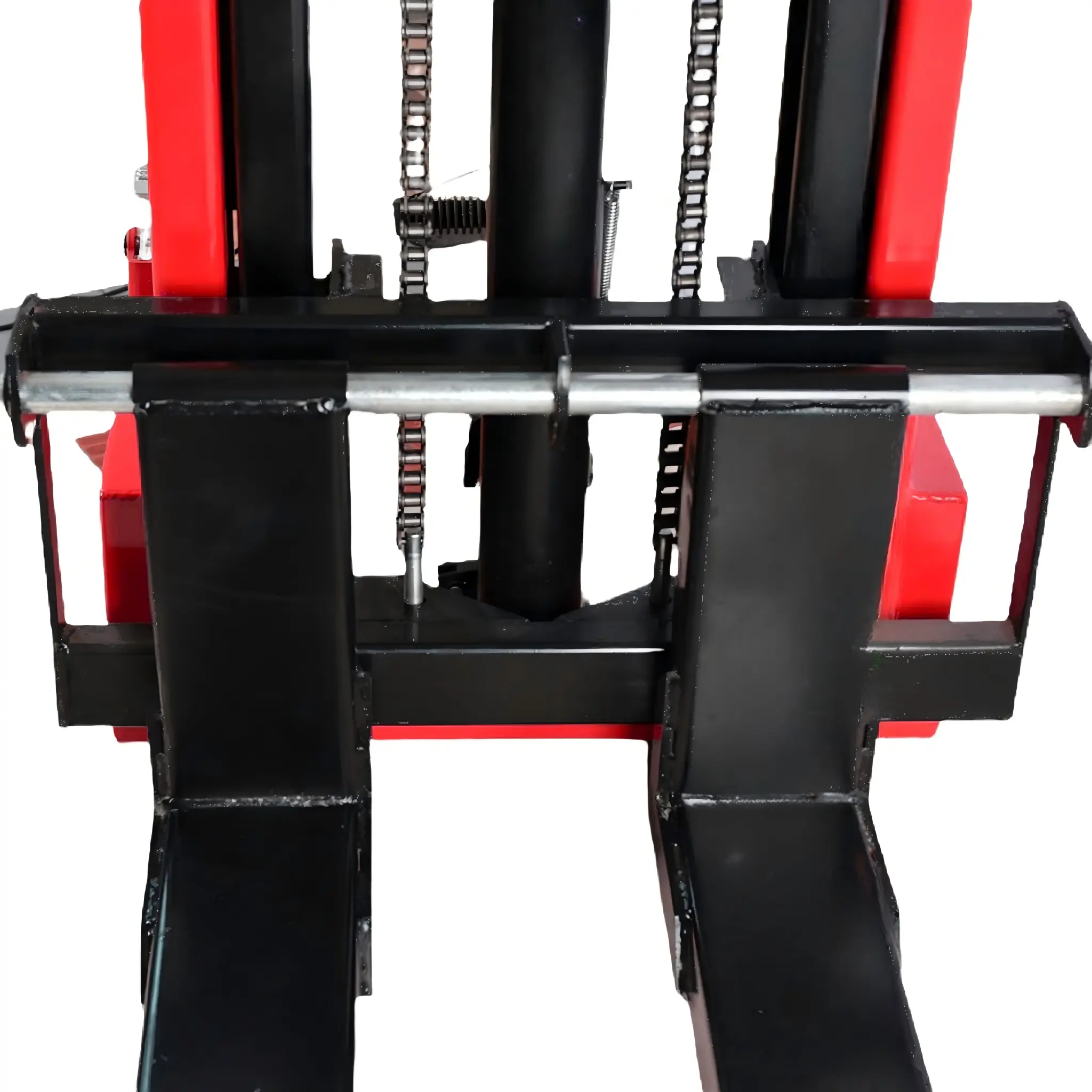

Gantry: The “C” steel made by special rolling process is selected, the internal and external surfaces are polished, and the connection is made by full welding technology. The solid and durable overall structure will never be deformed.

Leak-proof oil cylinder: The oil cylinder adopts leak-proof design, the piston rod is chrome-plated, and imported seals are used.

Product Description

Gantry: The “C” steel made by special rolling process is selected, the internal and external surfaces are polished, and the connection is made by full welding technology. The solid and durable overall structure will never be deformed.
Leak-proof oil cylinder: The oil cylinder adopts leak-proof design, the piston rod is chrome-plated, and imported seals are used.
Small volume: The body structure is solid and compact, suitable for passing through standard doors and crowded places.

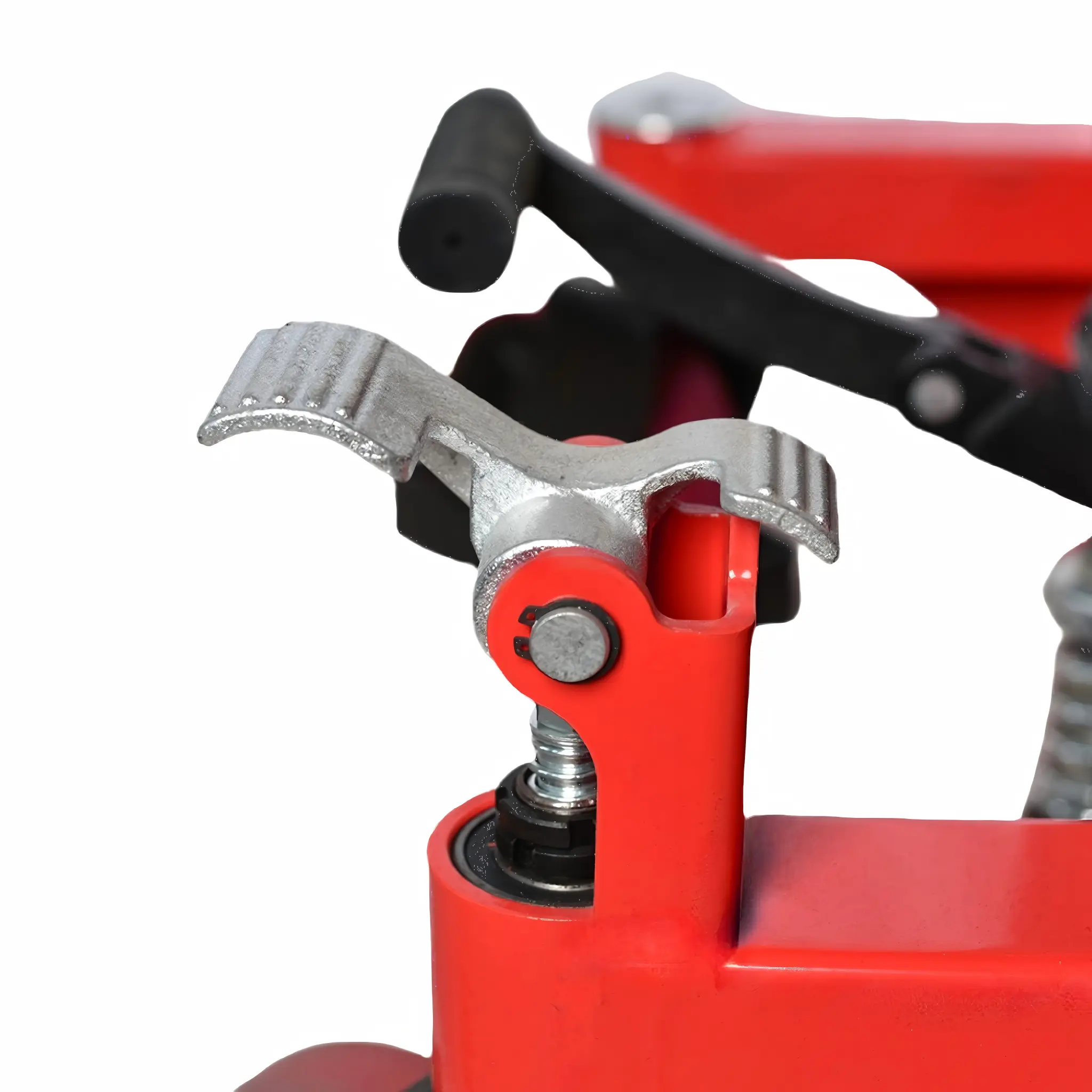

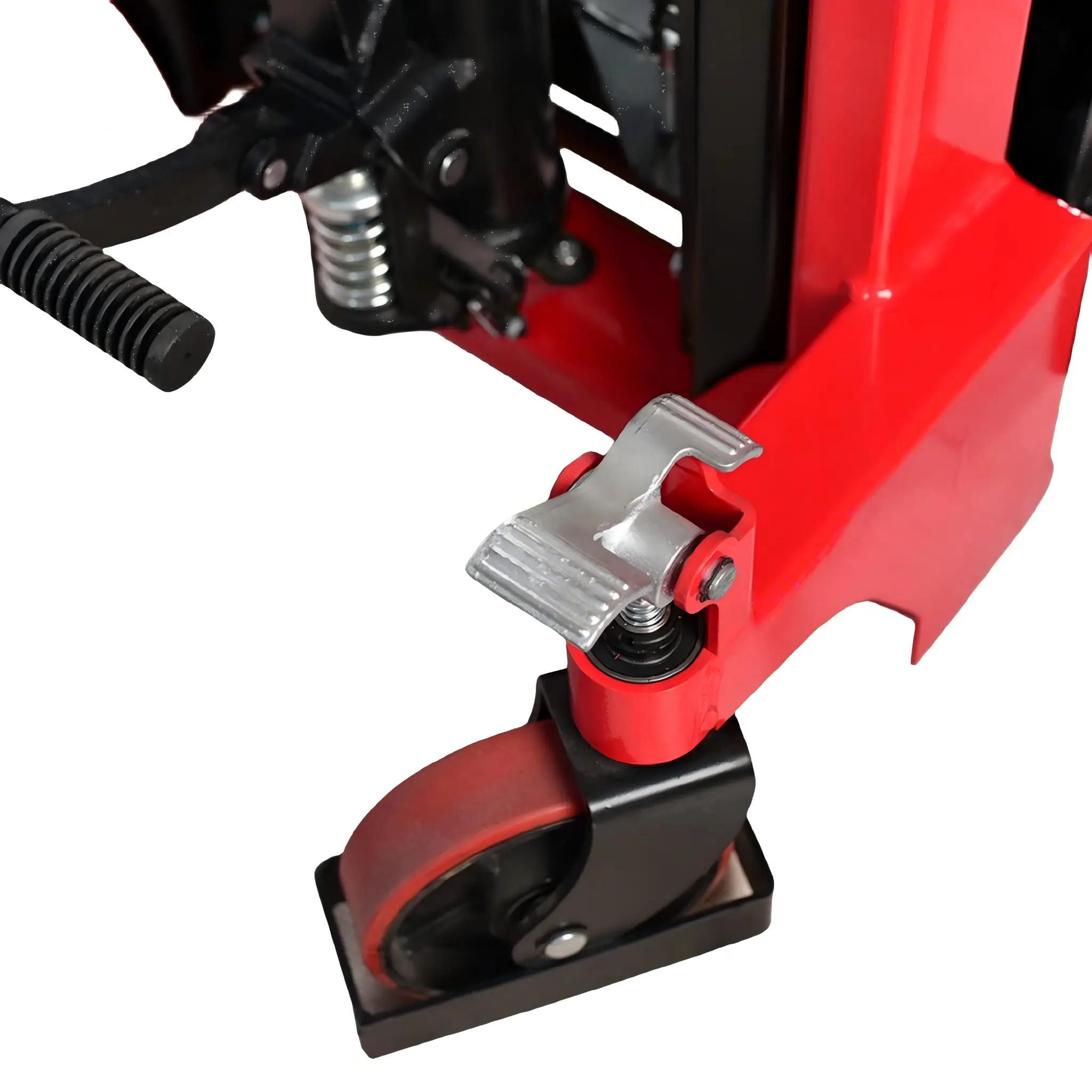

Free control: The lifting mode can be controlled by the handle and foot pedal.

Specification

Model	CTY-E 1.0	CTY-E 2.0	CTY-E 1.0S	CTY-E 2.0S
Capacity(kg)	1000	2000	1000	2000
Lower Height of Forks(mm)	90	90	90	90
Fork Lift Height(mm)	1600	1600	2000/2500/3000	2000/2500/3000
Fork Length(mm)	900	900	900	900
Fork Adjustable Width(mm)	340~770	360~770	340~770	360~770
Gantry Material	Bending C-section steel	Bending C-section steel	Bending C-section steel	Bending C-section steel
Fork Material	Bending C-section steel	Bending C-section steel	Bending C-section steel	Bending C-section steel
Lifting Speed(mm/s)	20	14	20	14
Descent Speed(mm/s)	Controllable	Controllable	Controllable	Controllable
Width(mm)	690	690	690	690
Minimum Refueling Amount(L)	1.6	2	2/2.6/3.1	2.5/3.2/3.9
Front Wheel Size(mm)	Φ74×52	Φ74×70	Φ74×52	Φ74×70

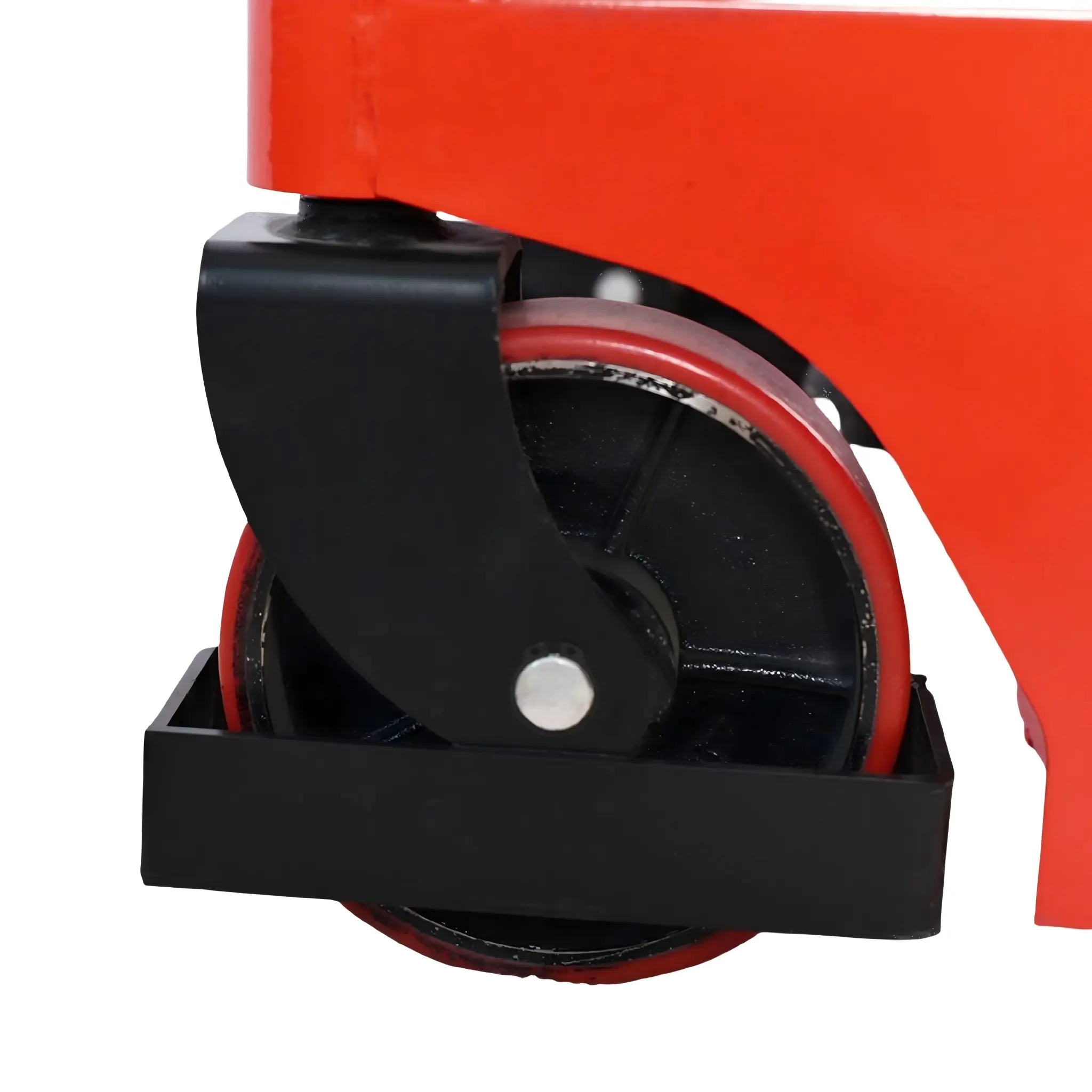

Rear Wheel Size(mm)	Φ180×50	Φ180×50	Φ180×50	Φ180×50
Overall Size(mm)	1390×780×2040	1390×780×2040	1410×780×15401410×780×17901410×780×2040	1410×780×15401410×780×17901410×780×2040
