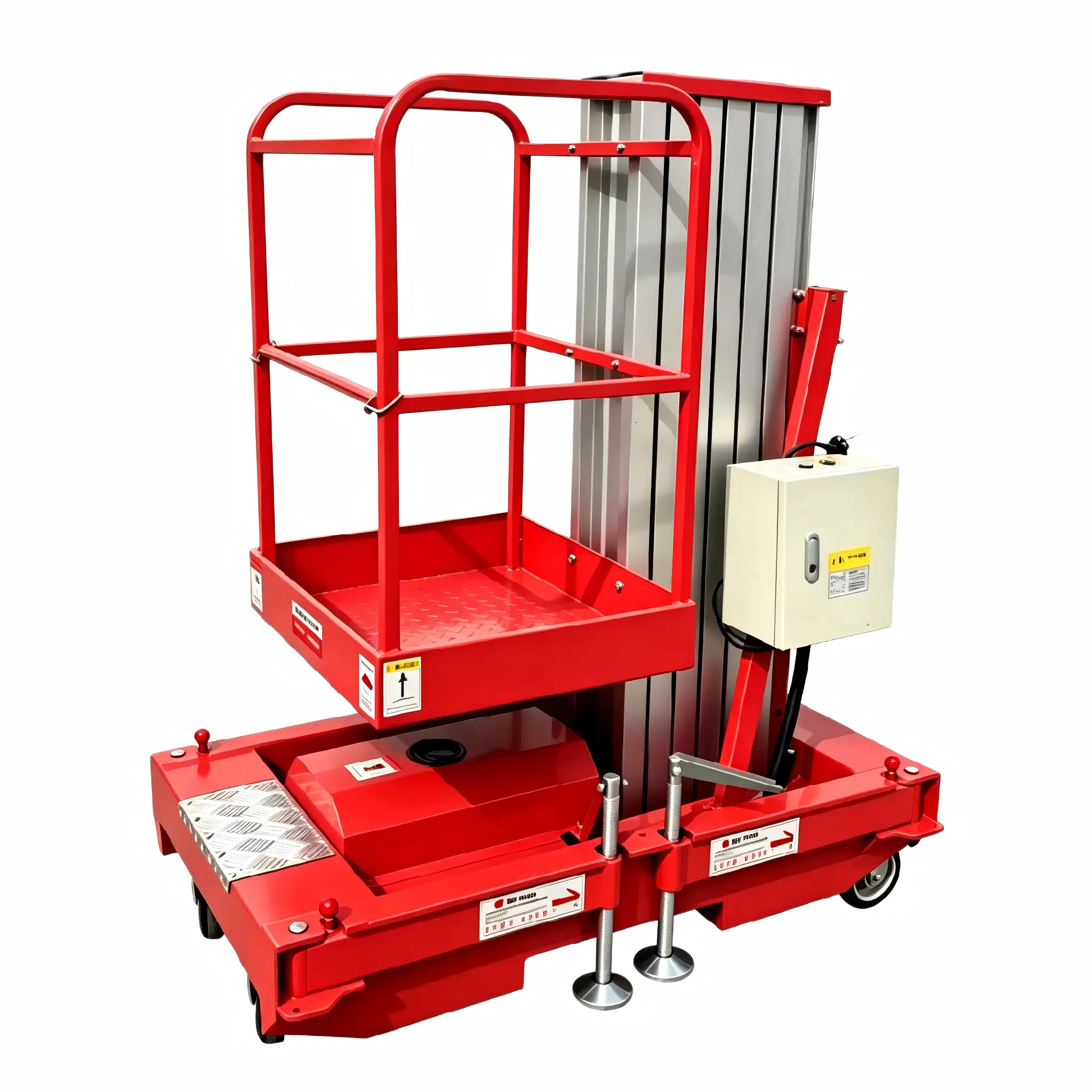

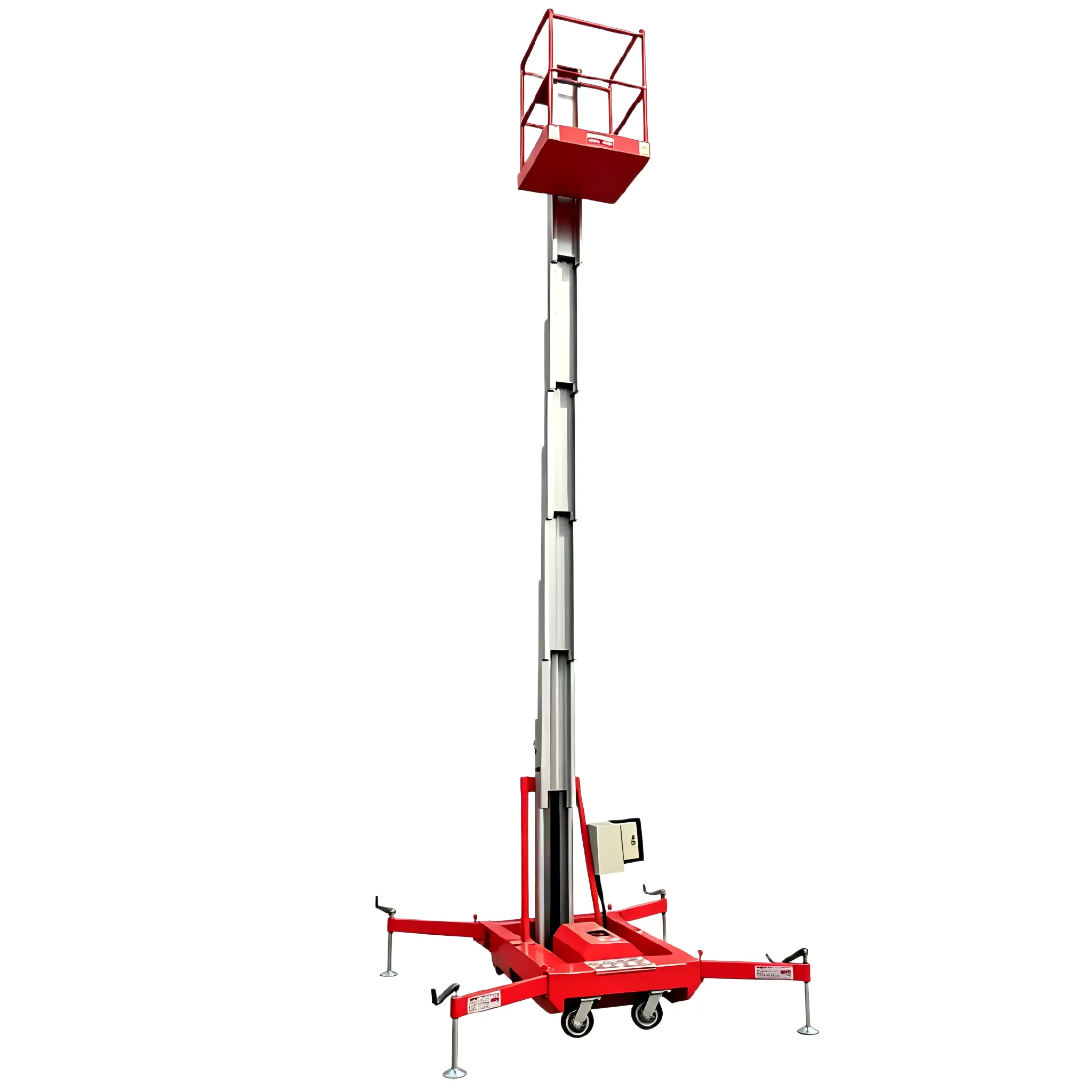

Mobile Aluminum Work Platform Single Mast
Base appearance is manufactured according to US imported model specifications.
Hydraulic power unit: Imported Haipu brand.
Hydraulic cylinders: Imported Atos brand.
Steel control box, dual limit switches, and four support legs with locking pins.
Export Version Configuration:
- Base appearance is manufactured according to US imported model specifications.
- Hydraulic power unit: Imported Haipu brand.
- Hydraulic cylinders: Imported Atos brand.
- Steel control box, dual limit switches, and four support legs with locking pins.
| Model | GTWY4-100A | GTWY5-100A | GTWY6-100A | GTWY8-100A | GTWY9-100A | GTWY10-100A | ||
| Max. Platform Height（mm） | 4000 | 5000 | 6000 | 8000 | 9000 | 10000 | ||
| Working Height （mm） | 5700 | 6700 | 7700 | 9700 | 10700 | 11700 | ||
| Ground Clearance（mm） | 80 | 80 | 80 | 80 | 80 | 80 | ||
| Lift Rated Capacity(Kg) | 125-150 | 125-150 | 125-150 | 125-150 | 125-150 | 125 | ||
| Platform Size（mm） | 640 × 580 | |||||||
| Outspread Size（mm） | 1600 × 1700 | 1650 × 1750 | 1650 × 1750 | 1650 × 1750 | 1990 × 1880 | 1940 × 1980 | ||
| Electrical Power Supply | AC（V） | AC220/50HZ | ||||||
| DC（V） | 12V or 24V battery optional | |||||||
| Battery（V/Ah） | 12V configuration uses 1 battery; 24V configuration uses 2 batteries (each with 60Ah capacity) | |||||||
| Charger（V/A) | 12V or 24V charger optional | |||||||
| Lifting Motor | AC(V/kw) | 220/0.75 | ||||||
| DC(V/kw) | 24/0.8 | |||||||
| Overall Length(mm) | mm | 1200 | 1300 | 1300 | 1300 | 1420 | 1510 | |
| Overall Width(mm) | mm | 800 | 800 | 800 | 800 | 850 | 850 | |
| Overall Height(mm) | mm | 1650 | 1650 | 1650 | 1980 | 1980 | 1980 | |
| Overall Net Weight | AC(kg) | 230 | 280 | 295 | 325 | 345 | 380 | |
| DC(kg) | 270 | 320 | 335 | 365 | 385 | 420 | ||
