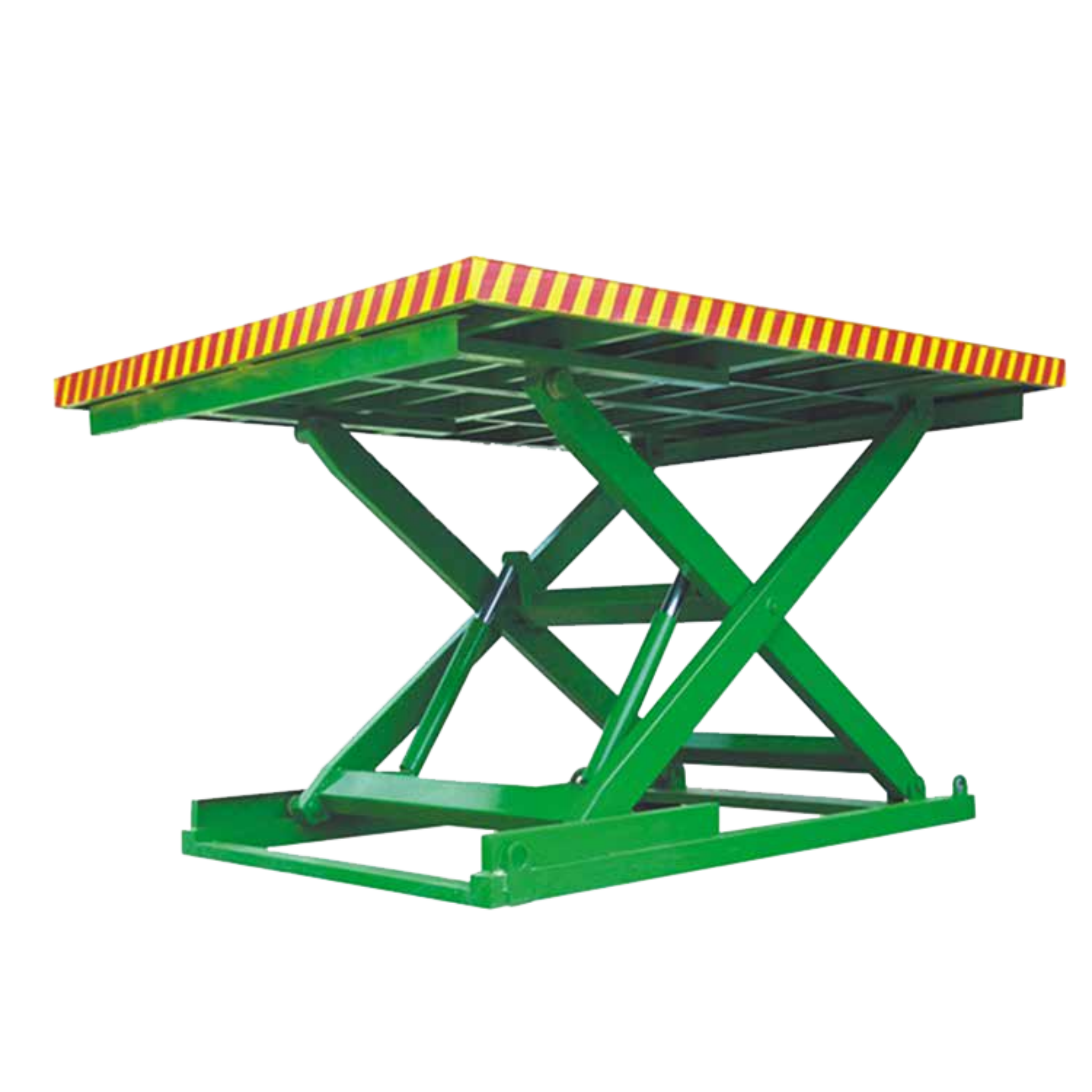

Scissor Lift Table
The fixed hydraulic lifting platform has the characteristics of large bearing capacity, easy operation and reliable performance. It can take the place of elevators to lift goods to certain floors.
Scissor Lift Table
Product Description
The fixed hydraulic lifting platform has the characteristics of large bearing capacity, easy operation and reliable performance. It can take the place of elevators to lift goods to certain floors.
Specification
| Single Fork Frame | ||||||||
| Model | Load Capacity (kg) | Lifting Height H2 (mm) | Rated Height H2+H1 (mm) | Low Height H1 (mm) | Platform Size L×B (mm) | Elevating Time (s) | Motor Power (kW) | Total Weight (kg) |
| SJG1-1.7 | 1000 | 1700 | 2140 | 440 | 2500×2000 | 30 | 2.2 | 1200 |
| SJG2-1.7 | 2000 | 1700 | 2160 | 460 | 2500×2000 | 30 | 3.7 | 1400 |
| SJG3-1.7 | 3000 | 1700 | 2210 | 510 | 2600×2000 | 30 | 3.7 | 1600 |
| SJG5-1.7 | 5000 | 1700 | 2230 | 530 | 2800×2000 | 30 | 7.5 | 2000 |
| SJG10-1.7 | 10000 | 1700 | 2370 | 670 | 4000×2200 | 30 | 7.5 | 3000 |
| Double Forks Frame | ||||||||
| Model | Load Capacity (kg) | Lifting Height H2 (mm) | Rated Height H2+H1 (mm) | Low Height H1 (mm) | Platform Size L×B (mm) | Elevating Time (s) | Motor Power (kW) | Total Weight (kg) |
| SJG1-3 | 1000 | 3000 | 3580 | 580 | 2300×2000 | 30 | 2.2 | 1300 |
| SJG2-3 | 2000 | 3000 | 3580 | 580 | 2300×2000 | 30 | 3.7 | 1600 |
| SJG3-3 | 3000 | 3000 | 3690 | 690 | 2400×2000 | 30 | 3.7 | 1800 |
| SJG1-4 | 1000 | 4000 | 4645 | 645 | 2100×2000 | 40 | 2.2 | 1500 |
| SJG2-4 | 2000 | 4000 | 4720 | 720 | 2100×2000 | 40 | 3.7 | 1800 |
| SJG3-4 | 3000 | 4000 | 4870 | 870 | 2200×2000 | 40 | 5.5 | 2000 |
| SJG1-5 | 1000 | 5000 | 5770 | 770 | 2000×2000 | 60 | 2.2 | 1700 |
| SJG2-5 | 2000 | 5000 | 5860 | 860 | 2000×2000 | 60 | 3.7 | 2100 |
| SJG3-5 | 3000 | 5000 | 6055 | 1055 | 2000×2000 | 60 | 5.5 | 2500 |
| SJG1-6 | 1000 | 6000 | 6890 | 890 | 2000×2000 | 70 | 3.7 | 2000 |
| SJG2-6 | 2000 | 6000 | 7005 | 1005 | 2000×2000 | 70 | 5.5 | 2500 |
| SJG1-9 | 1000 | 9000 | 10265 | 1265 | 2500×2000 | 100 | 5.5 | 3500 |
| SJG2-9 | 2000 | 9000 | 10400 | 1400 | 2500×2000 | 120 | 7.5 | 4800 |
| SJG4-5 | 4000 | 5000 | 5870 | 870 | 6000×2200 | 60 | 5.5 | 4000 |
| SJG5-5.5 | 5000 | 5500 | 6435 | 935 | 6000×2200 | 60 | 7.5 | 5000 |
