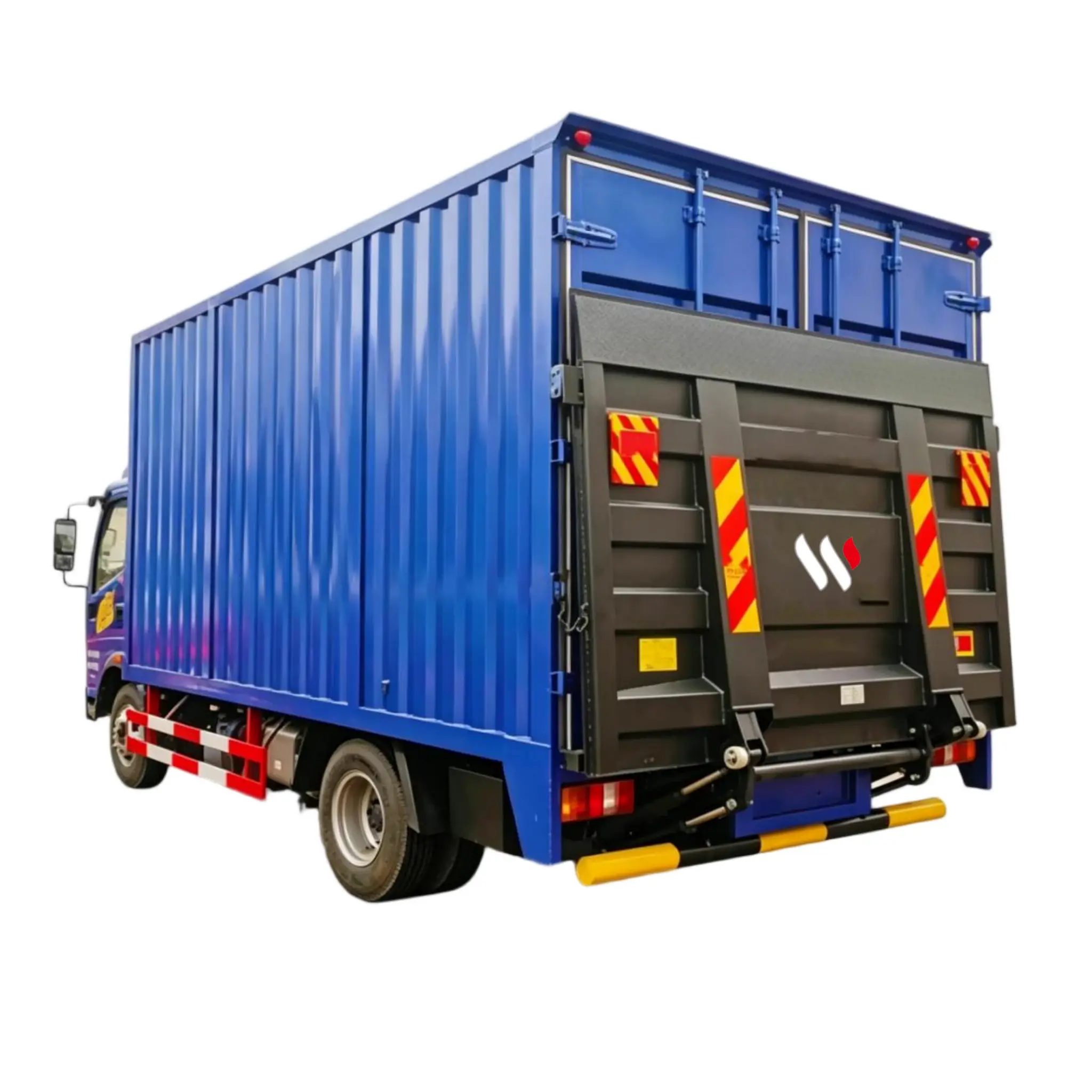

Steel Tail Lift
Automobile tailboard (also called car lifting tailboard, car loading/unloading tailboard, lifting tailboard, or hydraulic car tailboard) is a hydraulic lifting loading/unloading equipment powered by the vehicle’s on-board battery and installed at the tail of trucks and various vehicles.
Product Description
- Automobile tailboard (also called car lifting tailboard, car loading/unloading tailboard, lifting tailboard, or hydraulic car tailboard) is a hydraulic lifting loading/unloading equipment powered by the vehicle’s on-board battery and installed at the tail of trucks and various vehicles.
- It is widely used in industries including aerospace, military, fire protection, postal services, finance, petrochemicals, commerce, food, pharmaceuticals, environmental protection, logistics, and manufacturing. It can greatly improve the efficiency of transportation and loading/unloading, while also reducing costs. It is an essential piece of modern logistics transportation equipment.
specification
| Model | QWB 1.0 | QWB 1.5 | QWB 2.0 | QWB 2.5 | Remark |
| Platform Size (mm) | 1700×1600 | 1800×1600 | 2000×1800 | 2300×1800 | It can be made
according to the customer’s demands. |
| 1800×1600 | 1800×1700 | 2100×1800 | 2400×1800 | ||
| 1800×1700 | 1900×1700 | 2200×1800 | 2500×1800 | ||
| 1900×1700 | It can be made according the width ofdifferent vehicle | ||||
| Capacity (kg) | 1000 | 1500 | 2000 | 2500 | 1 |
| Self Weight (kg) | 350 | 450 | 500 | 550 | 1 |
| Motor Power (kW) | 1.6 | 1.6/2.2/2.5 | 2.2/2.5 | 3 | 1 |
| Motor | DC12V-24V/100AH-160AH | 1 | |||
| Frame Arm Length (mm) | 750 | 750/900 | 900 | 900 | 1 |
| Frame Inner Width (mm) | 846/948 | 846/948 | 948 | 948 | 1 |
| Height From Vehicle Box to Ground (mm) | 700-1050 | 700-1550 | 1050-1550 | 1050-1550 | 1 |
| Average Lifting Speed (mm/sec) | 60-80 | 60-80 | 60-80 | 60-80 | Speed can be controlled |
| Hydraulic Oil | 46# Hydraulic Oil | 1 | |||
| Platform Working Angle | 5°-9° | 5°-9° | 5°-9° | 5°-9° | 1 |
