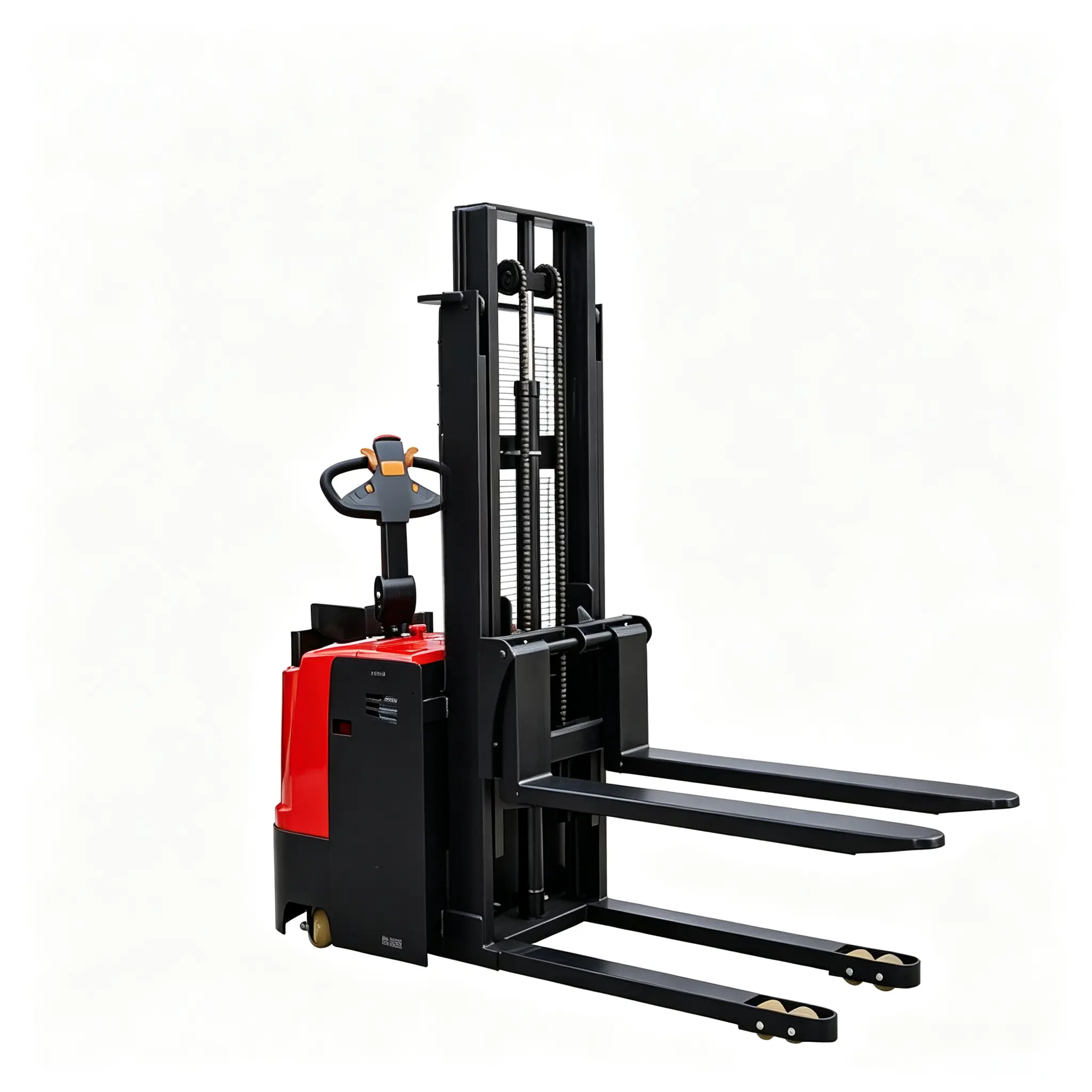

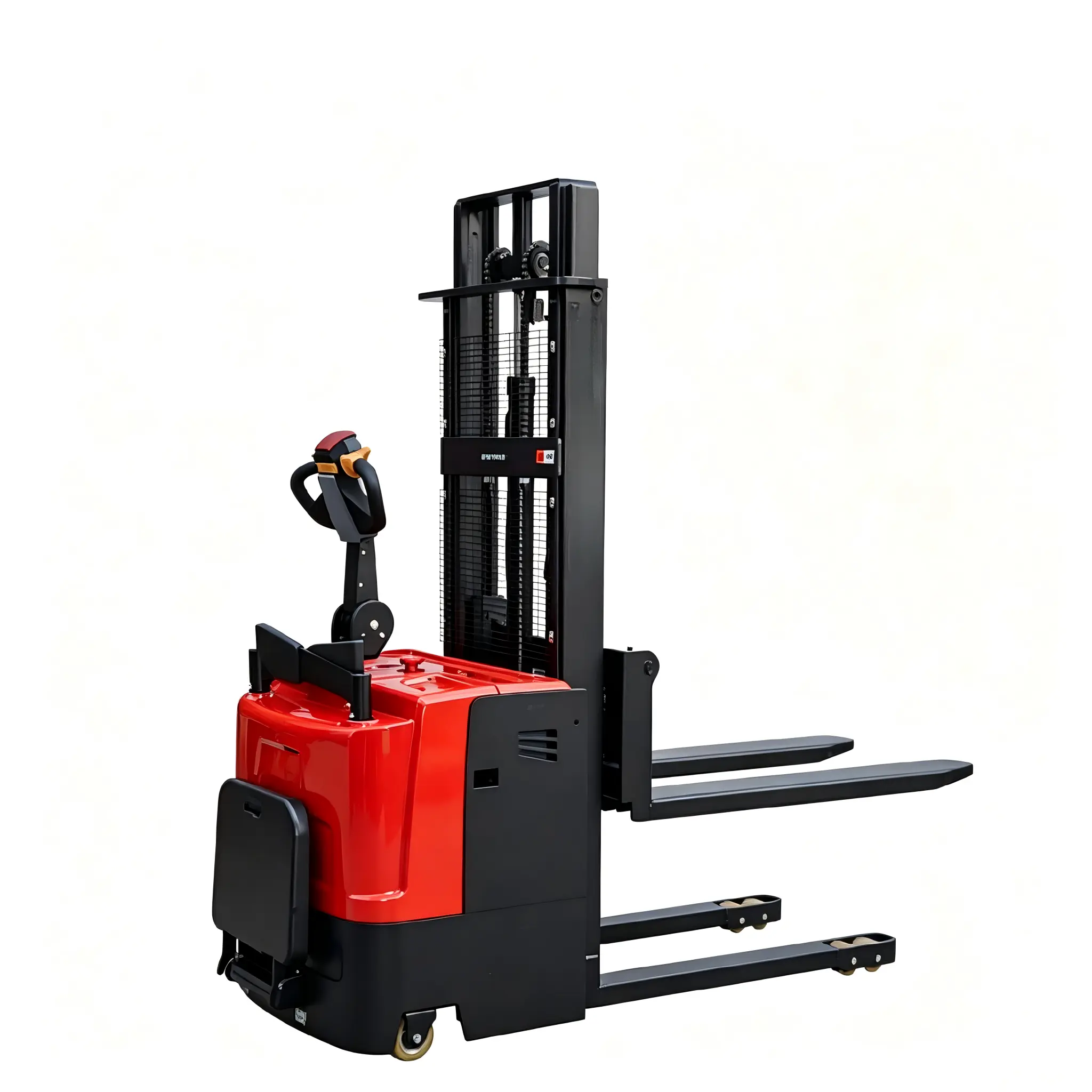

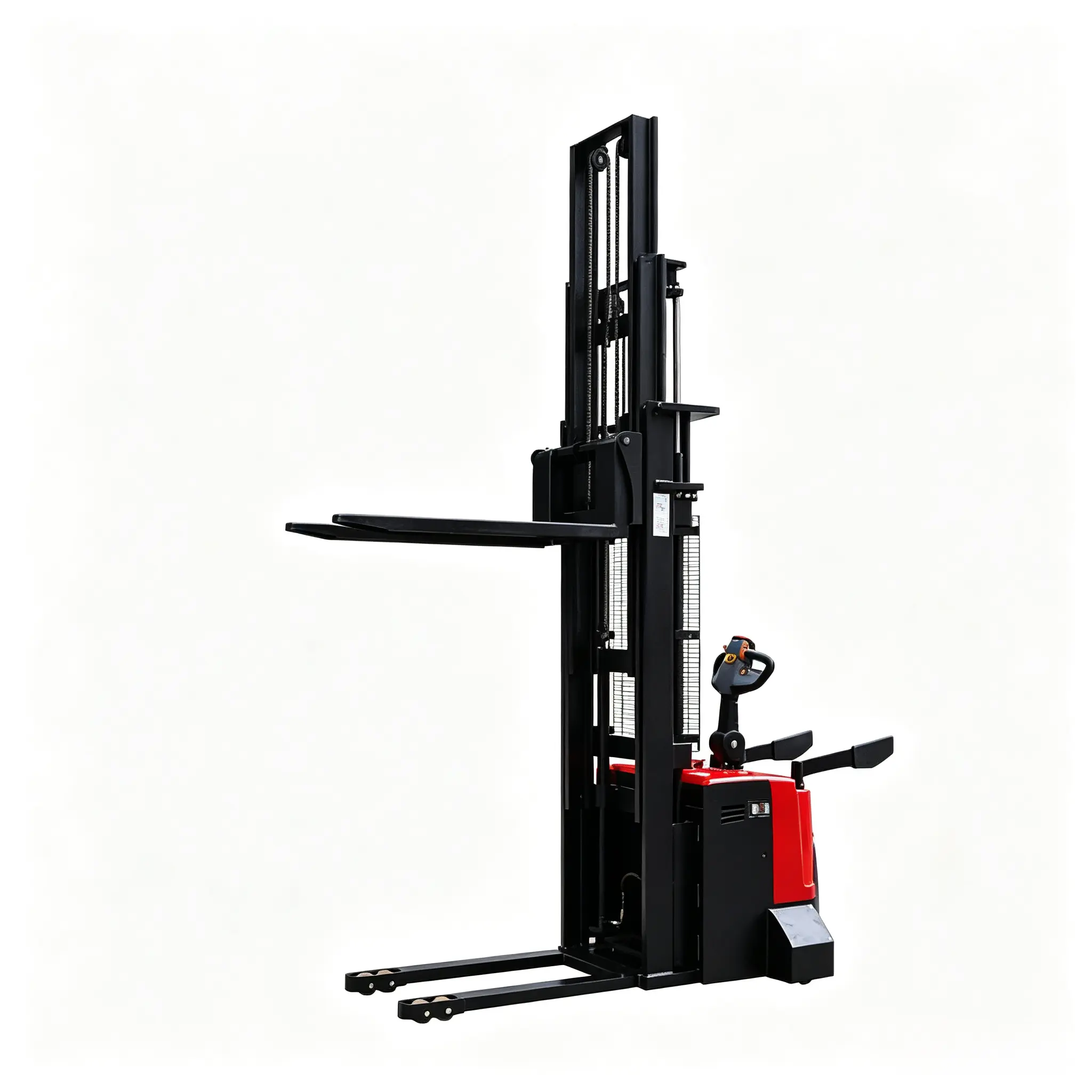

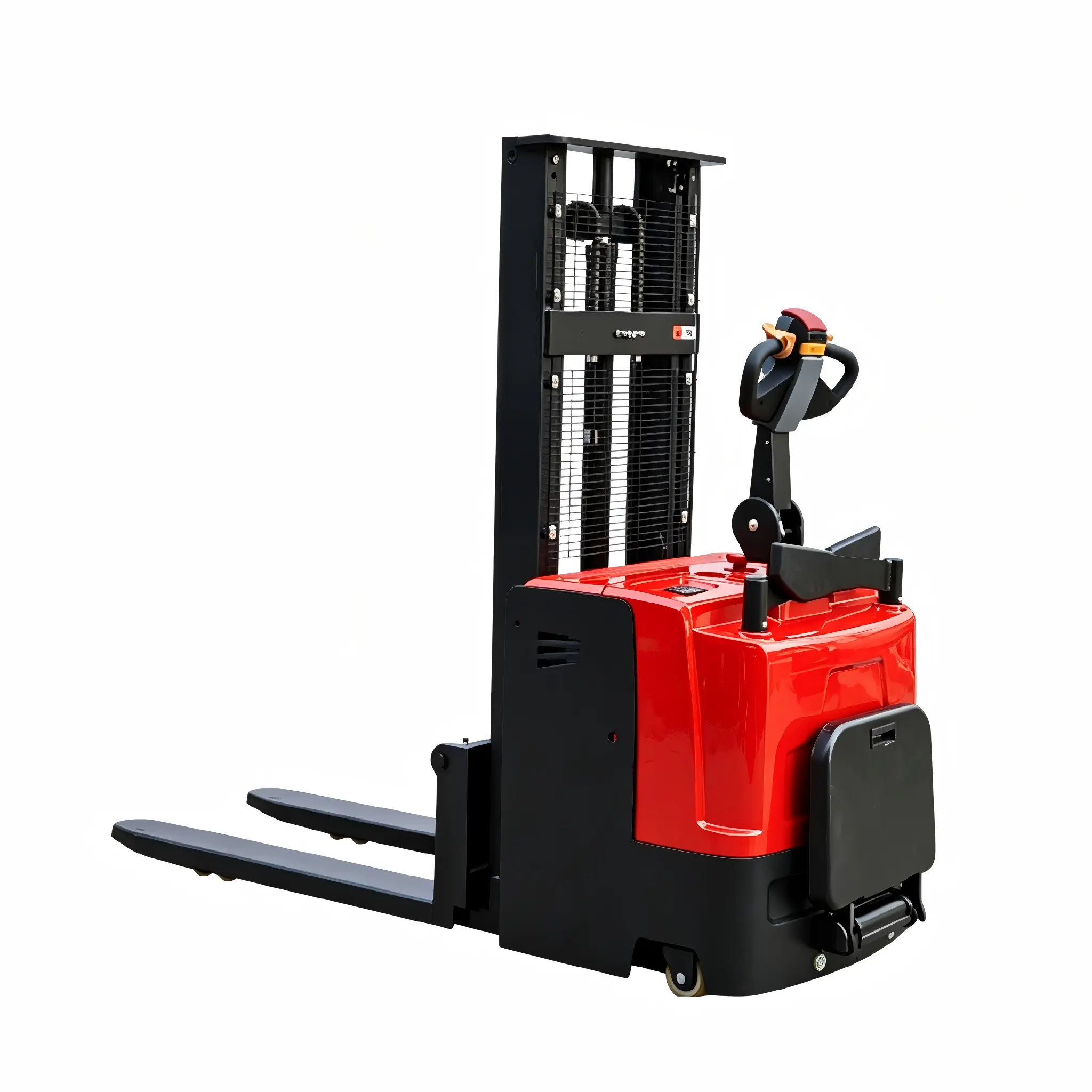

1.5T Electric Stand On Pallet Stacker
● 24V/120Ah gel maintenance-free battery;
● Optional: 210Ah lead-acid battery;
● AC 1.5kW horizontal drive motor;
● With emergency reverse button for safety;
● Ride-on platform can reduce worker’s fatigue;
● 12 Years’ Experience & 65,000 M 2 Factory;
● Europe EN Standard; ISO, CE, EU Certificates;
● Various Utility Model Patents;
● OEM/ODM Accept.
| Product Advantages
● 24V/120Ah gel maintenance-free battery; |
Product Description
▶ We’re professional electric stacker 1.5 ton manufacturers and suppliers in China, to buy or wholesale ride on pallet stacker from our factory. For quotation or if you have any questions, contact us now for customized stand on pallet stacker and price. ▶ Electric stacker 1.5 ton is a flagship stand-on electric pallet stacker, with a large load capacity and high lifting height. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent driving experience. It is highly efficient and suitable for warehouse and workshop operations.
|
Technical parameter
|
Specification |
|||||
|
Characteristics |
|||||
|
Model |
CDD15D | CDD20D | |||
| Operation |
Standed Pallet Stacker |
||||
|
Rated traction weight |
Q (kg) | 1500 | 2000 | ||
|
Mast type |
Singel mast | 2-stage | Singel mast |
2-stage |
|
| Lift | h3 (mm) | 1600 | 2000/2500/3000/3500 | 1600 |
2000/2500/3000/3500 |
|
Capacity at highest height |
kg | 1500 | 1500/1400/1100/800 | 2000 | 2000/1900/1500/1100 |
| Service weight with battery | kg | 630 | 690/720/745/770 | 705 |
750/775/800/825 |
|
Load centre |
c (mm) | 500 | |||
| Axle centre to fork face | x (mm) |
764 |
|||
|
Wheel base |
y (mm) | 1457 | |||
| Controller |
LVM24S20 (QEXPAND) |
||||
|
wheel |
|||||
| Wheels type |
Polyurethane |
||||
|
Driving wheel size |
φ×w | φ250×80 | |||
| Bearing wheel size | φ×w |
φ80×60 |
|||
|
Additional wheels(dimensions) |
φ×w | φ115×55 | |||
| Wheels,number front/rear(x=driven) |
1x, 2/4 |
||||
|
Dimensions |
|||||
| Height of mast,lowered | h1 (mm) | 2080 | 1580/1830/1980/2330 | 2080 |
1580/1830/1980/2330 |
|
Height of mast,extended |
h4 (mm) | 2080 | 2568/3068/3483/4068 | 2080 | 2568/3068/3483/4068 |
| Fork Height,Lowered | h13 (mm) |
88/86 |
|||
|
Overall length |
L1 (mm) | 2125 | |||
| Length to fork face | L2 (mm) |
975 |
|||
|
Overall width |
b1/b2 (mm) | 850 | |||
| Fork dimensions | s/e/L (mm) |
55/165/1150 |
|||
|
Width of forks |
b5 (mm) | 550/685 | |||
| Min.Ground clearance | m2 (mm) |
30 |
|||
|
Aisle width with pallet 1000×1200 along forks |
Ast (mm) |
2608 |
|||
|
Aisle width with pallet 800×1200 along forks |
Ast (mm) |
2536 |
|||
|
Min.Turning radius |
Wa (mm) | 1744 | |||
|
Performance |
|||||
|
Travel speed,with/without load |
(km/h) |
5.5/5.8 |
|||
|
Lifting speed,with/without load |
(mm/s) | 100/155 |
75/125 |
||
|
Lowering speed,with/without load |
(mm/s) | 100/110 | 95/100 | ||
| Max.gradeability laden/unladen | (mm/s) |
5/8 |
|||
|
Service brake |
(%) | Electromagnetic brake | |||
|
Drive and Battery |
|||||
|
Drive motor,output S2 60 min. |
(kW) | 1.5 | |||
| Lift motor rating at S3 15% | (kW) |
2.2 |
|||
|
Battery according to DIN 43531/35/36 A, B, C |
no | ||||
| Battery voltage/rated capacity | (V/Ah) |
24/120 |
|||
|
Battery weight (±5%) |
(kg) | 35×2 | |||
|
Others |
|||||
|
Noise level at operator ’sear |
(dB (A)) | 69 | |||
| Steering type |
Mechanical steering |
||||
