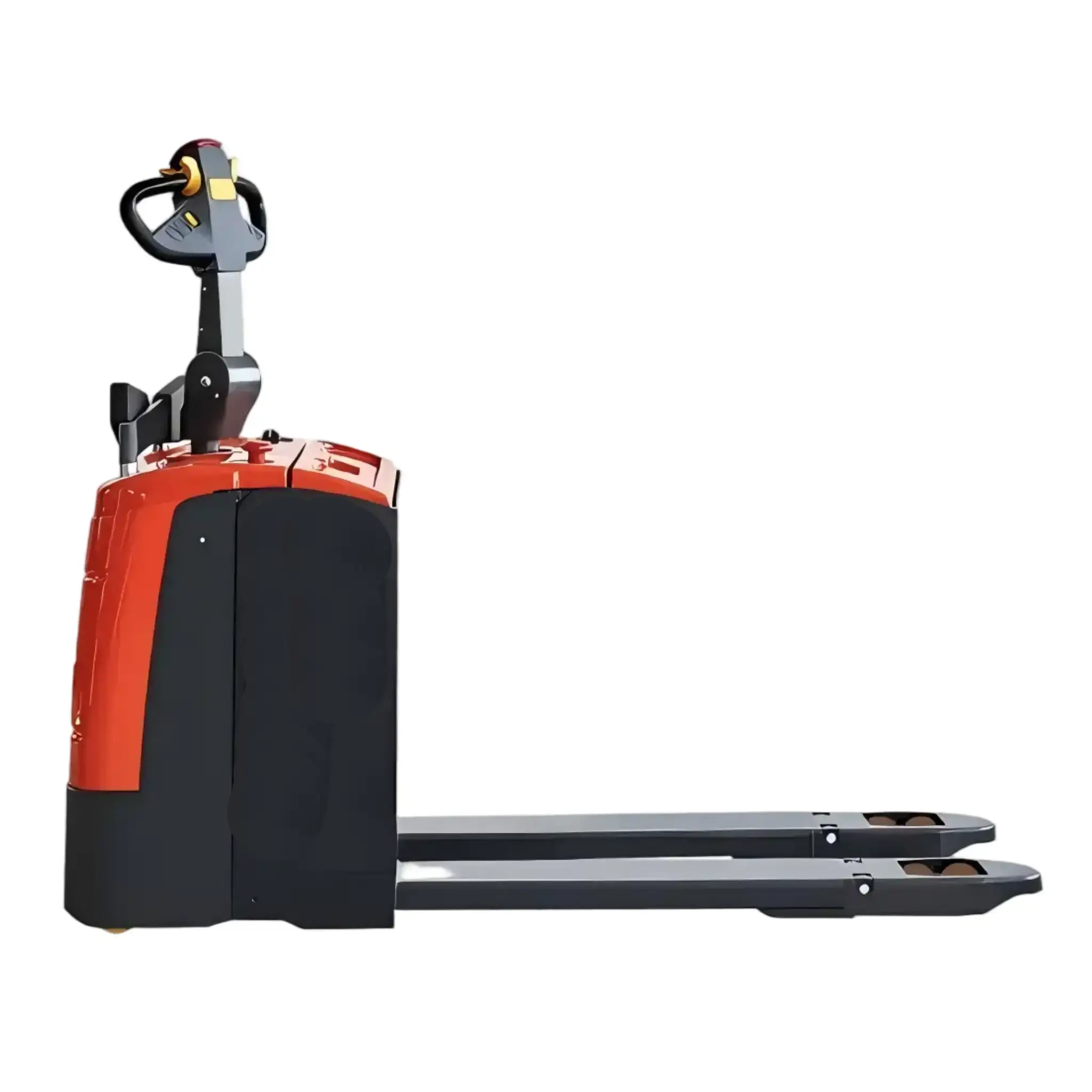

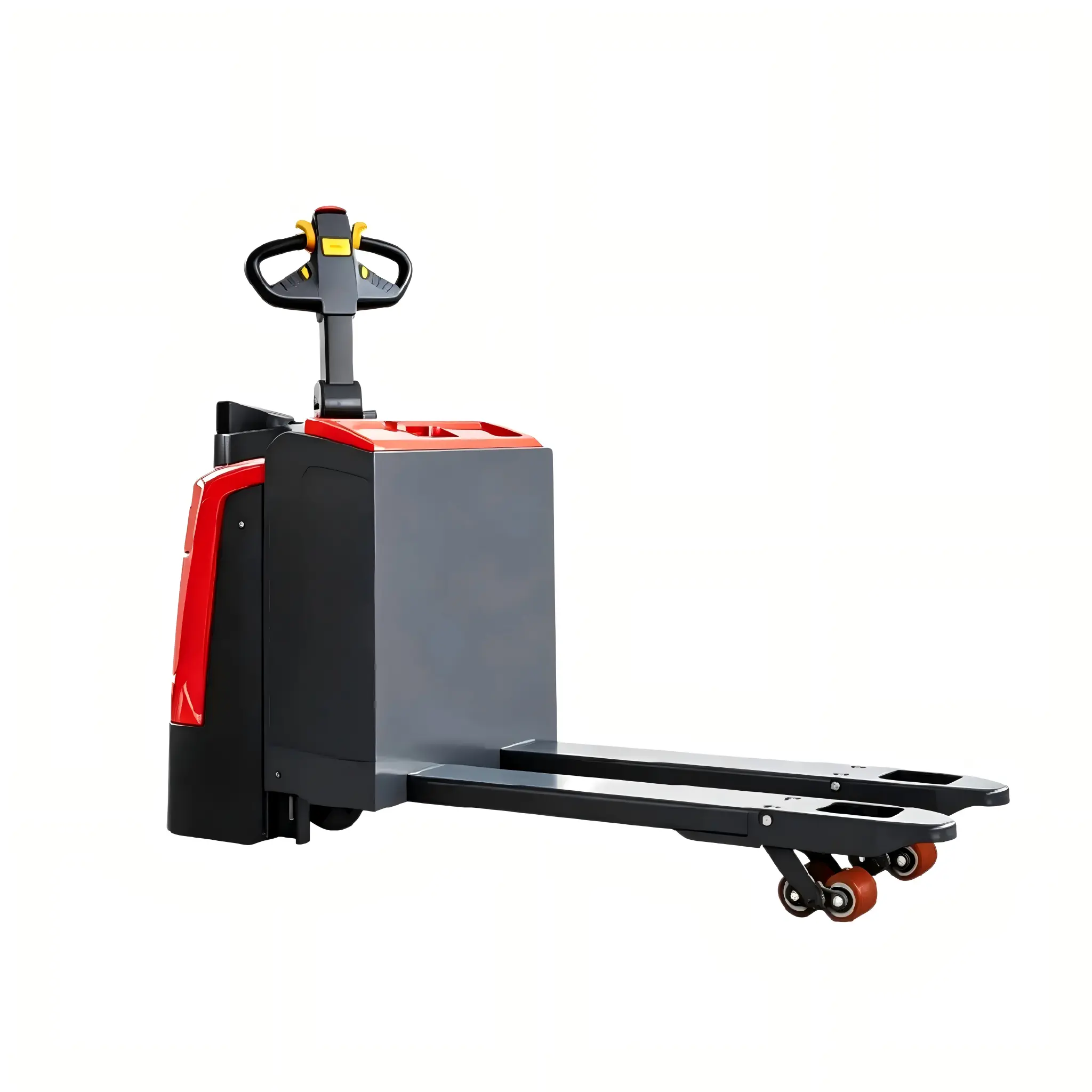

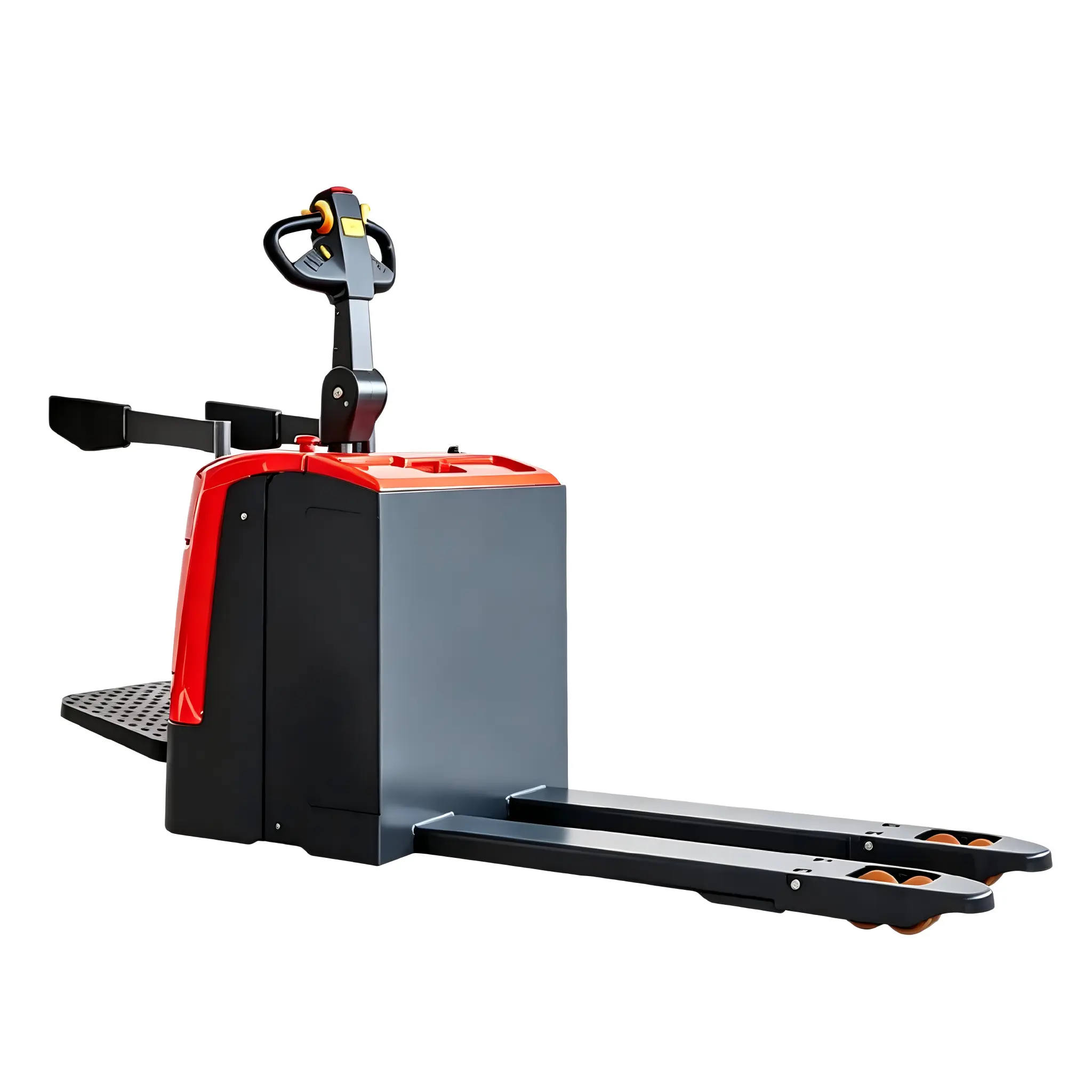

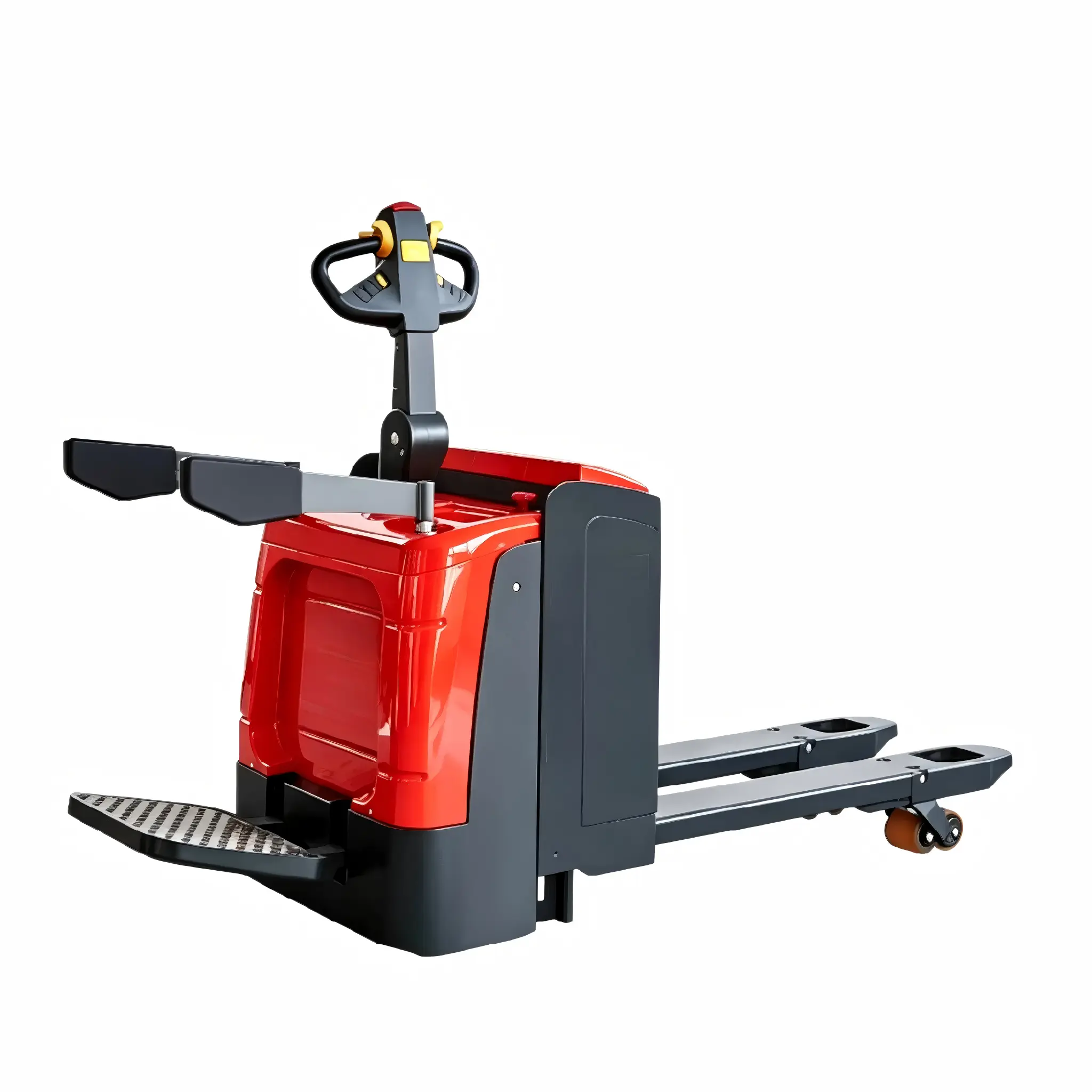

1.5T Stand On Pallet Truck
▲ With electric power steering (EPS) system;
▲ 24V/210Ah lead-acid battery;
▲ 1.6/2.2kW AC vertical drive motor;
▲ With emergency reverse button for safety;
▲ Fork’s length & width can be customized;
▲ Smart design, high efficiency;
▲ With heavy-duty cylinder;
▲ 12 Years’ Experience & 65,000 m² Factory;
▲ Various Utility Model Patents;
▲ OEM/ODM Accept.
| Product Advantages
▲ With electric power steering (EPS) system; ▲ 24V/210Ah lead-acid battery; ▲ 1.6/2.2kW AC vertical drive motor; ▲ With emergency reverse button for safety; ▲ Fork’s length & width can be customized; ▲ Smart design, high efficiency; ▲ With heavy-duty cylinder; ▲ 12 Years’ Experience & 65,000 m² Factory; ▲ Various Utility Model Patents; ▲ OEM/ODM Accept. |
Product Description
▲ We’re professional rideable electric pallet jack manufacturers and suppliers in China, to buy or wholesale stand on electric pallet jack from our factory. For quotation or if you have any questions, contact us now for customized ride on electric pallet jack and price. ▲ Rideable electric pallet jack has a super large tonnage load capacity and is equipped with a foldable stand-on pedal and an electric power steering system. It provides smooth operation and an excellent driving experience, and is highly efficient. |
Technical parameter
| Specification | |||||
| Model | CBD15E | CBD20E | |||
| Operation | Standed | ||||
| Rated traction weight | Q (kg) | 1500 | 2000 | ||
| Mast type | Singel mast | 2-stage | Singel mast | 2-stage | |
| Lift | h3 (mm) | 1600 | 2000/2500/3000/3500 | 1600 | 2000/2500/3000/3500 |
| Capacity at highest height | kg | 1500 | 1500/1400/1100/800 | 2000 | 2000/1900/1500/1100 |
| Service weight with battery | kg | 875 | 905/935/1005/1055 | 875 | 905/935/1005/1055 |
| Load centre | c (mm) | 500 | |||
| Axle centre to fork face | x (mm) | 764 | |||
| Wheel base | y (mm) | 1417 | |||
| Controller | LVM24S20 (QEXPAND) | ||||
| Wheels | |||||
| Wheels type | Polyurethane | ||||
| Driving wheel size | φ×w | φ230×75 | |||
| Bearing wheel size | φ×w | φ80×60 | |||
| Additional wheels(dimensions) | φ×w | φ115×55 | |||
| Wheels,number front/rear(x=driven) | 1x, 2/4 | ||||
| Dimensions | |||||
| Height of mast,lowered | h1 (mm) | 2080 | 1580/1830/1980/2330 | 2080 | 1580/1830/1980/2330 |
| Height of mast,extended | h4 (mm) | 2080 | 2568/3068/3483/4068 | 2080 | 2568/3068/3483/4068 |
| Fork Height,Lowered | h13 (mm) | 88/86 | |||
| Overall length | L1 (mm) | 2125 | |||
| Length to fork face | L2 (mm) | 975 | |||
| Overall width | b1/b2 (mm) | 850 | |||
| Fork dimensions | s/e/L (mm) | 55/165/1150 | |||
| Width of forks | b5 (mm) | 550/685 | |||
| Min.Ground clearance | m2 (mm) | 30 | |||
| Aisle width with pallet 1000×1200 along forks | Ast (mm) | 2608 | |||
| Aisle width with pallet 800×1200 along forks | Ast (mm) | 2536 | |||
| Min.Turning radius | Wa (mm) | 1744 | |||
| Performance | |||||
| Travel speed,with/without load | (km/h) | 5.5/6 | |||
| Lifting speed,with/without load | (mm/s) | 100/155 | 75/125 | ||
| Lowering speed,with/without load | (mm/s) | 100/110 | 95/100 | ||
| Max.gradeability laden/unladen | (mm/s) | 5/8 | |||
| Service brake | (%) | Electromagnetic brake | |||
| Drive and Battery | |||||
| Drive motor,output S2 60 min. | (kW) | 2.2 | |||
| Lift motor rating at S3 15% | (kW) | 2.2 | |||
| Battery according to DIN 43531/35/36 A, B, C | no | ||||
| Battery voltage/rated capacity | (V/Ah) | 24/210 | |||
| Battery weight (±5%) | (kg) | 180 | |||
| Others | |||||
| Noise level at operator ’sear | (dB (A)) | 69 | |||
| Steering type | Electronic steering | ||||
