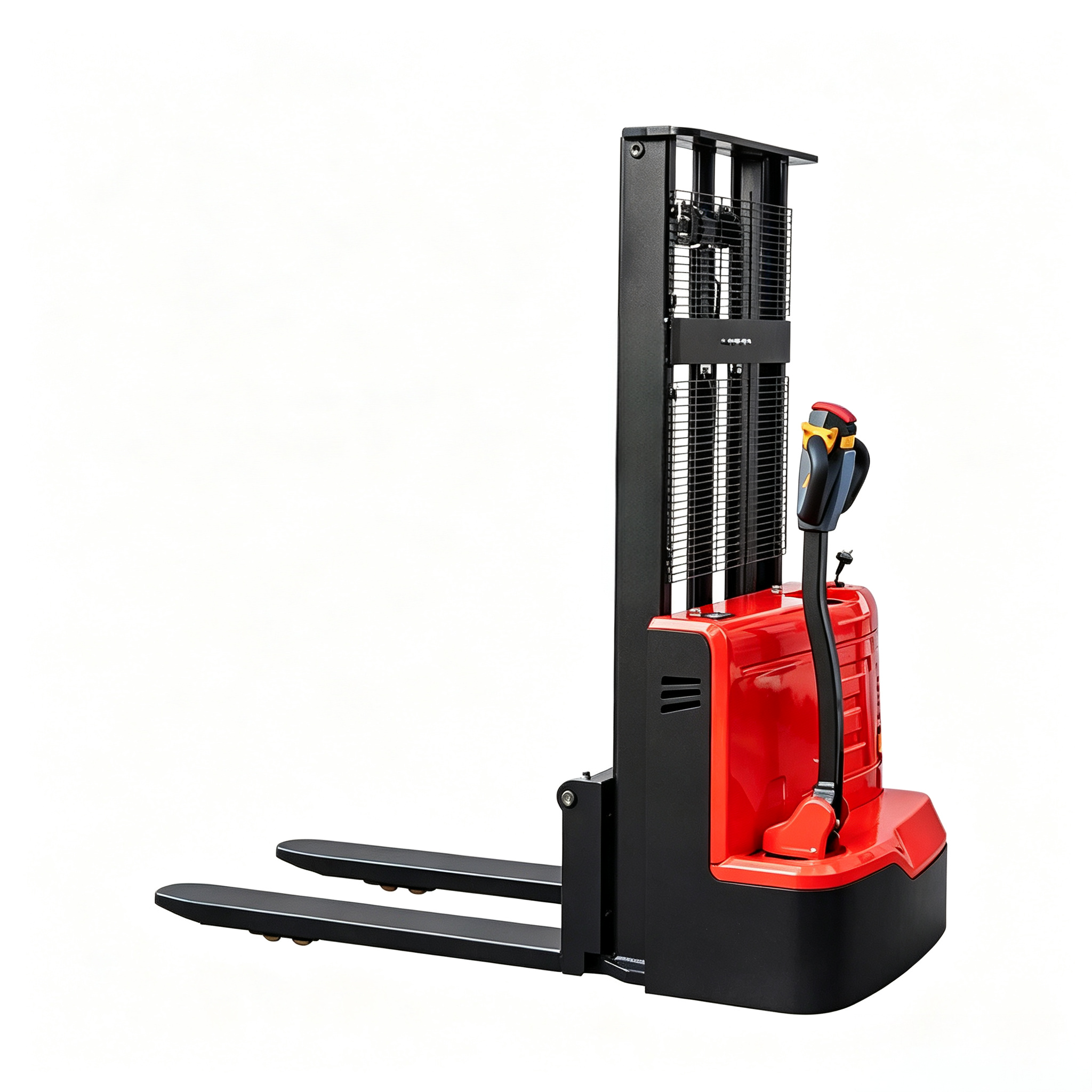

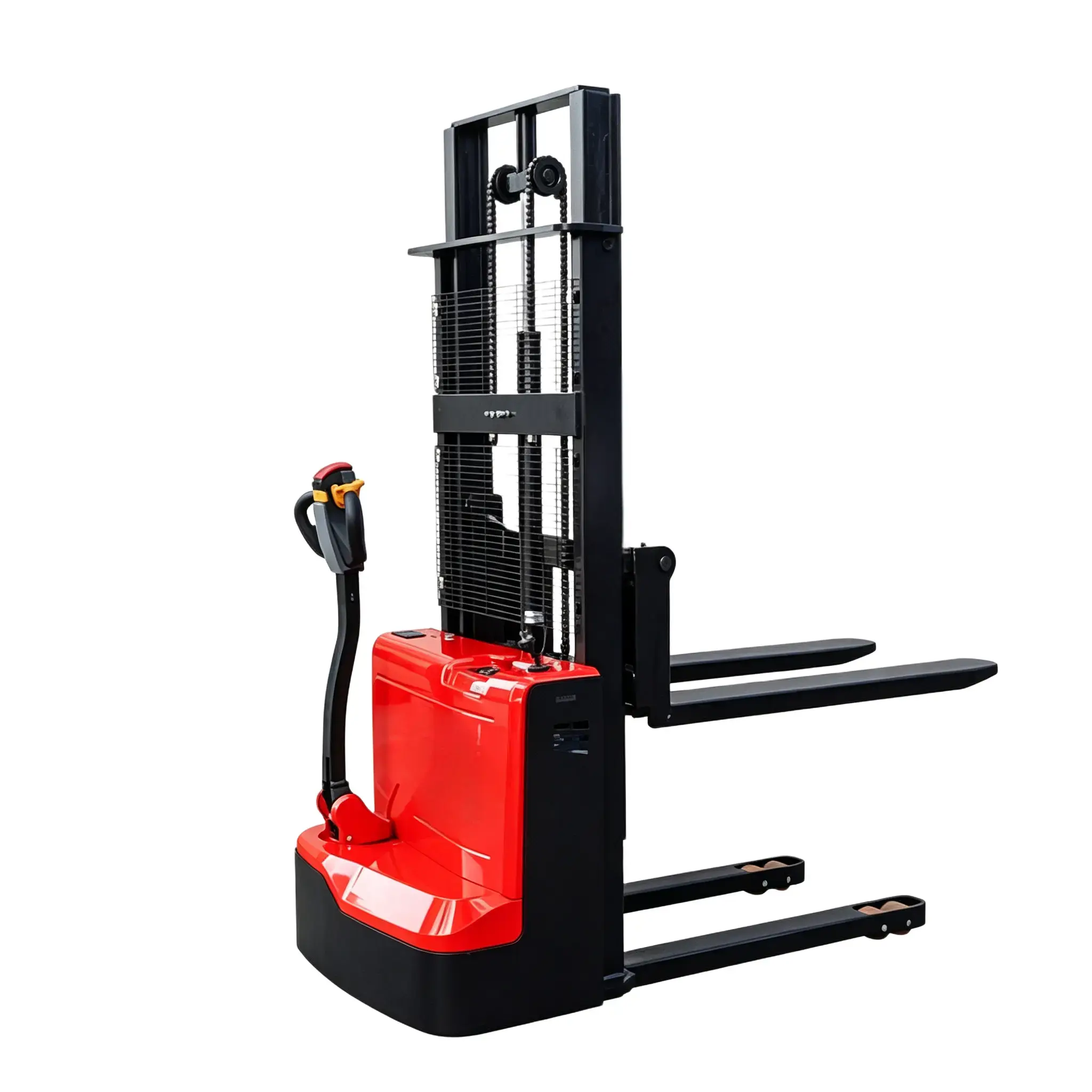

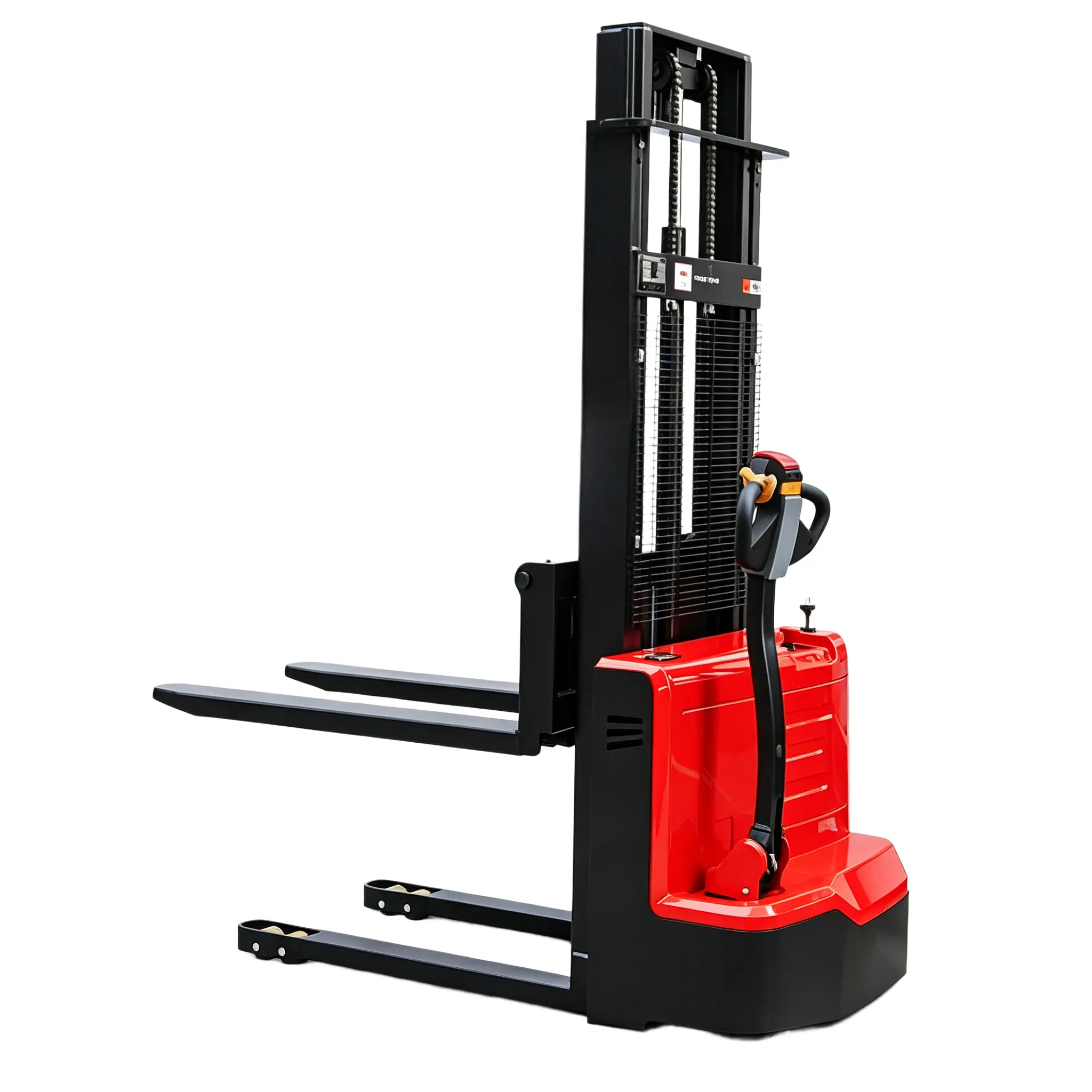

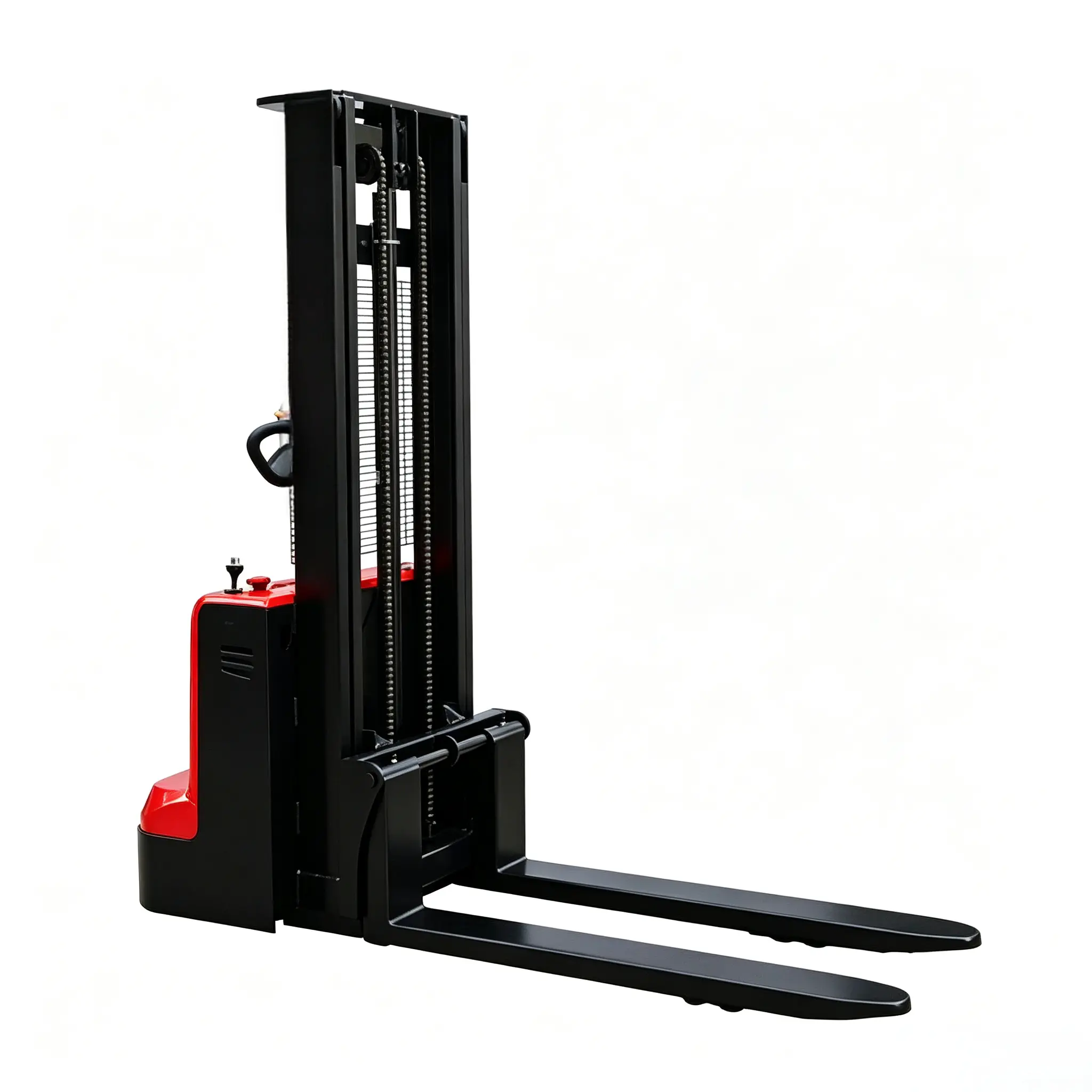

2T Electric Walkie Pallet Stacker
● Compact design and small turning radius,can be used in small aisle;
● Back-cover is integrated type design , easy to assemble and maintain;
● 24V/82Ah gel maintenance-free battery;
● High stability with adjustable auxiliary wheels;
● With emergency reverse button for safety;
● Long handle design, easy to use;
● 12 Years’ Experience & 65,000 M 2 Factory;
● Europe EN Standard; ISO, CE, EU Certificates;
● Various Utility Model Patents;
● OEM/ODM Accept.
| Product Advantages
● Compact design and small turning radius,can be used in small aisle; ● Back-cover is integrated type design , easy to assemble and maintain; ● 24V/82Ah gel maintenance-free battery; ● High stability with adjustable auxiliary wheels; ● With emergency reverse button for safety; ● Long handle design, easy to use; ● 12 Years’ Experience & 65,000 M 2 Factory; ● Europe EN Standard; ISO, CE, EU Certificates; ● Various Utility Model Patents; ● OEM/ODM Accept. |
Product Description
▶ We’re professional walkie pallet stacker manufacturers and suppliers in China, to buy or wholesale Walkie electric stacker 2 ton from our factory. For quotation or if you have any questions, contact us now for customized electric walkie stacker and price. ▶ This is an ideal and economical walkie electric pallet stacker, suitable for short distance transport and stacking. walkie pallet stacker is especially suitable for warehouse operations with small stacking aisles.
|
Technical parameter
| Specification | |||
| Characteristics | |||
| Model | CDDA20 | ||
| Operation | Walkie | ||
| Rated traction weight | Q (kg) | 2000 | |
| Mast type | Singel mast | 2-stage | |
| Lift | h3 (mm) | 1600 | 2000/2500/3000/3500 |
| Capacity at highest height | (kg) | 2000 | 2000/1900/1500/1100 |
| Service weight with battery | (kg) | 525 | 595/630/650/690 |
| Load centre | c (mm) | 500 | |
| Axle centre to fork face | x (mm) | 735 | |
| Wheel base | y (mm) | 1251 | |
| Controller | WTBL4890MB-C4 tianli | ||
| Wheels | |||
| Wheels type | Polyurethane | ||
| Driving wheel size | φ×w | φ210×75 | |
| Bearing wheel size | φ×w | φ80×60 | |
| Additional wheels(dimensions) | φ×w | φ115×55 | |
| Wheels,number front/rear(x=driven) | 1x, 1/4 | ||
| Dimensions | |||
| Height of mast,lowered | h1 (mm) | 2080 | 1580/1830/1980/2330 |
| Height of mast,extended | h4 (mm) | 2080 | 2565/3065/3480/4065 |
| Fork Height,Lowered | hl3 (mm) | 86 | |
| Overall length | L1 (mm) | 1854 | |
| Length to fork face | L2 (mm) | 704 | |
| Overall width | b1/b2 (mm) | 850 | |
| Fork dimensions | s/e/L (mm) | 55/165/1150 | |
| Width of forks | b5 (mm) | 550/685 | |
| Min.Ground clearance | m2 (mm) | 30 | |
| Aisle width with pallet 1000×1200 along forks | Ast (mm) | 2377 | |
| Aisle width with pallet 800×1200 along forks | Ast (mm) | 2307 | |
| Min.Turning radius | Wa (mm) | 1494 | |
| Performance | |||
| Travel spees,with/without load | (km/h) | 4.2/4.5 | |
| Lifting speed,with/without load | (mm/s) | 75/100 | |
| Lowering speed,with/without load | (mm/s) | 85/95 | |
| Max.gradeability laden/unladen | (mm/s) | 4/7 | |
| Service brake | (%) | Electromagnetic brake | |
| Drive and Battery | |||
| Drive motor,output S2 60 min. | (kW) | 0.9 | |
| Lift motor rating at S3 15% | (kW) | 2.2 | |
| Battery according to DIN 43531/35/36 A，B，C | no | ||
| Battery voltage/rated capacity | (V/Ah) | 48/65 | |
| Battery weight (±5%) | (kg) | 15×4 | |
| Others | |||
| Noise level at operator ‘sear | (dB (A)) | 69 | |
| Steering type | Mechanical steering | ||
