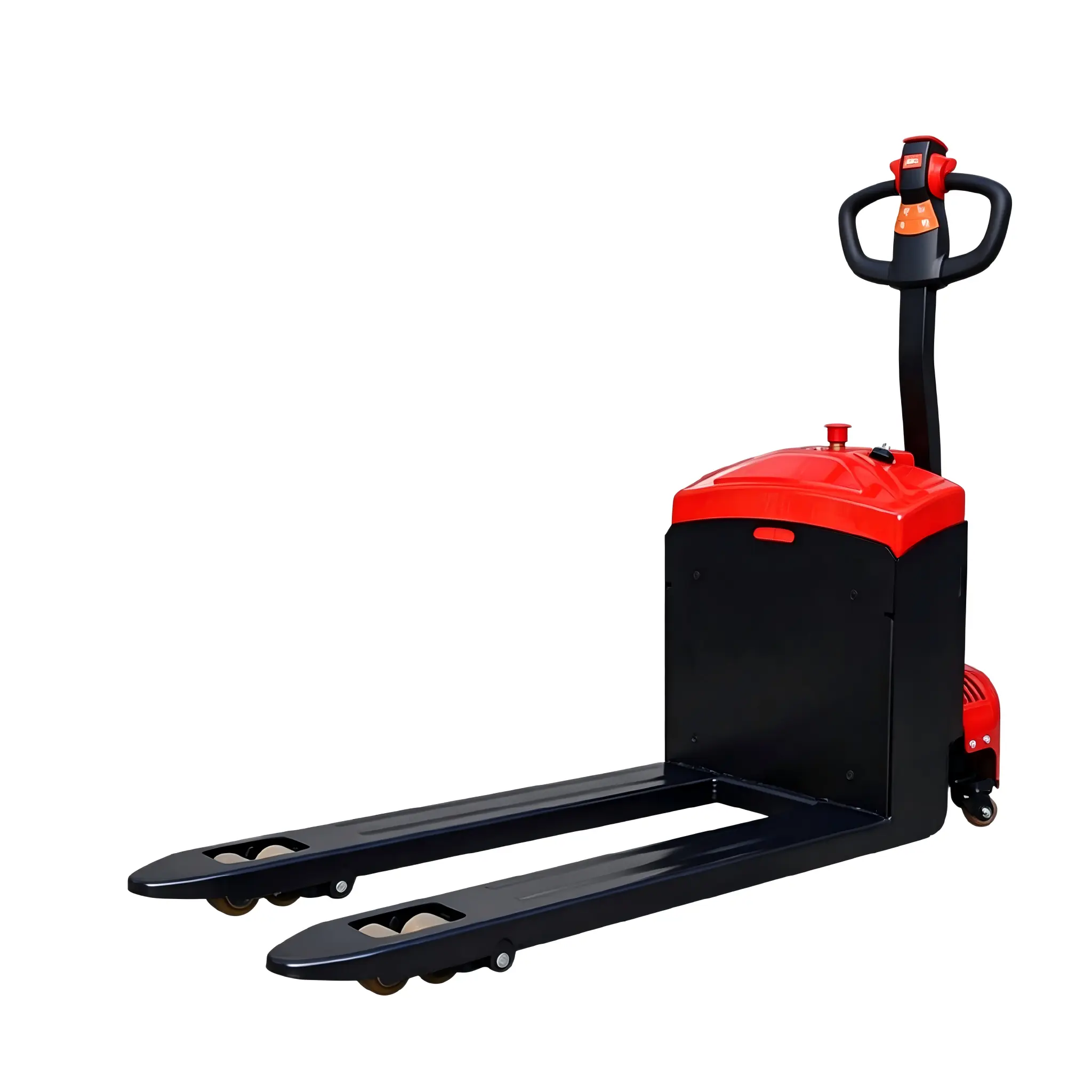

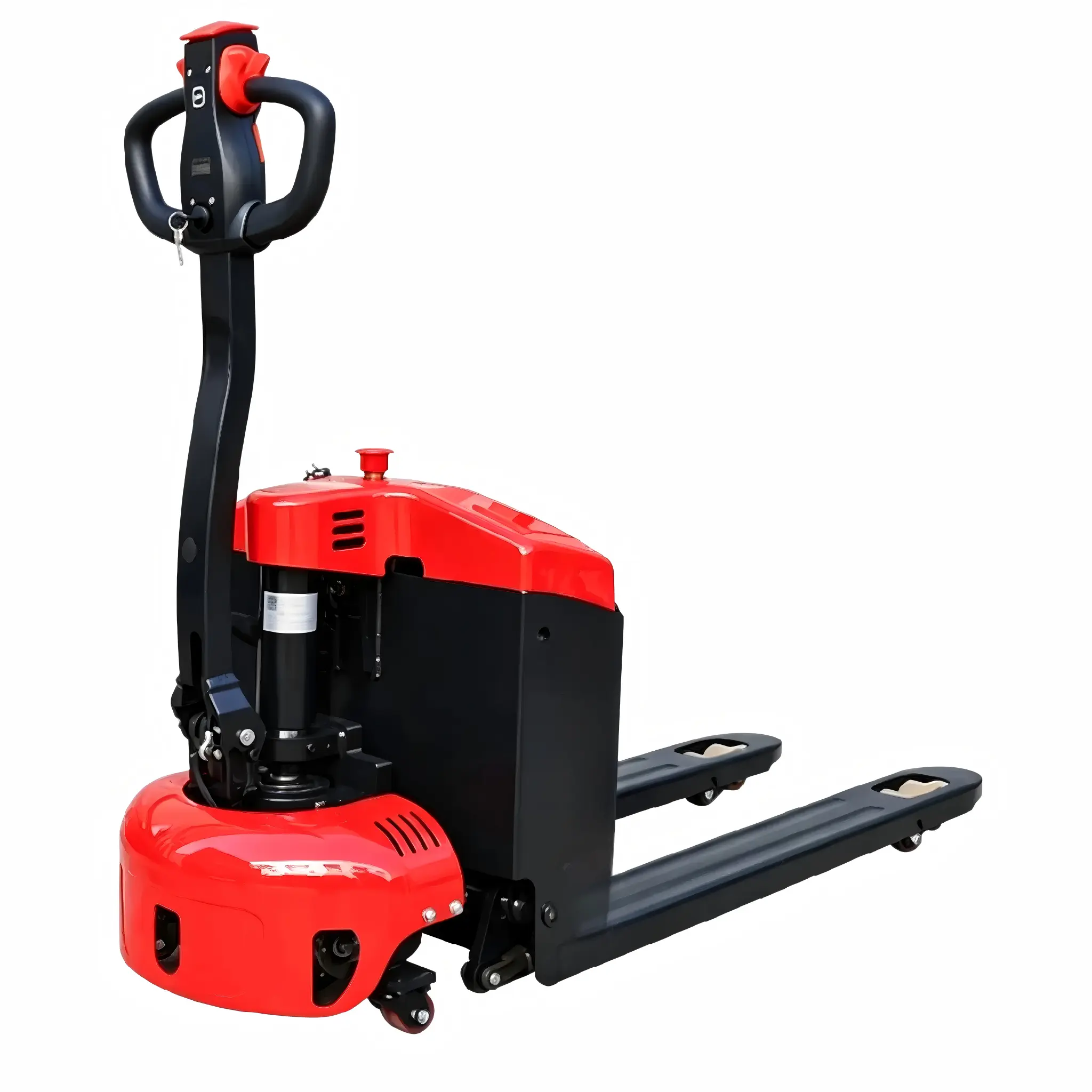

2T Electric Walkie Pallet Truck
▲ Ultra-compact design with minimal turning radius;
▲ Ergonomic long handle with intuitive controls;
▲ Safety enhancements;
▲ Maintenance-free operation;
▲ Adjustable fork width;
▲ 12 Years’ Experience & 65,000 ㎡ Factory;
▲ Various Utility Model Patents;
▲ OEM/ODM Accept.
| Product Advantages
▲ Ultra-compact design with minimal turning radius; ▲ Ergonomic long handle with intuitive controls; ▲ Safety enhancements; ▲ Maintenance-free operation; ▲ Adjustable fork width; ▲ 12 Years’ Experience & 65,000 ㎡ Factory; ▲ Various Utility Model Patents; ▲ OEM/ODM Accept. |
Product Description
▲.We’re professional 2 ton pallet truck manufacturers and suppliers in China, to buy or wholesale 2 ton pallet jack from our factory. For quotation or if you have any questions, contact us now for customized 2 ton electric pallet truck and price. |
Technical parameter
| Specification | |||
| Characteristics | |||
| Model | CBD20W | ||
| Operation | Walkie | ||
| Rated traction weight | Q (kg) | 2000 | |
| Lift | h3 (mm) | 205 | |
| Service weight with battery | kg | ||
| Load centre | c (mm) | 600 | |
| Axle centre to fork face | x (mm) | 958 | |
| Wheel base | y (mm) | 1274 | |
| Wheels | |||
| Wheels type | Polyurethane | ||
| Driving wheel size | ø×w | φ160×60 | |
| Bearing wheel size | ø×w | φ80×60 | |
| Wheels,number front/rear(x=driven) | 1x, 4 | ||
| Dimensions | |||
| Fork Height,Lowered | h13 (mm) | 85 | |
| Overall length | L1 (mm) | 1650 | |
| Length to fork face | L2 (mm) | 496/398 | |
| Overall width | b1/b2 (mm) | 578/685 | |
| Fork dimensions | s/e/L (mm) | 50/150/1164 | 50/150/1262 |
| Width of forks | b5 (mm) | 560/685 | |
| Min.Ground clearance | m2 (mm) | 35 | |
| Aisle width with pallet 1000×1200 along forks | Ast (mm) | 2135 | |
| Aisle width with pallet 800×1200 along forks | Ast (mm) | 2045 | |
| Min.Turning radius | Wa (mm) | 1453 | |
| Performance | |||
| Travel spees,with/without load | (km/h) | 4/4.5 | |
| Lifting speed,with/without load | (mm/s) | 20/30 | |
| Lowering speed,with/without load | (mm/s) | 40/30 | |
| Max.gradeability laden/unladen | (mm/s) | 5/16 | |
| Service brake | (%) | Electromagnetic brake | |
| Drive and Battery | |||
| Drive motor,output S2 60 min. | (kW) | 0.75 | |
| Lift motor rating at S3 15% | (kW) | 0.8 | |
| Battery according to DIN 43531/35/36 A, B, C | no | ||
| Battery voltage/rated capacity | (V/Ah) | 48/10 (15) | |
| Others | |||
| Noise level at operator ‘sear | (dB (A)) | 69 | |
| Steering type | Mechanical steering | ||
