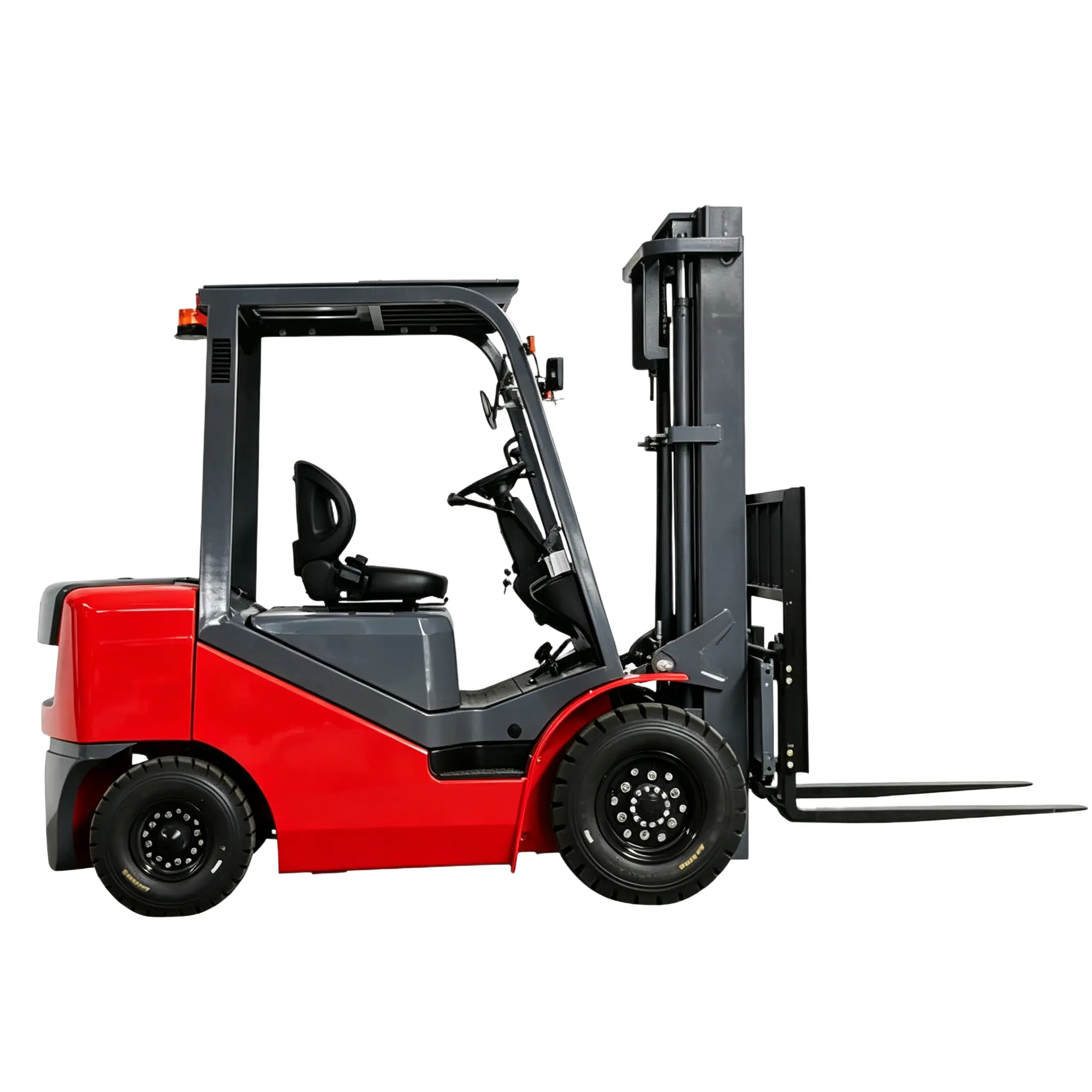

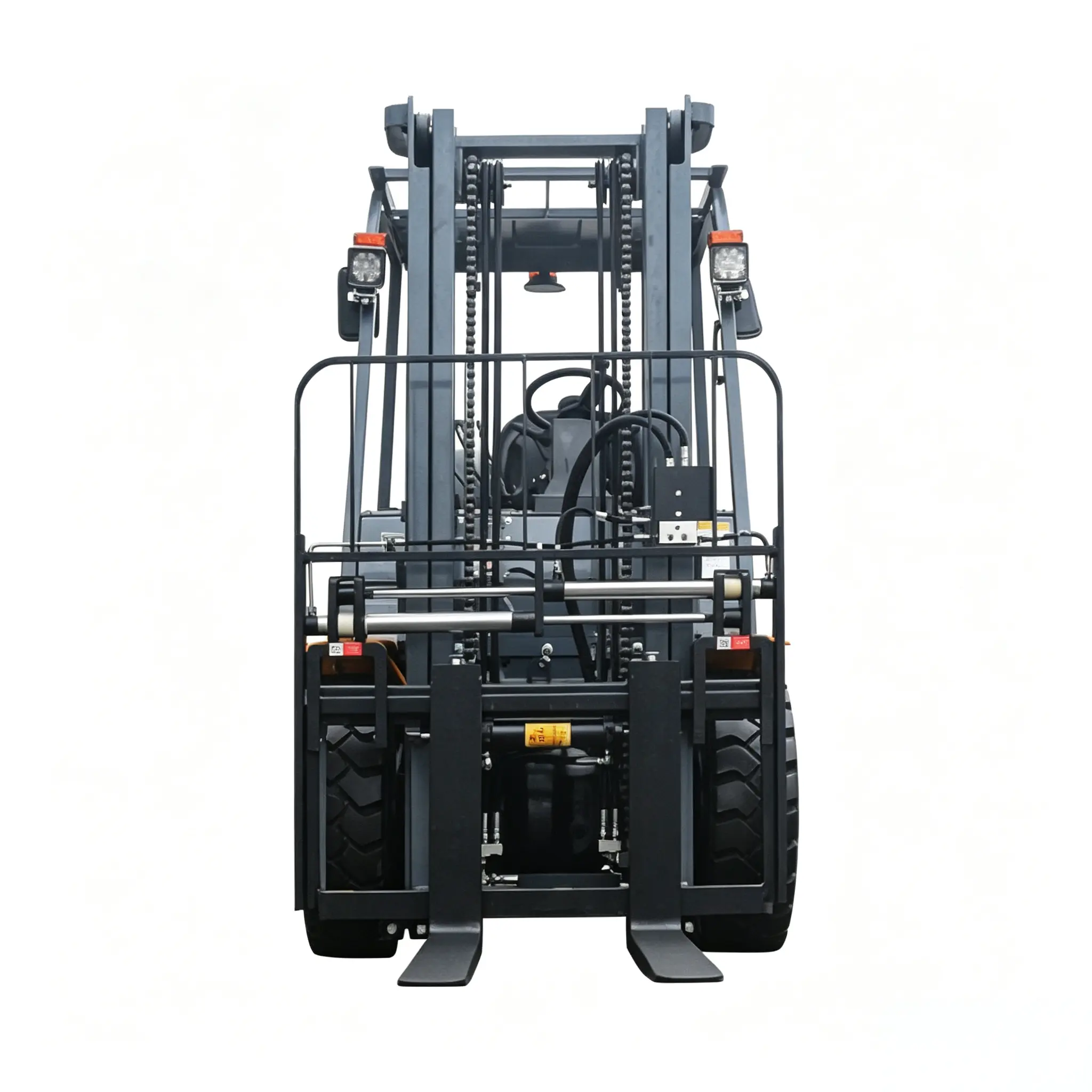

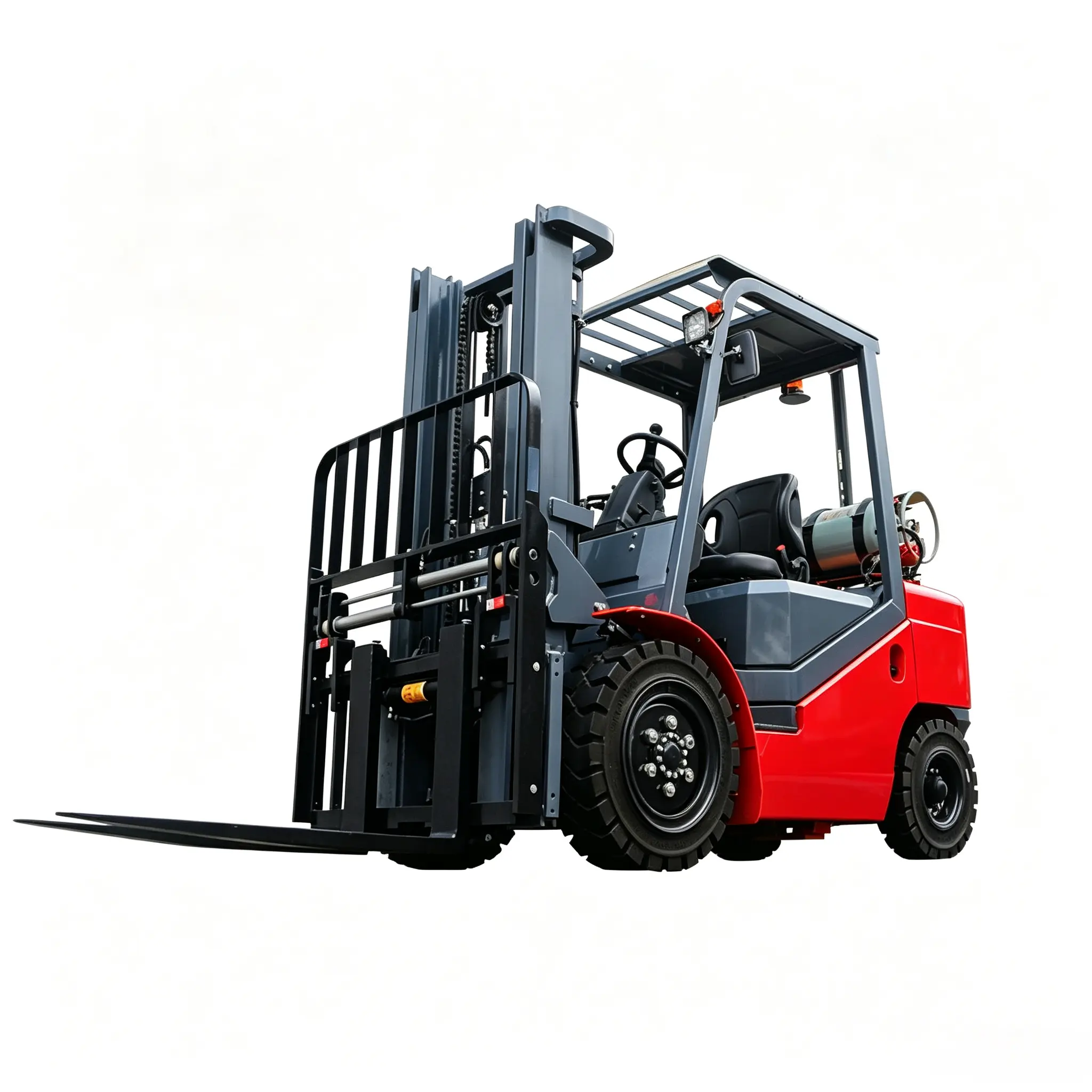

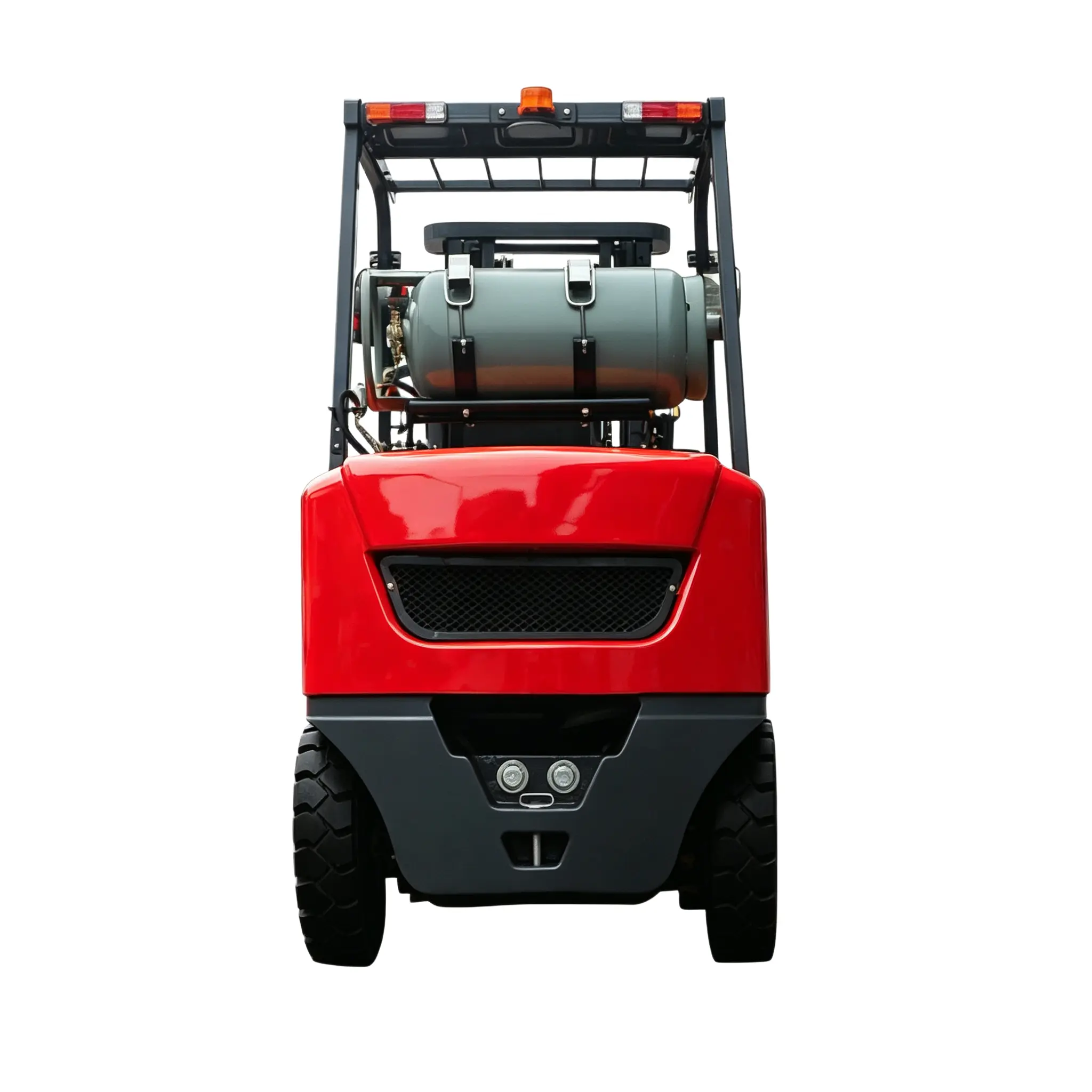

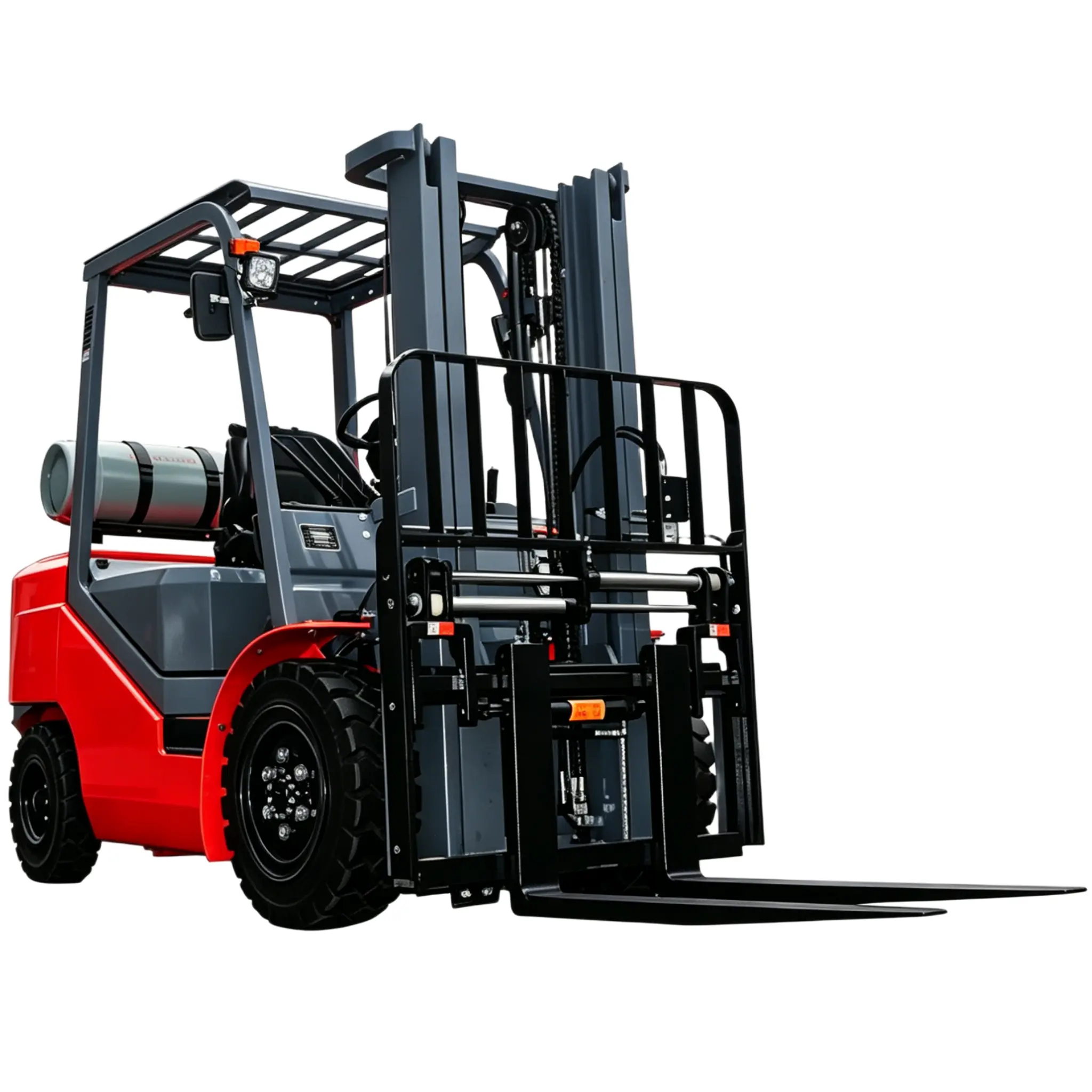

Diesel Forklift H Series 2.0-2.5 Ton
Heightening overhead guard with big circular arc structure of front legs enlarges the operating space and expands the operators visual fields. The new-type canopy shading operators from the sun and rain, reduces the driving fatigue effectively.
Product Description
1.New design overhead guard
Heightening overhead guard with big circular arc structure of front legs enlarges the operating space and expands the operators visual fields. The new-type canopy shading operators from the sun and rain, reduces the driving fatigue effectively.
2.Damping system
Substantially reduced vibration by adopting dual floating systems for both the engine and hood.
3.Power system
Equipped with Chinese or imported powerful engines with excellent environmental performance, Isuzu, Yanmar, Mitsubishi and Cummins engines are optional. The latest low-emission engine runs within the limit of National stage III, Euro III and above emission standards, and lowers the pollutant emission effectively.
4.Security system
Equipped with OPS system as optional. When the operator leaves the seat during operation, the system will cut off the driving power to avoid accidents.
5.Easy and comfortable operation
The operation lever is placed on the right of the driver, reversing lever and light handle in vehicle layout, together with small diameter steering wheel and instrument panel with concise meter, making the operation easier and more comfortable.
| WIDE VIEW MAST | |||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center 500mm | Mast overall height (mm) | Mast tilting angle ° (front/rear) | |
| 2t | 2.5t | 2-2.5t | |||
| M300 | 3000 | 2000 | 2500 | 1995 | 6/12 |
| M330 | 3300 | 2000 | 2500 | 2145 | 6/12 |
| M350 | 3500 | 2000 | 2500 | 2245 | 6/12 |
| M370 | 3700 | 2000 | 2500 | 2345 | 6-6*6-6 |
| M400 | 4000 | 2000 | 2500 | 2545 | 6-6*6-6 |
| M450 | 4500 | 1600*1900 | 2100*2400 | 2795 | 6-6*6-6 |
| M500 | 5000 | 1200*1700 | 1600*1900 | 3045 | 6-6*6-6 |
| M550 | 5500 | 950*1200 | 1200*1700 | 3345 | *3-6 |
| M600 | 6000 | 700*1500 | 900*1400 | 3595 | *3-6 |
| WIDE VIEW FULL FREE 2-STAGE MAST | ||||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center 500mm | Mast overall height (mm) | Free lifting height (with backrest)(mm) | Mast tilting angle ° (front/rear) | |
| 2t | 2.5t | 2-2.5t | ||||
| ZM300 | 3000 | 2000 | 2500 | 1995 | 995 | 6/12 |
| ZM330 | 3300 | 2000 | 2500 | 2145 | 1145 | 6/12 |
| ZM350 | 3500 | 2000 | 2500 | 2245 | 1245 | 6/12 |
| ZM400 | 4000 | 2000 | 2500 | 2545 | 1545 | 6-6*6-12 |
| ZM450 | 4500 | 1800*1900 | 2150*2400 | 2795 | 1795 | *6-6 |
| ZM500 | 5000 | 1500*1700 | 1650*2200 | 3045 | 2045 | *6-6 |
| WIDE VIEW FULL FREE 3-STAGE MAST | ||||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center 500mm | Mast overall height (mm) | Free lifting height (with backrest)(mm) | Mast tilting angle ° (front/rear) | |
| 2t | 2.5t | 2-2.5t | ||||
| ZSM360 | 3600 | 2000 | 2500 | 1695 | 655 | 6-6*6-6 |
| ZSM400 | 4000 | 1600*2500 | 1700*2500 | 1830 | 778 | 6-6*6-6 |
| ZSM450 | 4500 | 1250*1700 | 1500*2200 | 1995 | 995 | 6-6*6-6 |
| ZSM480 | 4800 | 1100*1500 | 1300*2000 | 2095 | 1078 | 6-6*6-6 |
| ZSM500 | 5000 | 1100*1300 | 1300*1800 | 2165 | 1121 | 3-6*3-6 |
| ZSM550 | 5500 | 900*1100 | 1100*1600 | 2350 | 1360 | 3-6*3-6 |
| ZSM600 | 6000 | 700*1300 | 1100*1400 | 2550 | 1505 | 3-6*3-6 |
| Technical datas | |||||||||
| Model | CPCD20H | CPQD20H | CPQYD20H | CPCD25H | CPQD25H | CPQYD25H | |||
| General | |||||||||
| 1.01 | Rated capacity | Q | Kg | 2000 | 2000 | 2500 | 2500 | ||
| 1.02 | Load center distance | C | mm | 500 | 500 | 500 | 500 | ||
| 1.03 | Power type | Diesel | Gasoline / LPG | Diesel | Gasoline / LPG | ||||
| 1.04 | Driving type | Seated | Seated | Seated | Seated | ||||
| 1.05 | Wheel base | L1 | mm | 1600 | 1600 | 1600 | 1600 | ||
| Tyres | |||||||||
| 2.01 | Tyre type | Pneumatic | Pneumatic | Pneumatic | Pneumatic | ||||
| 2.02 | Wheel number (front/rear) | 2X/2 | 2X/2 | 2X/2 | 2X/2 | ||||
| 2.03 | Front tread | W3 | mm | 970 | 970 | 970 | 970 | ||
| 2.04 | Rear tread | W2 | mm | 970 | 970 | 970 | 970 | ||
| 2.05 | Tyre (front) | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||||
| 2.06 | Tyre (rear) | 6.00-9-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.00-9-10PR | ||||
| Size | |||||||||
| 3.01 | Front overhang | L2 | mm | 469 | 469 | 489 | 489 | ||
| 3.02 | Mast tilting angle, front/rear | α/β | ° | 6/12 | 6/12 | 6/12 | 6/12 | ||
| 3.03 | Height with mast retraction | H1 | mm | 2000 | 2000 | 2000 | 2000 | ||
| 3.04 | Free lifting height | H3 | mm | 150 | 150 | 150 | 150 | ||
| 3.05 | Max. lifting height | H | mm | 3000 | 3000 | 3000 | 3000 | ||
| 3.06 | Max. height after lifting | H2 | mm | 4042 | 4042 | 4042 | 4042 | ||
| 3.07 | Overall guard height | H4 | mm | 2090 | 2090 | 2090 | 2090 | ||
| 3.08 | Fork size: length x width x thickness | LxWxT | mm | 1070×100×40 | 1070×100×40 | 1070×120×40 | 1070×120×40 | ||
| 3.09 | Overall length (fork excluded) | L | mm | 2560 | 2560 | 2575 | 2575 | ||
| 3.10 | Overall width | W1 | mm | 1150 | 1150 | 1150 | 1150 | ||
| 3.11 | Turning radius | r | mm | 2170 | 2170 | 2240 | 2240 | ||
| 3.12 | Ground clearance of mast | H5 | mm | 110 | 110 | 110 | 110 | ||
| 3.13 | Ground clearance of wheel base center (loaded) | H6 | mm | 155 | 155 | 135 | 135 | ||
| 3.14 | Lateral fork adjustment Max./Min. | W5 | mm | 1024/200 | 1024/200 | 1024/240 | 1024/240 | ||
| Performance | |||||||||
| 4.01 | Travelling speed (loaded/unloaded) | km/h | 17/19 | 17/19 | 17/19 | 17/19 | |||
| 4.02 | Lifting speed (loaded/unloaded) | mm/s | 530/550 | ||||||
| 4.03 | Lowering speed (loaded/unloaded) | mm/s | 450/550 | ||||||
| 4.04 | Gradeability (loaded/unloaded) | % | 27/25 | 27/25 | 23/18 | 23/18 | |||
| 4.05 | Max. traction force (loaded/unloaded) | KN | 19/14 | 19/14 | 19/15 | 19/15 | |||
| Weight | |||||||||
| 5.01 | Total weight | Kg | 3270 | 3270 | 3630 | 3630 | |||
| 5.02 | Axle load (unloaded), front/rear | Kg | 1474/1800 | 1474/1800 | 1707/2240 | 1707/2240 | |||
| 5.03 | Axle load (loaded), front/rear | Kg | 4655/690 | 4655/690 | 5475/805 | 5475/805 | |||
| Combustion engine | |||||||||
| 6.01 | Engine manufacturer /Model | XINCHAI C490BPG | GQ-4Y | XINCHAI C490BPG | GQ-4Y | ||||
| 6.02 | Rated power /Speed | Kw/rpm | 40/2650 | 46/2800(GAS)35/2300(LPG) | 40/2650 | 46/2800(GAS)35/2300(LPG) | |||
| 6.03 | Max. torque /Speed | Nm/rpm | 160/1800 | 176/1600(GAS)176/1600(LPG) | 160/1800 | 176/1600(GAS)176/1600(LPG) | |||
| 6.04 | Cylinder number-bore×stroke | 4-90×105 | 4-91×86 | 4-90×105 | 4-91×86 | ||||
| 6.05 | Engine displacement | L | 2.67 | 2.237 | 2.67 | 2.237 | |||
| 6.06 | Emission | Stage II | Stage II | Stage II | Stage II | ||||
| Transmission | |||||||||
| 7.01 | Transmission gears (front/rear) | 1-1 Power Shift | 1-1 Power Shift | 1-1 Power Shift | 1-1 Power Shift | ||||
| 7.02 | Fuel tank capacity | L | 60 | 60 | 60 | 60 | |||
| Additional data | |||||||||
| 8.01 | Service brake / parking brake | Hydraulic / mechanical | Hydraulic / mechanical | Hydraulic / mechanical | Hydraulic / mechanical | ||||
| 8.02 | Hydraulic system working pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | |||
