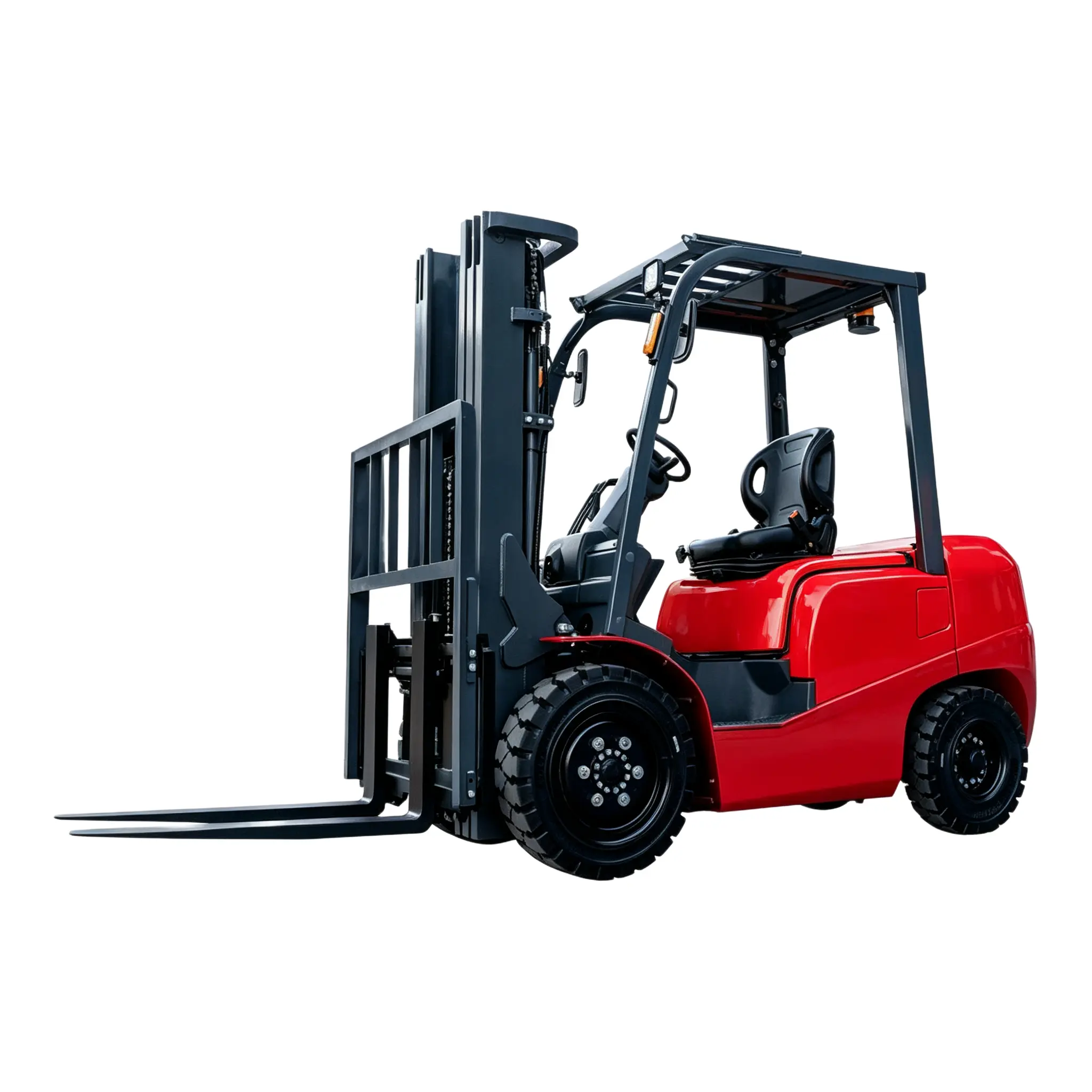

Diesel Forklift T Series 3.0-3.5 Ton
The external diameter of the steering wheel reduces to 300 mm, which reduces operator’s fatigue and improves the operating comfortability.
Product Description
1.Small diameter
The external diameter of the steering wheel reduces to 300 mm, which reduces operator’s fatigue and improves the operating comfortability.
2.Integrated overall headguard
The integrated front leg, headguard unit and rear leg improve the strength of the headguard.
3.Extra wide steps
The width of steps increases by 55%, making it more secure to get on and off the forklift.
4.Spacious floor
The tilting cylinder is placed under the floor, increasing the floor area by 45%, and making it easier to get on and off the forklift.
5.Big opening angle for engine hood
The engine hood can be opened by 82 ° maximally, which increases the view space and operation efficiency enormously.
| WIDE VIEW MAST | ||||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center 500mm | Mast overall height (mm) | Mast tilting angle ° (front/rear) | ||
| 3t | 3.5t | 3t | 3.5t | |||
| M300 | 3000 | 3000 | 3500 | 2065 | 2120 | 6/12 |
| M330 | 3300 | 3000 | 3500 | 2215 | 2270 | 6/12 |
| M350 | 3500 | 3000 | 3500 | 2345 | 2370 | 6/12 |
| M370 | 3700 | 3000 | 3500 | 2415 | 2470 | 6-6*6-12 |
| M400 | 4000 | 3000 | 3500 | 2615 | 2670 | 6-6*6-6 |
| M450 | 4500 | 2600*1900 | 3300*2500 | 2795 | 2850 | 6-6*6-6 |
| M500 | 5000 | 1600*2100 | 2400*2700 | 3045 | 3100 | 6-6*6-6 |
| M550 | 5500 | 1200*1600 | 1800*2300 | 3345 | 3395 | *3-6 |
| M600 | 6000 | 700*1200 | 1400*2000 | 3665 | 3565 | *3-6 |
| WIDE VIEW FULL FREE 2-STAGE MAST | |||||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center 500mm | Mast overall height (mm) | Free lifting height (with backrest)(mm) | Mast tilting angle ° (front/rear) | ||
| 3t | 3.5t | 3t | 3.5t | ||||
| ZM300 | 3000 | 3000 | 3500 | 2065 | 2120 | 825 | 6/12 |
| ZM330 | 3300 | 3000 | 3500 | 2215 | 2270 | 995 | 6/12 |
| ZM350 | 3500 | 3000 | 3500 | 2345 | 2345 | 1245 | 6/12 |
| ZM400 | 4000 | 3000 | 3500 | 2615 | 2670 | 1375 | 6-6*6-12 |
| ZM450 | 4500 | 2700*2300 | 3300*2500 | 2795 | 2845 | 1620 | 6-6*6-12 |
| ZM500 | 5000 | 2400*2400 | 2400*2750 | 3045 | 3100 | 1920 | *6-6 |
| WIDE VIEW FULL FREE 3-STAGE MAST | ||||||||
| Mast model | Max.lifting height (mm) | Load capacity(kg) load center | Mast overall height (mm) | Free lifting height (with backrest)(mm) | Mast tilting angle ° (front/rear) | |||
| 3t | 3.5t | 3t | 3.5t | |||||
| ZSM360 | 3600 | 3000 | 3500 | 1830 | 1853 | 655 | 6-6*6-6 | |
| ZSM400 | 4000 | 2500*2700 | 2800*3000 | 1952 | 1980 | 721 | 6-6*6-6 | |
| ZSM450 | 4500 | 2250*2700 | 2500*3200 | 2120 | 2200 | 828 | 6-6*6-6 | |
| ZSM480 | 4800 | 1600*2500 | 2000*2700 | 2245 | 2245 | 988 | 6-6*6-6 | |
| ZSM500 | 5000 | 1600*2000 | 1700*2600 | 2350 | 2350 | 1121 | 3-6*3-6 | |
| ZSM550 | 5500 | 1400*1700 | 1300*1800 | 2530 | 2670 | 1378 | 3-6*3-6 | |
| ZSM600 | 6000 | 1300*1200 | 1300*1400 | 2670 | 2670 | 1458 | 3-6*3-6 | |
| Technical datas | |||||||||
| Model | CPCD30T | CPQD30T | CPQYD30T | CPCD35T | CPQD35T | CPQYD35T | |||
| General | |||||||||
| 1.01 | Rated capacity | Q | Kg | 3000 | 3000 | 3500 | 3500 | ||
| 1.02 | Load center distance | C | mm | 500 | 500 | 500 | 500 | ||
| 1.03 | Power type | Diesel | Gasoline / LPG | Diesel | Gasoline / LPG | ||||
| 1.04 | Driving type | Seated | Seated | Seated | Seated | ||||
| 1.05 | Wheel base | L1 | mm | 1700 | 1700 | 1700 | 1700 | ||
| Tyres | |||||||||
| 2.01 | Tyre type | Pneumatic | Pneumatic | Pneumatic | Pneumatic | ||||
| 2.02 | Wheel number (front/rear) | 2X/2 | 2X/2 | 2X/2 | 2X/2 | ||||
| 2.03 | Front tread | W3 | mm | 970 | 970 | 970 | 970 | ||
| 2.04 | Rear tread | W2 | mm | 970 | 970 | 970 | 970 | ||
| 2.05 | Tyre (front) | 28×9-12-12PR | 28×9-12-12PR | 28×9-12-12PR | 28×9-12-12PR | ||||
| 2.06 | Tyre (rear) | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||||
| Size | |||||||||
| 3.01 | Front overhang | L2 | mm | 487 | 487 | 489 | 489 | ||
| 3.02 | Mast tilting angle, front/rear | α/β | ° | 6/12 | 6/12 | 6/12 | 6/12 | ||
| 3.03 | Height with mast retraction | H1 | mm | 2065 | 2065 | 2180 | 2180 | ||
| 3.04 | Free lifting height | H3 | mm | 150 | 150 | 150 | 150 | ||
| 3.05 | Max. lifting height | H | mm | 3000 | 3000 | 3000 | 3000 | ||
| 3.06 | Max. height after lifting | H2 | mm | 4242 | 4242 | 4257 | 4257 | ||
| 3.07 | Overall guard height | H4 | mm | 2090 | 2090 | 2090 | 2090 | ||
| 3.08 | Fork size: length x width x thickness | LxWxT | mm | 1070×122×45 | 1070×122×45 | 1070×122×50 | 1070×122×50 | ||
| 3.09 | Overall length (fork excluded) | L | mm | 2720 | 2720 | 2750 | 2750 | ||
| 3.10 | Overall width | W1 | mm | 1150 | 1150 | 1200 | 1200 | ||
| 3.11 | Turning radius | r | mm | 2460 | 2460 | 2500 | 2500 | ||
| 3.12 | Ground clearance of mast | H5 | mm | 120 | 120 | 120 | 120 | ||
| 3.13 | Ground clearance of wheel base center (loaded) | H6 | mm | 160 | 160 | 160 | 160 | ||
| 3.14 | Lateral fork adjustment Max./Min. | W5 | mm | 1060/250 | 1060/250 | 1060/250 | 1060/250 | ||
| Performance | |||||||||
| 4.01 | Travelling speed (loaded/unloaded) | km/h | 18/19 | 18/19 | 18/19 | 18/19 | |||
| 4.02 | Lifting speed (loaded/unloaded) | mm/s | 470/520 | 470/520 | 370/400 | 370/400 | |||
| 4.03 | Lowering speed (loaded/unloaded) | mm/s | 450/550 | 450/550 | 350/400 | 350/400 | |||
| 4.04 | Gradeability (loaded/unloaded) | % | 22/18 | 22/18 | 20/16 | 20/16 | |||
| 4.05 | Max. traction force (loaded/unloaded) | KN | 19/14 | 19/14 | 19/15 | 19/15 | |||
| Weight | |||||||||
| 5.01 | Total weight | Kg | 3840 | 3840 | 4355 | 4355 | |||
| 5.02 | Axle load (unloaded), front/rear | Kg | 1600/2700 | 1600/2700 | 1710/2640 | 1710/2640 | |||
| 5.03 | Axle load (loaded), front/rear | Kg | 5585/915 | 5585/915 | 6585/945 | 6585/945 | |||
| Combustion engine | |||||||||
| 6.01 | Engine manufacturer /Model | XINCHAI A498BPG | NISSAN K25 | XINCHAI A498BPG | NISSAN K25 | ||||
| 6.02 | Rated power /Speed | Kw/rpm | 37.4/2500 | 37.4/2300(GAS)35/2300(LPG) | 42/2500 | 37.4/2300(GAS)35/2300(LPG) | |||
| 6.03 | Max. torque /Speed | Nm/rpm | 180/1600 | 176.5/1600(GAS)176/1600(LPG) | 176/1600 | 176.5/1600(GAS)176/1600(LPG) | |||
| 6.04 | Cylinder number-bore×stroke | 4-90×105 | 4-89×100 | 4-90×105 | 4-89×100 | ||||
| 6.05 | Engine displacement | L | 2.67 | 2.488 | 2.977 | 2.488 | |||
| 6.06 | Emission | Stage II | Stage II | Stage II | Stage II | ||||
| Transmission | |||||||||
| 7.01 | Transmission gears (front/rear) | 1-1 Power Shift | 1-1 Power Shift | 1-1 Power Shift | 1-1 Power Shift | ||||
| 7.02 | Fuel tank capacity | L | 60 | 60 | 60 | 60 | |||
| Additional data | |||||||||
| 8.01 | Service brake / parking brake | Hydraulic / mechanical | Hydraulic / mechanical | Hydraulic / mechanical | Hydraulic / mechanical | ||||
| 8.02 | Hydraulic system working pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | |||
| T Series 3.0-3.5T Diesel Forklift Optional Engines | |||||
| Engine Model | Rated power/speed (kw/rpm) | Rated torque/speed (Nm/rpm) | Engine Displacement(L) | Cylinder number Bore×Stroke | Emission Standard |
| XINCHAI A498BPG | 45/2500 | 193/1800 | 3.168 | 4-98×102 | Stage II |
| ISUZU C240PKJ-30 | 35.4/2500 | 137.7/1800 | 2.369 | 4-86×102 | Stage IIIA |
| MITSUBISHI S4S-DPU2 | 35.5/2420 | 177/1700 | 3.351 | 4-94×102 | Stage IIIA |
| ISUZU 4JG2-PE1 | 36/2500 | 186/1700 | 2.86 | 4-94×87 | Stage III |
| CUMMINS QSF2.8NA49 | 43/2500 | 200/1600 | 2.8 | 4-94×107 | Stage IIIA |
| CUMMINS QSF2.8NA61 | 44/2400 | 214/1600 | 2.8 | 4-94×107 | Stage IIIA |
| XINCHAI ZS4Y2G1 | 44/2400 | 201/1600 | 2.63 | 4-94×107 | Euro V |
| KUBOTA V2607-CR-EW03 | 37.4/2400 | 174/1500 | 2.615 | 4-87×110 | Euro V / EPA14F |
| T Series 3.0-3.5T GAS/LPG Forklift Optional Engines | |||||
| Engine Model | Rated power/speed (kw/rpm) | Rated torque/speed (Nm/rpm) | Engine Displacement(L) | Cylinder number Bore×Stroke | Emission Standard |
| PSI 2.4 | 48/2700(GAS)43.5/2600(LPG) | 165/1800(GAS)173/1400(LPG) | 2.351 | 4-86.5×100 | EPA T4 |
| KUBOTA WG2503-GL-3 (certified) | 42.8/2600(GAS)43.5/2600(LPG) | 163/1800(GAS)173/1400(LPG) | 2.491 | 4-88×102.4 | EPA T3 / Euro V |
