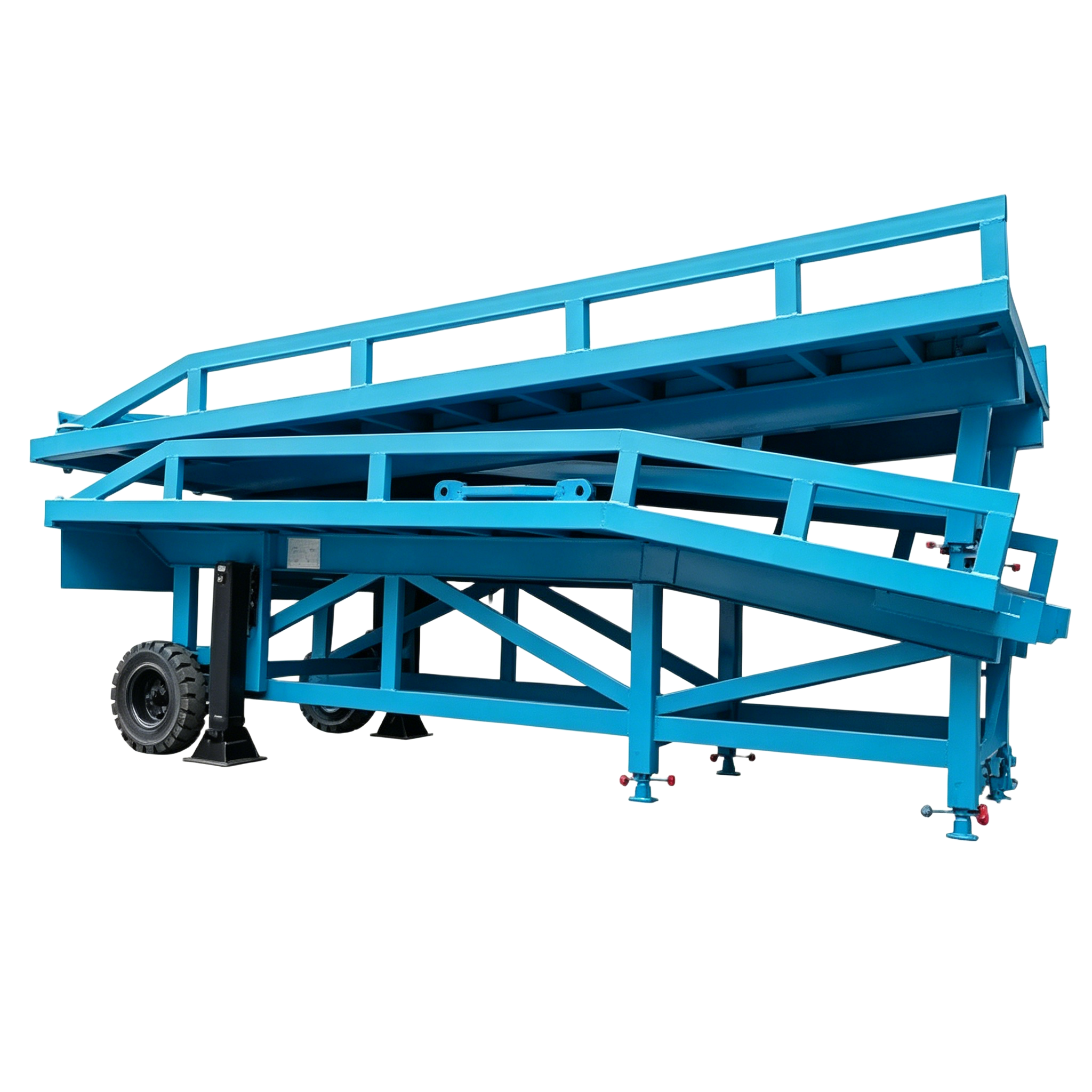

Folding

Product Dscription

Split design, each section is independently load-bearing, occupies a small area, and is easy to move and transport.

Product Structure：

• The mobile boarding bridge is mainly composed of three parts: the base body, the lifting mechanism and the moving mechanism.
• Base body
• The base body is welded by section steel, and the main body is 18# channel steel, 10# channel steel and various rectangular tubes.
• Lifting mechanism
• The lifting mechanism consists of three sets of spiral legs.
• Moving mechanism
• The moving mechanism is mainly a pair of pneumatic tires, which can move a short distance under the traction force of the external structure.

 Product Advantages：

WELDING PROCESS

(1) The panel is fully welded, with higher strength, anti-seepage, ensuring that the chassis is not easy to rust and durable;

(2) The mesh is small, and 1672 welding points are welded according to the drawing to ensure stable panel strength and longer service life of forklift tires.

SKELETON SPACING

The overall beam, the spacing is less than or equal to 300mm, the dynamic force is not deformed.

X-SHAPED REINFORCEMENT

The triangular support is more stable and ensures that the outriggers are evenly stressed.

SUPER LOAD BEARING

Lifting support legs, 25T lifting weight.

THREE KINDS OF ANTI-SKID SLOPE OPTIONAL

Diamond mesh, Steel grating, Steel bar

• Remarks: The color and size of the boarding bridge can be customized according to customer needs.

Product Parameters
