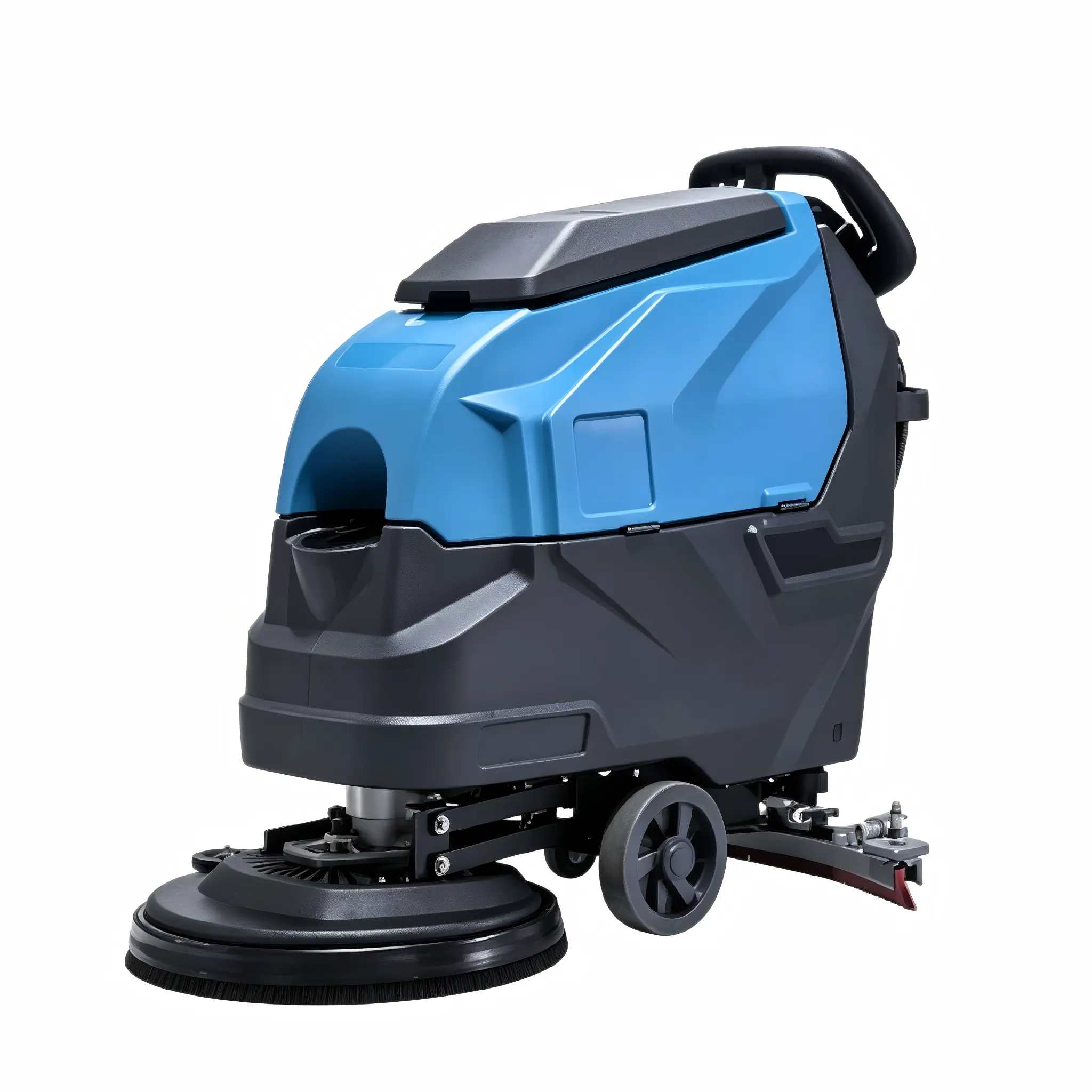

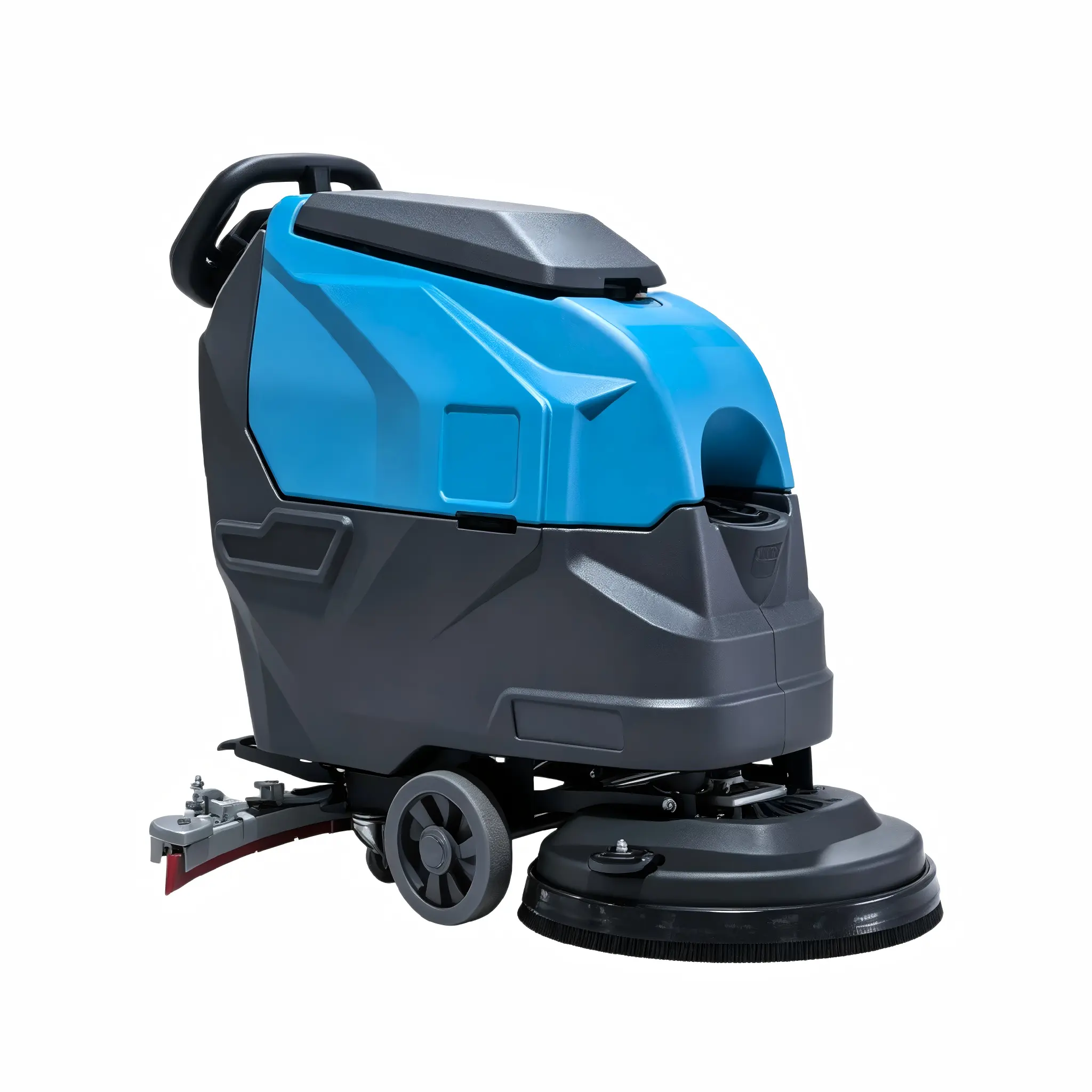

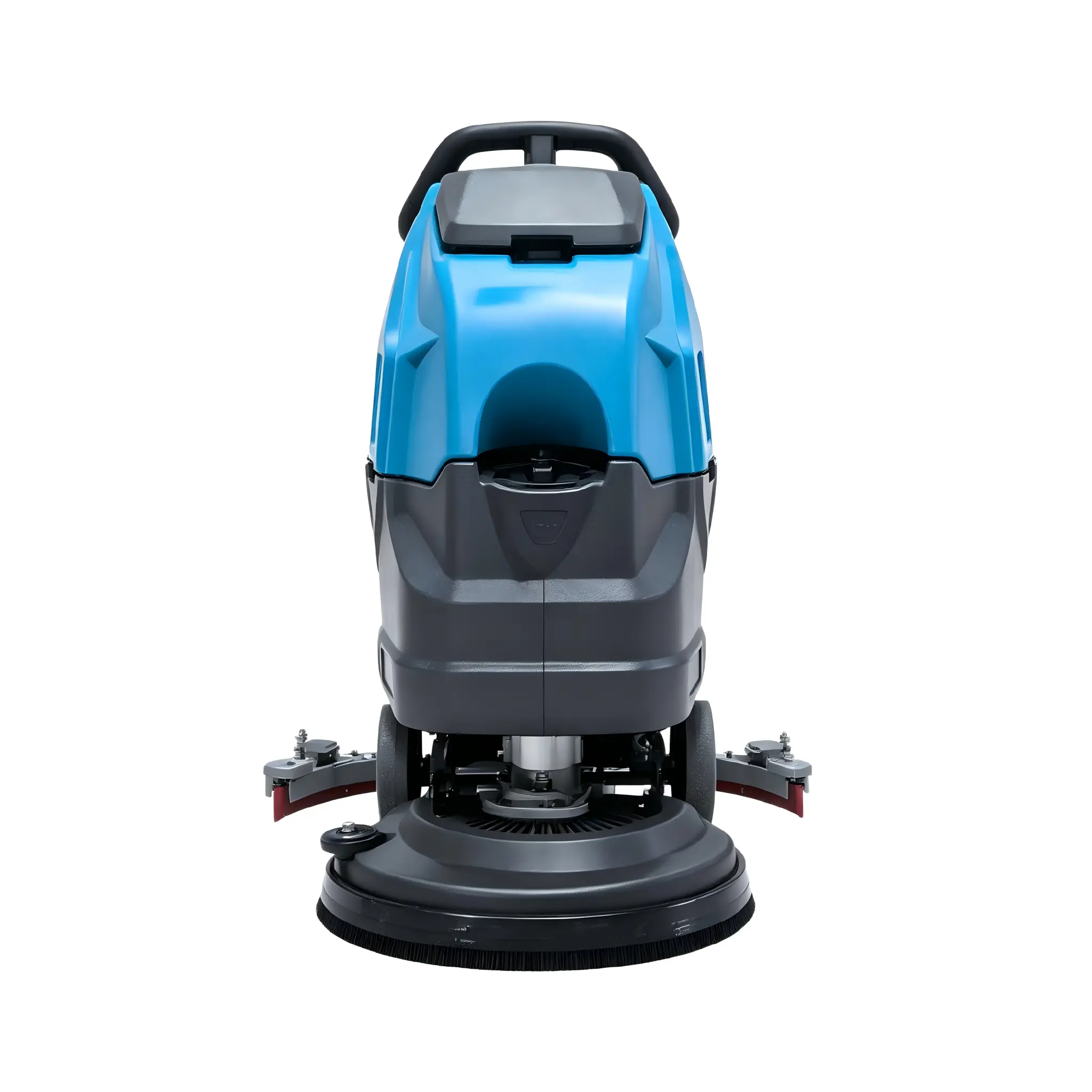

JYD510 Walk-behind Floor Scrubber
The water tank is manufactured by rotational molding process, featuring stable performance, crack-proof and leak-proof.
Compact body matched with widened semi-enclosed squeegee without water overflow during turning.
Integrated controller with display screen supports soft start, fault code display, ECO and other practical functions.
Machine Brief Introduction
▶ The water tank is manufactured by rotational molding process, featuring stable performance, crack-proof and leak-proof.
▶ Compact body matched with widened semi-enclosed squeegee without water overflow during turning.
▶ Integrated controller with display screen supports soft start, fault code display, ECO and other practical functions.
▶ Dual clean & sewage tank design; the sewage tank can be opened sideways for convenient maintenance and inspection.
▶ Multiple battery duration versions are optional to meet various application scenarios.
▶ Large-capacity tanks enable fast water filling and draining operations.
▶ Low-noise structural design ensures quiet operation, suitable for various premises.
Technical Specifications
| Item Name | JYD510 |
| Brush Scrubbing Width | 510mm |
| Squeegee Working Width | 830mm |
| Clean Water Tank Capacity | 45L |
| Sewage Tank Capacity | 50L |
| Brush Disk Quantity | 1pc |
| Theoretical Cleaning Efficiency | 2500㎡/h |
| Working Voltage | DC24V |
| Brush Disk Rotation Speed | 180rpm |
| Brush Motor Power | DC24V 550W |
| Suction Motor Power | DC24V 500W |
| Machine Dimension | 12708301068mm |
| Net Machine Weight | 82KG |
| Battery Parameter | Lead-acid DC12V2 or Lithium DC24V1 |
| Packing Dimension | 13005701170mm |
| Accessories List | 1pc brush, 1pc charger, 1pc squeegee, 1pc operation manual, 1pc quality certificate |
