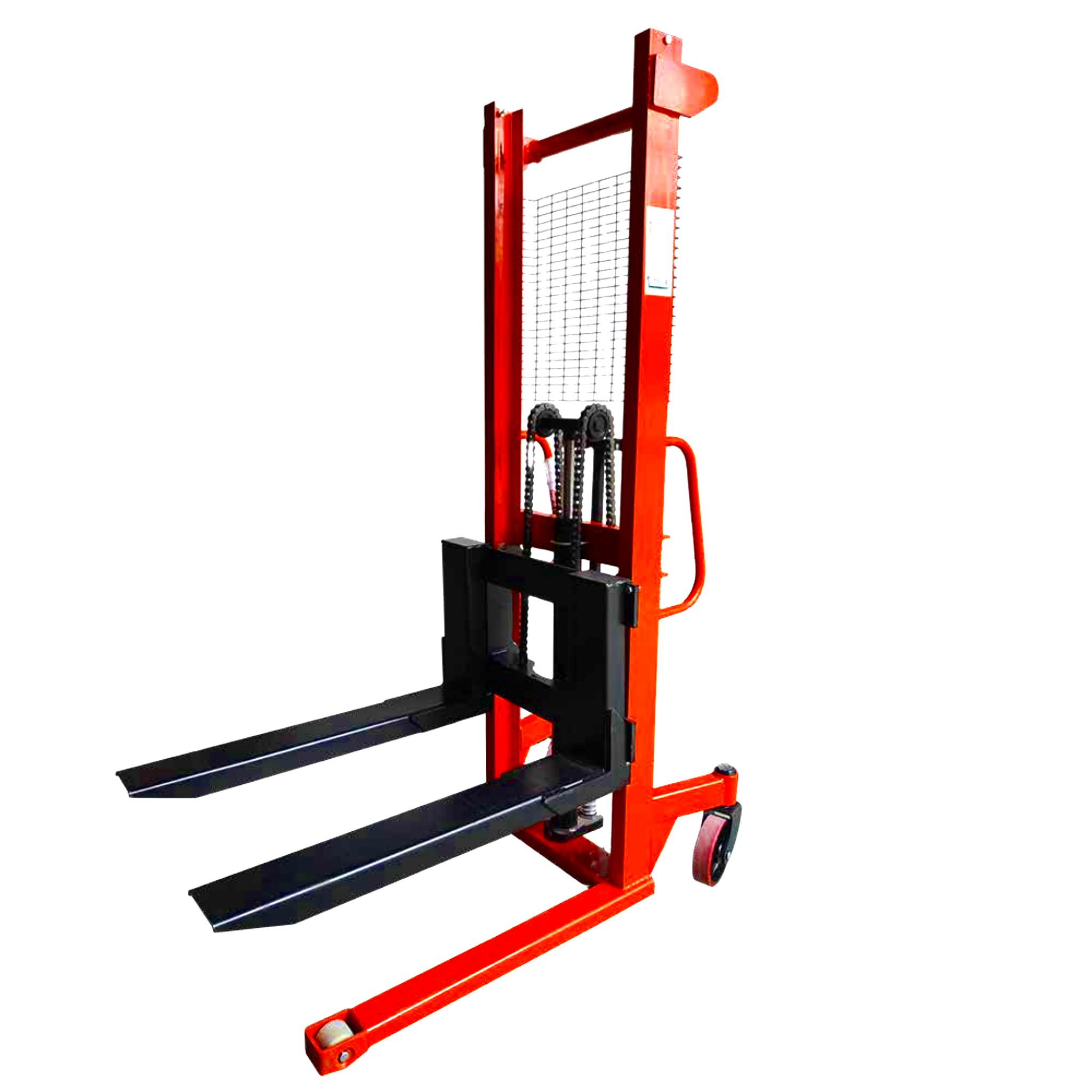

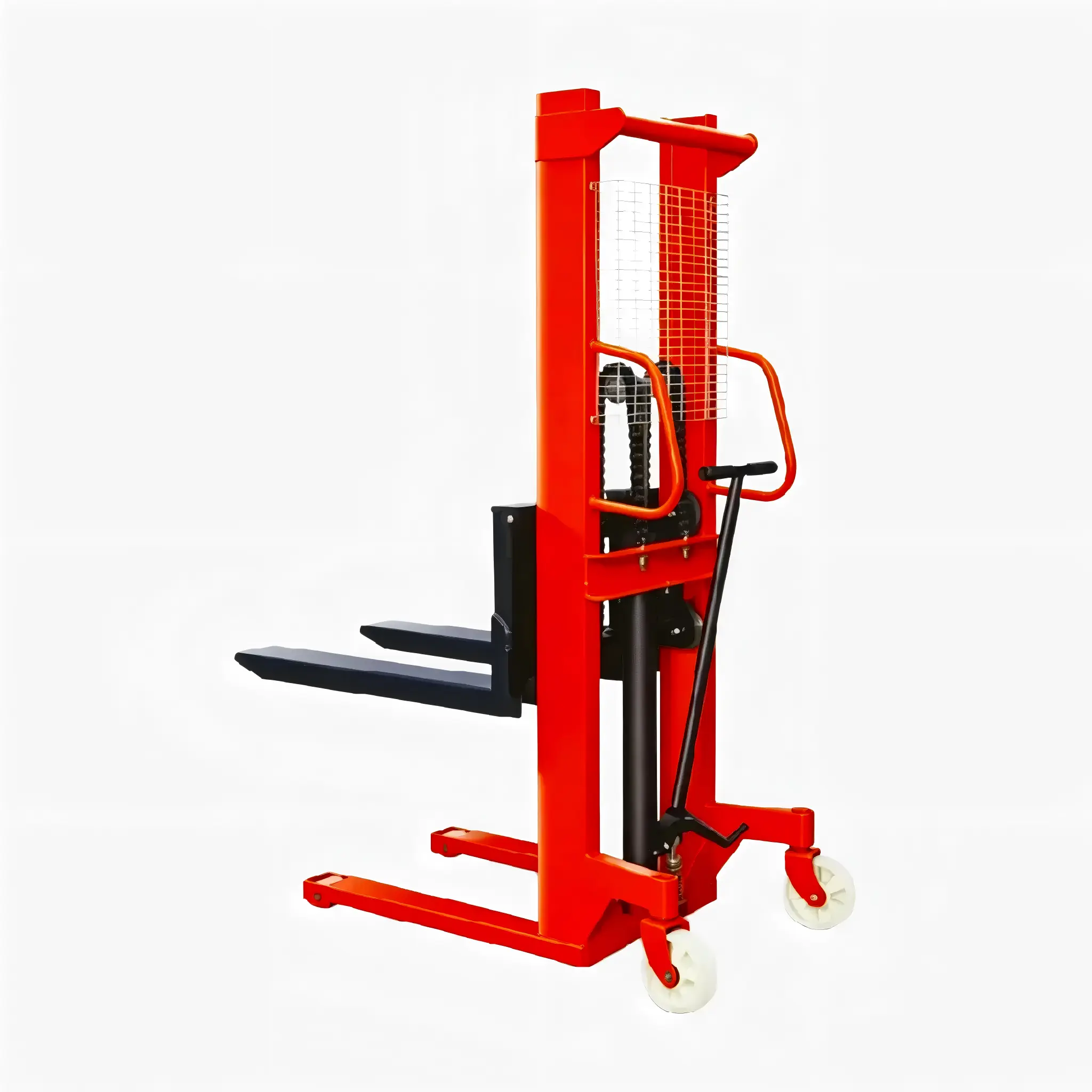

Manual Stacker CTY-D
The channel steel made by special rolling process is selected, with its internal and external surfaces polished, and connected by full welding technology, which is firm and durable, and the overall structure will never deform.
Product Description

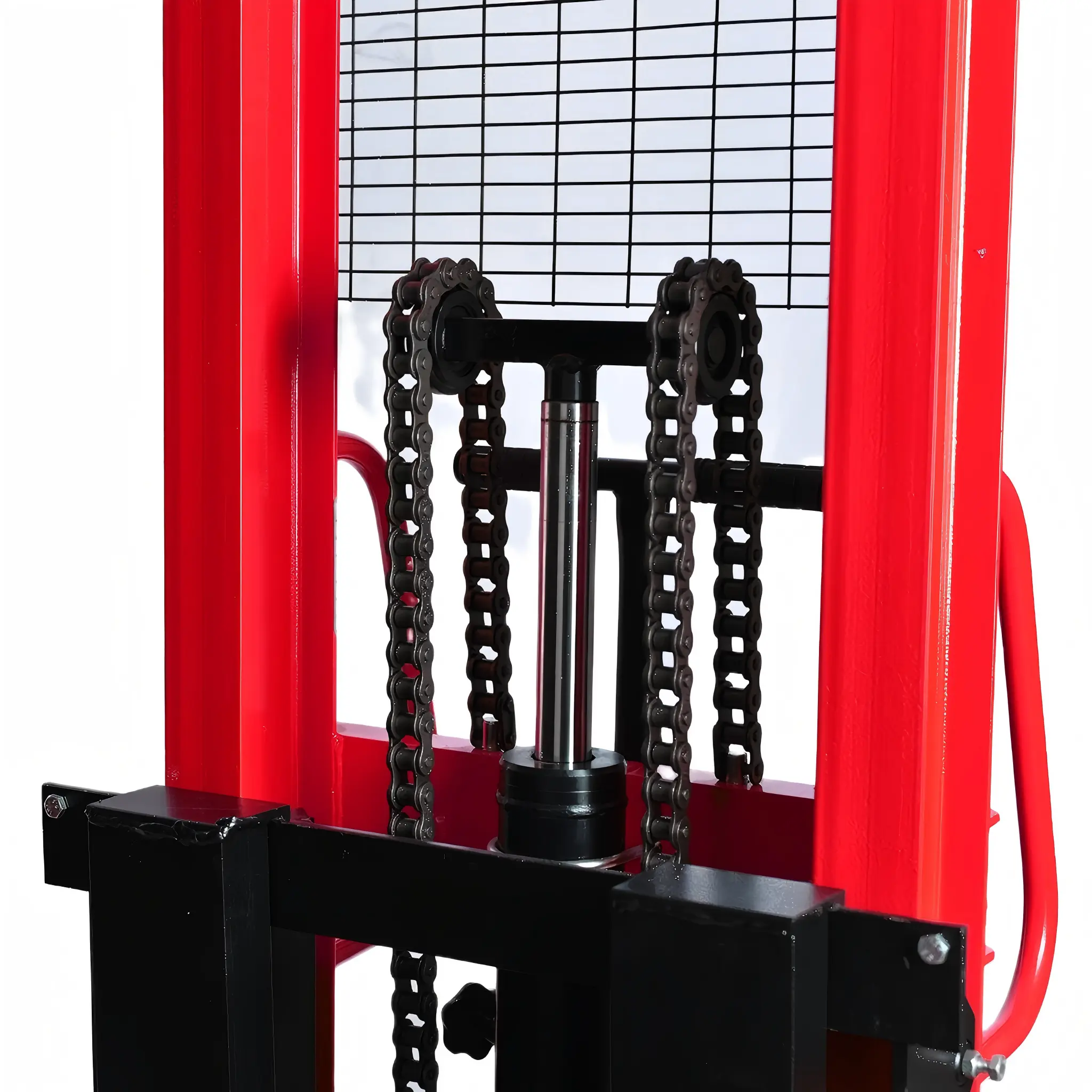

Gantry：
The channel steel made by special rolling process is selected, with its internal and external surfaces polished, and connected by full welding technology, which is firm and durable, and the overall structure will never deform.

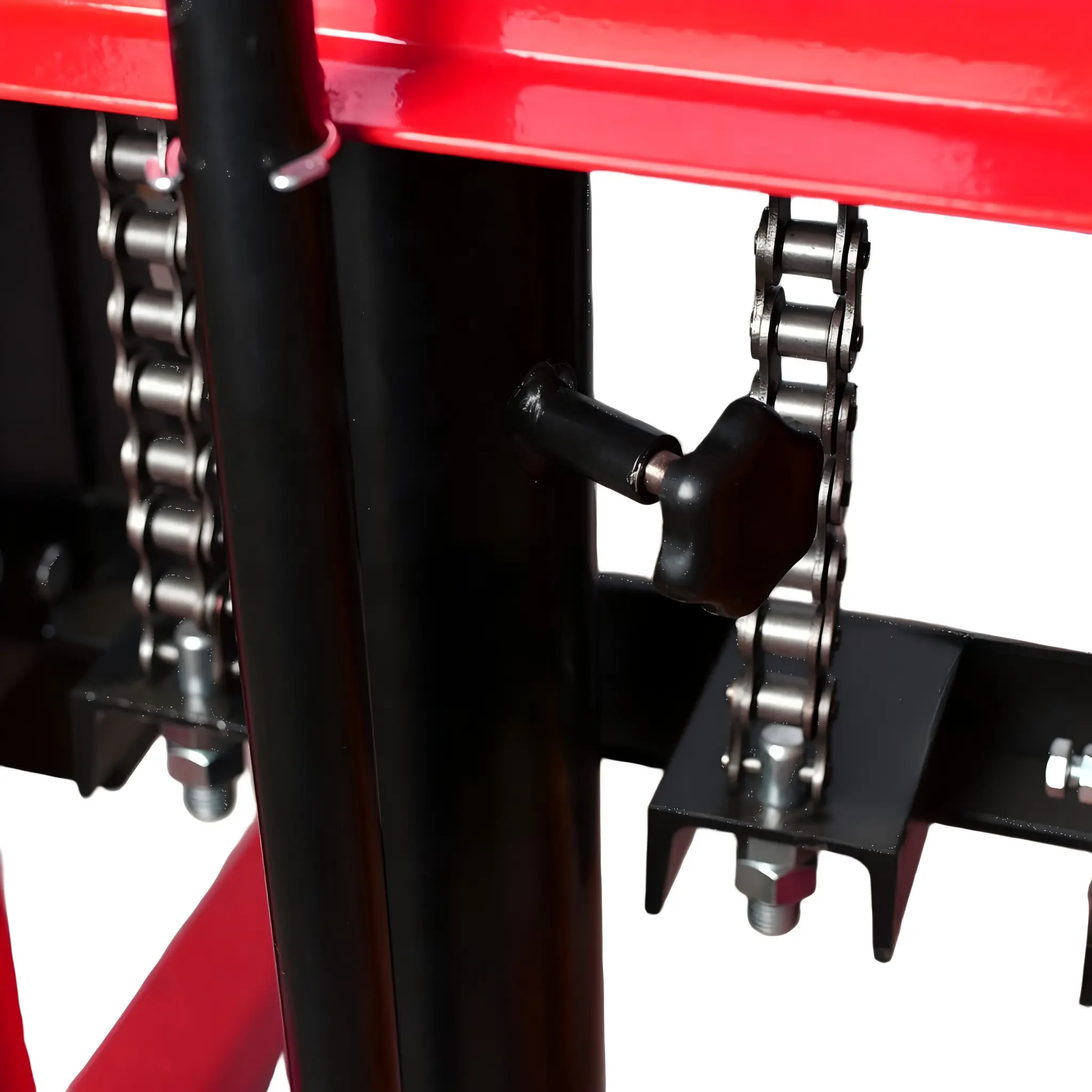

Fork:
High strength adjustable integrally stamped steel fork that can cover the front leg when lowered to the lowest position.
Relief valve:
When the load exceeds 20% of the rated load of the stacker truck, the overflow valve acts to ensure that the oil cylinder will not be damaged in case of overload.
Anti-rupture valve:
In case of accidental rupture of the oil circuit, the anti-rupture valve will block the hydraulic oil circuit, so that the lifting truck fork will stay at a fixed height and will not drop rapidly.
Specification
| Model | CTY-D 1000 | CTY-D 2000 |
| Capacity(kg) | 1000 | 2000 |
| Lower Height of Forks(mm) | 90 | 90 |
| Max. Lifting Height(mm) | 1600 | 1600 |
| Fork Length(mm) | 900 | 900 |
| Fork Adjustable Width(mm) | 320-680 | 340-680 |
| Outer Width of Front Legs(mm) | 620 | 620 |
| Self Weight(kg) | 160 | 260 |
| Overall Size(mm) | 1420×740×2420 | 1470×740×2420 |
