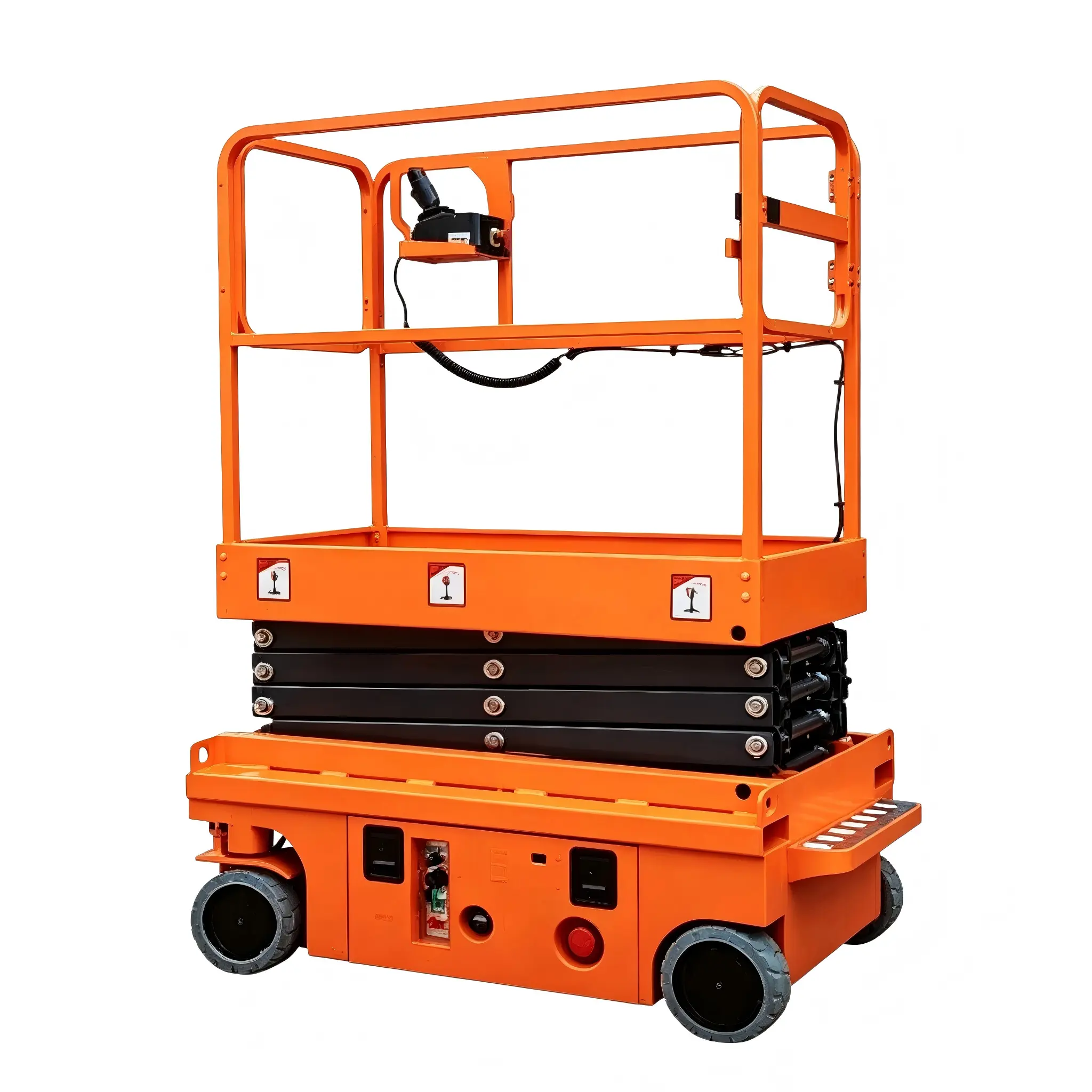

Mini All Electric Scissor Work Platform (Hydraulic Drive)

Functional Features

Introduction

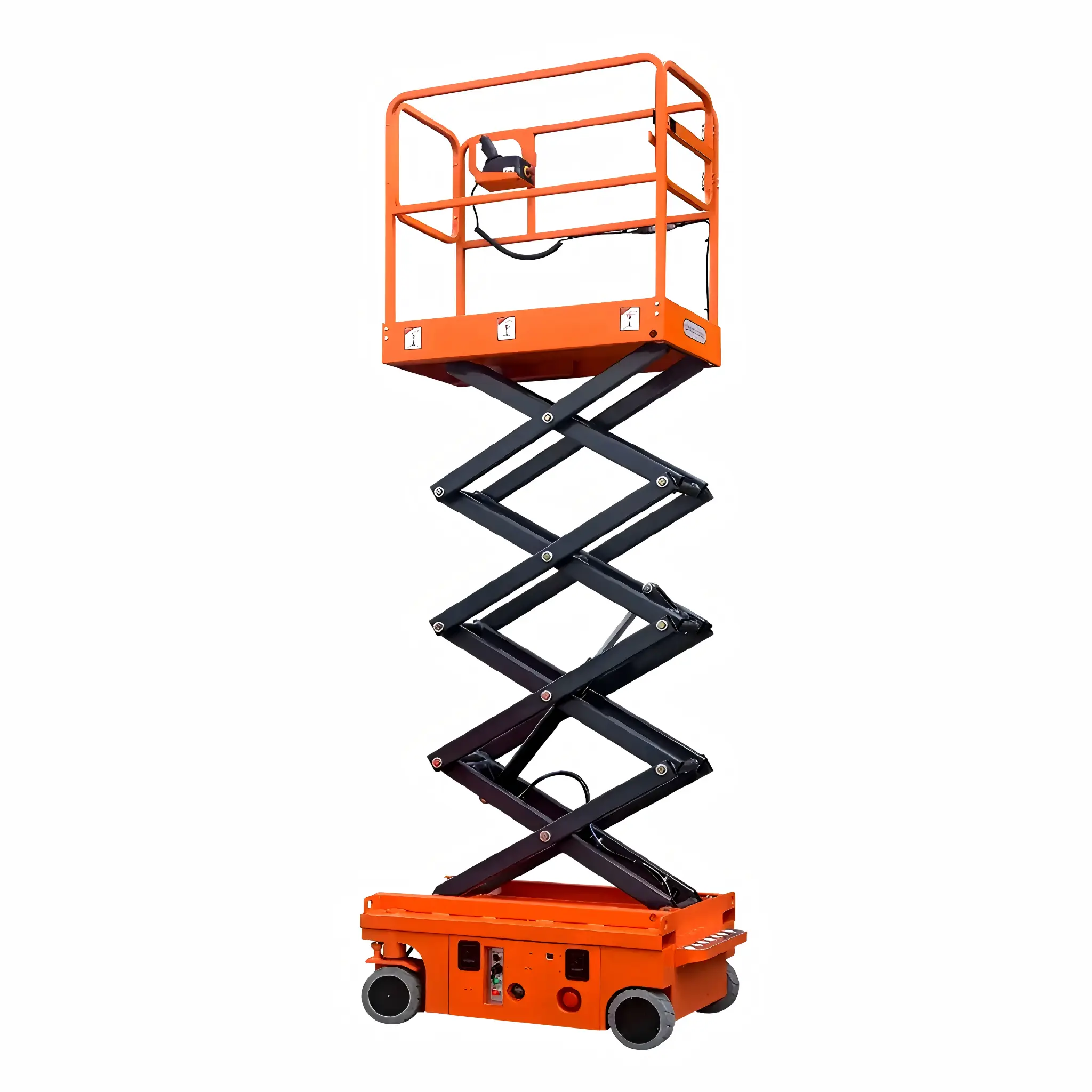

The mini electric scissor lift offers a maximum platform height of 4.8m and a maximum working height of 6.8m, and allows for lifting 2 operators with a 300kg load capacity. Characterized by its smooth lift and all-electric drive system, FSJY electric scissor lift drives operators to indoor jobsites quietly and without emission.

Technical parameter

Body Parameter
Model	FSJY3-YZ	FSJY3.9-YZ	FSJY4.8-YZ
Lifting Capacity(kg)	300	300	300
Maximum Working Height(mm)	5000	5900	6800
Maximum Platform Height(mm)	3000	3900	4800
Overall Length (With Ladder/Without Ladder)(mm)	1340/1250	1340/1250	1340/1250
Overall Width(mm)	760	760	760
Overall Height(mm)	1880	1980	2040
Platform Size(mm)	1170×600	1170×600	1170×600
Ground Clearance(mm)	60	60	60
Wheel Base(mm)	1010	1010	1010
Minimum Turn Radius(mm)	1400	1400	1400
Overall Net Weight(kg)	650	680	930
Performance Parameter
Model	FSJY3-YZ	FSJY3.9-YZ	FSJY4.8-YZ
Driving Motor(V/kw)	2 × 24/0.4	2 × 24/0.4	2 × 24/0.4
Lifting Motor(V/kw)	24/1.2	24/1.2	24/1.2
Running Speed (Platform Stowed)(km/h)	4	4	4
Running Speed (Platform Elevated)(km/h)	0.8	0.8	0.8
Rising/Falling Time(sec)	20/30	20/30	20/30
Battery(V/Ah)	2 × 12/80	2 × 12/80	2 × 12/80
Charger(V/A)	24/10	24/10	24/10
Maximum Climbing Ability(%)	10–15	10–15	10–15
Maximum Working Allowable Angle	2°	2°	2°
Driving Wheel(mm)	Φ230 × 80	Φ230 × 80	Φ230 × 80
Front Wheel(mm)	Φ230 × 80	Φ230 × 80	Φ230 × 80
