Mini Scissor Lifts Series

Get Quote>
  • Fault codes are automatically displayed for easy maintenance
  • The foldable fence reduces the volume of the whole machine
  • Convenient for working in tight spaces
  • 25% climbing ability, able to smoothly climb up the slope
  • Swivel chassis for easy maintenance
  • The pedal extension platform can be quickly rolled out to the operating point

Mini Scissor Lifts Series

【FEATURES】

Safety Configuration

  • Automatic braking system
  • Emergency descent system
  • Charging protection system
  • Oil pipe explosion-proof system
  • Tilt protection system
  • Automatic pothole protection
  • Emergency stop button
  • Tamper-proof
  • Platform self-locking door
  • Foldable fence
 【FEATURES】

Other Configuration

  • Full Self-propelled
  • Non-marking tire
  • 4×2 drive
  • Extended platform
  • Horn & Buzzer
  • Standard transport forklift hole
  • Work schedule
  • Continuously variable speed
 【HIGH LIGHTS】

High Performance

  • Fault codes are automatically displayed for easy maintenance
  • The foldable fence reduces the volume of the whole machine
  • Convenient for working in tight spaces
  • 25% climbing ability, able to smoothly climb up the slope
  • Swivel chassis for easy maintenance
  • The pedal extension platform can be quickly rolled out to the operating point



Technical parameter

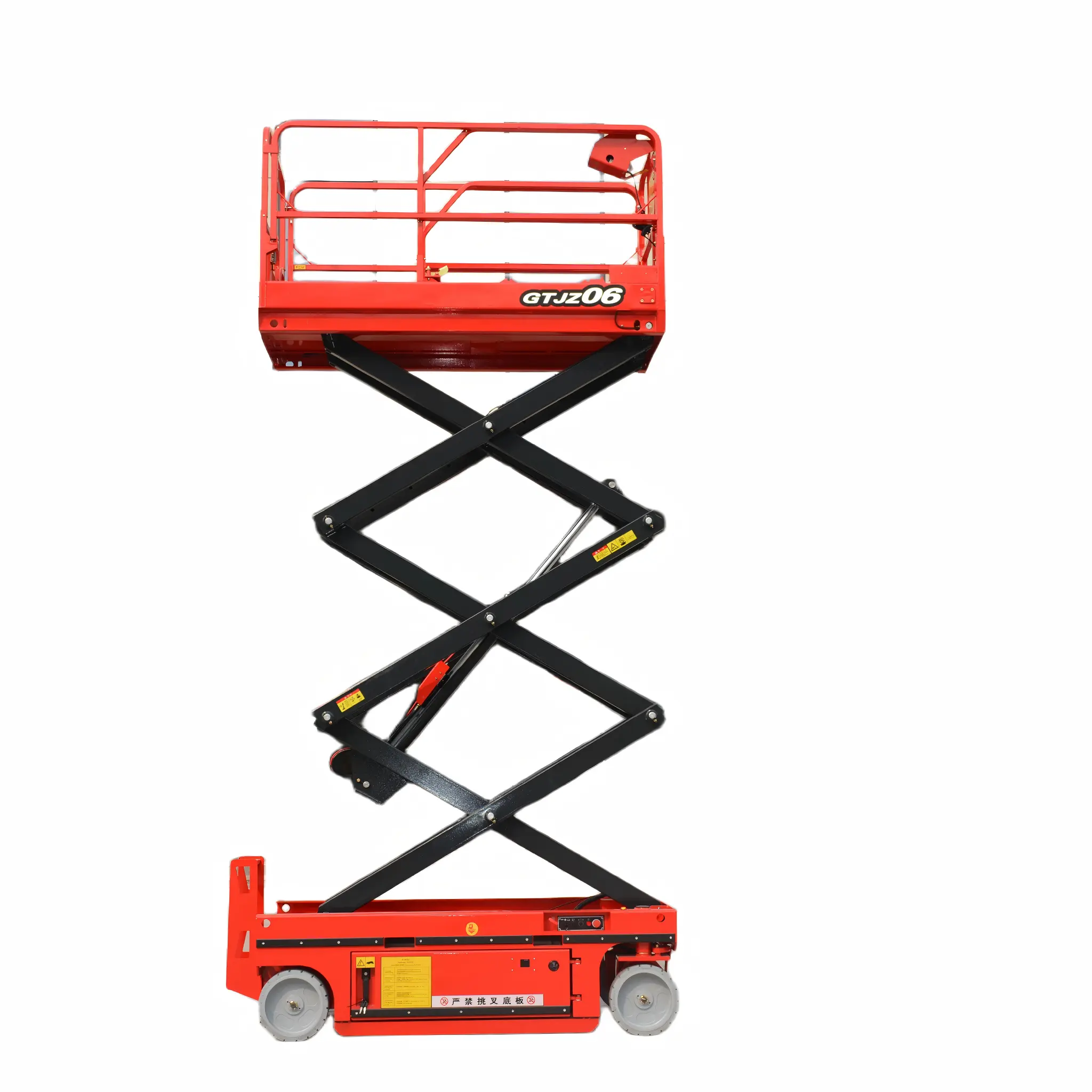

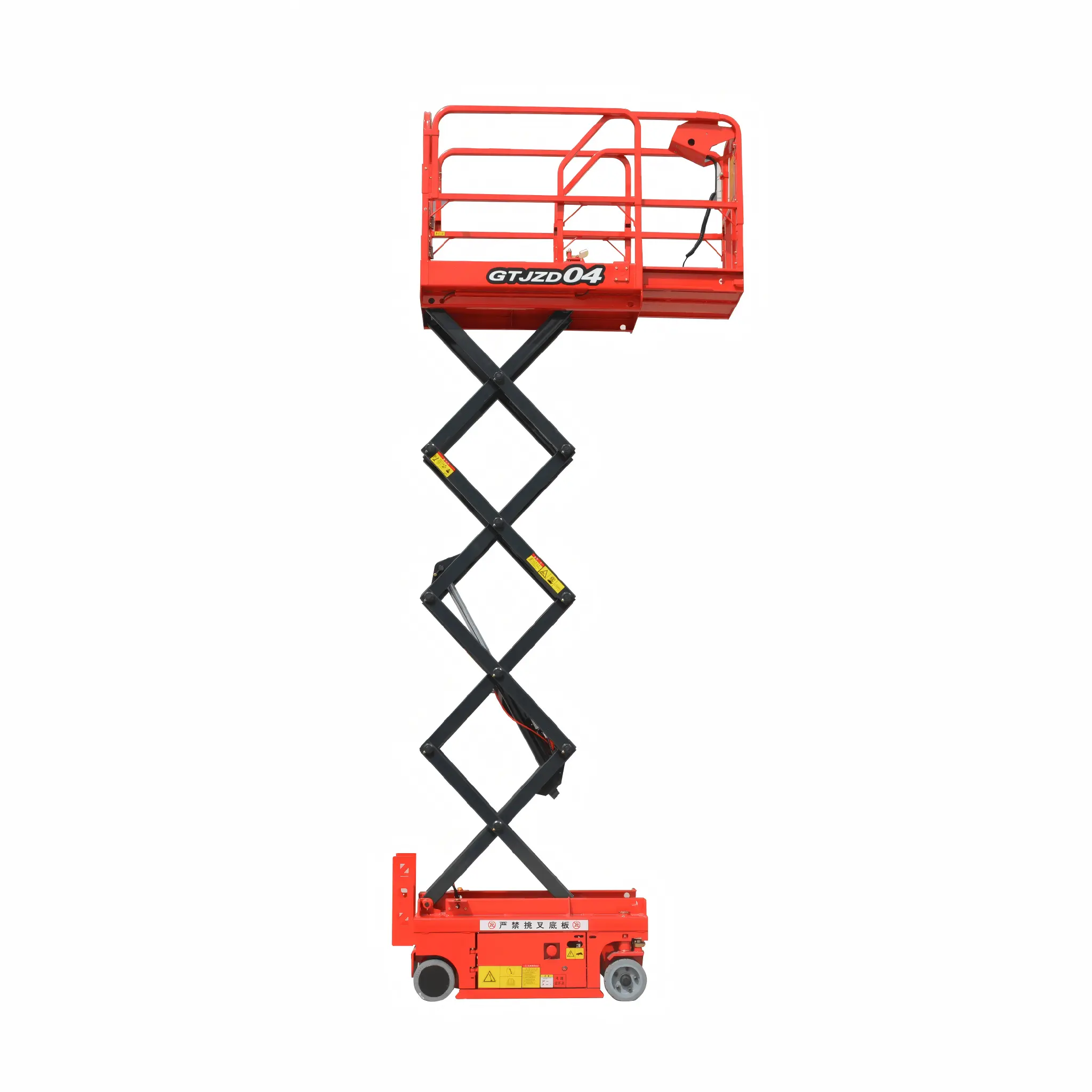

Model GTJZD04 QY0508DEM GTJZ0607HD GTJZ0608HD GTJZ0612HD
Size
Working Height 6m 6.5m 7.8m 7.80m 7.80m
A-Platform Height-Elevated 4m 4.5m 5.8m 5.80m 5.80m
B-Platform height-Stowed 0.95m 0.99m 1.1m 1.1m 1.1m
C-Platform Length 1.29m 1.29m 1.67m 2.26m 2.29m
D-Platform Width 0.7m 0.7m 0.74m 0.81m 1.15m
Platform Extension 0.6m 0.6m 0.9m 0.9m 0.9m
E-Overall Height (unfolded guardrail) 2.00m 2.09m 2.21m 2.2m 2.2m
Overall height (folded guardrail) 1.63m 1.73m 1.85m 1.73m 1.68m
F-Overall Length 1.48m 1.39m 1.855m 2.48m 2.48m
G-Overall Width 0.76m 0.81m 0.79m 0.84m 1.19m
H-Wheelbase 1.05m 1.11m 1.36m 1.89m 1.89m
I-Ground clearance (Stowed) 0.06m 0.85m 0.083m 0.1m 0.1m
J-Ground Clearance (Raised) 0.02m 0.02m 0.016m 0.02m 0.02m
Performance
Capacity of Extension 100kg 100kg 113kg 113kg 113kg
Platform Capacity 240kg 230kg 230kg 230kg 450kg
Max. Number of Workers 2 3 3 5 7
Driving Speed (Stowed) 4.0km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h
Driving Speed (Raised) 0.5km/h 0.5km/h 0.8km/h 0.8km/h 0.8km/h
Turning radius (outside) 1.35m 1.35m 1.64m 3.1m 2.2m
Turning radius (inside) 0.3m 0.3m 0.3m 0.3m 0.3m
Lifting speed 4-6m/min 4-6m/min 3-5m/min 3-5m/min 3-5m/min
Gradeability 0.25 0.25 0.25 0.25 0.25
Max. Working Angle 2°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Tire(drive wheel) Φ230×80mm Φ255×80mm Φ305×100mm Φ381×127mm Φ381×127mm
Power
Battery 2×12V/80ah 2×12V/103ah 4×12V/80ah 4×6V/200ah 4×6V/200ah
Charger 24V/15A 24V/15A 24V/30A 24V/30A 24V/30A
Weight
Gross 890kg 1010kg 1620kg 1880kg 2150kg
