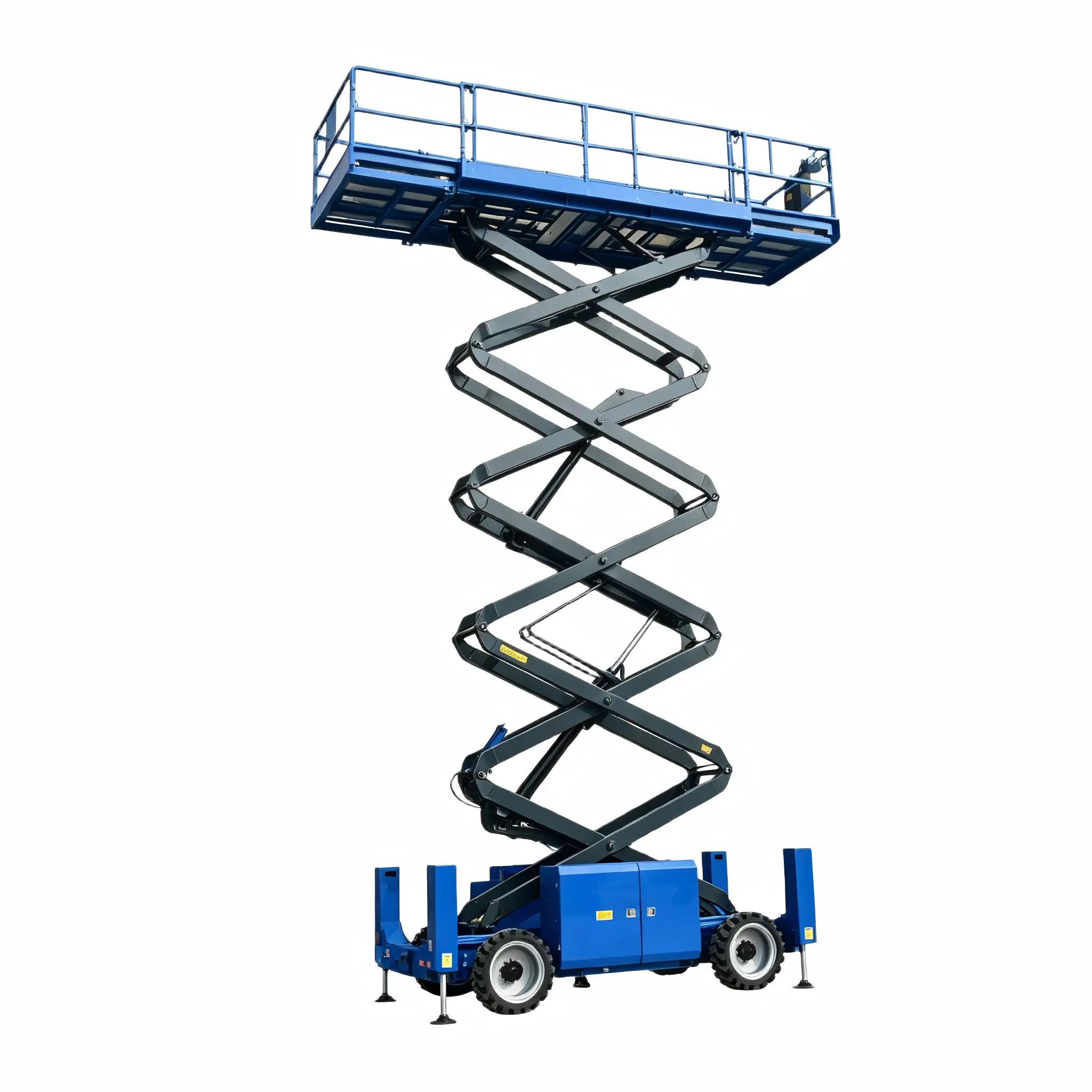

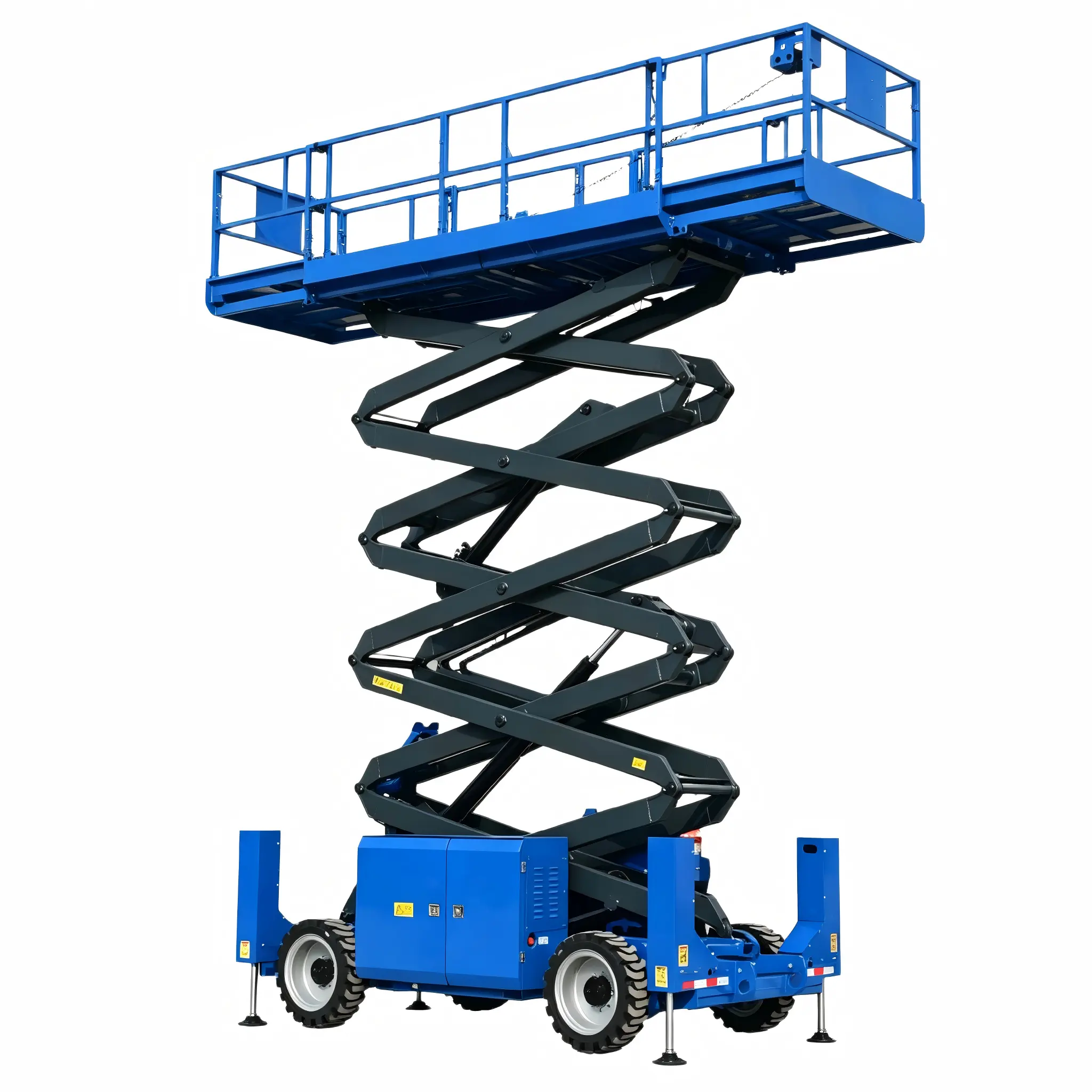

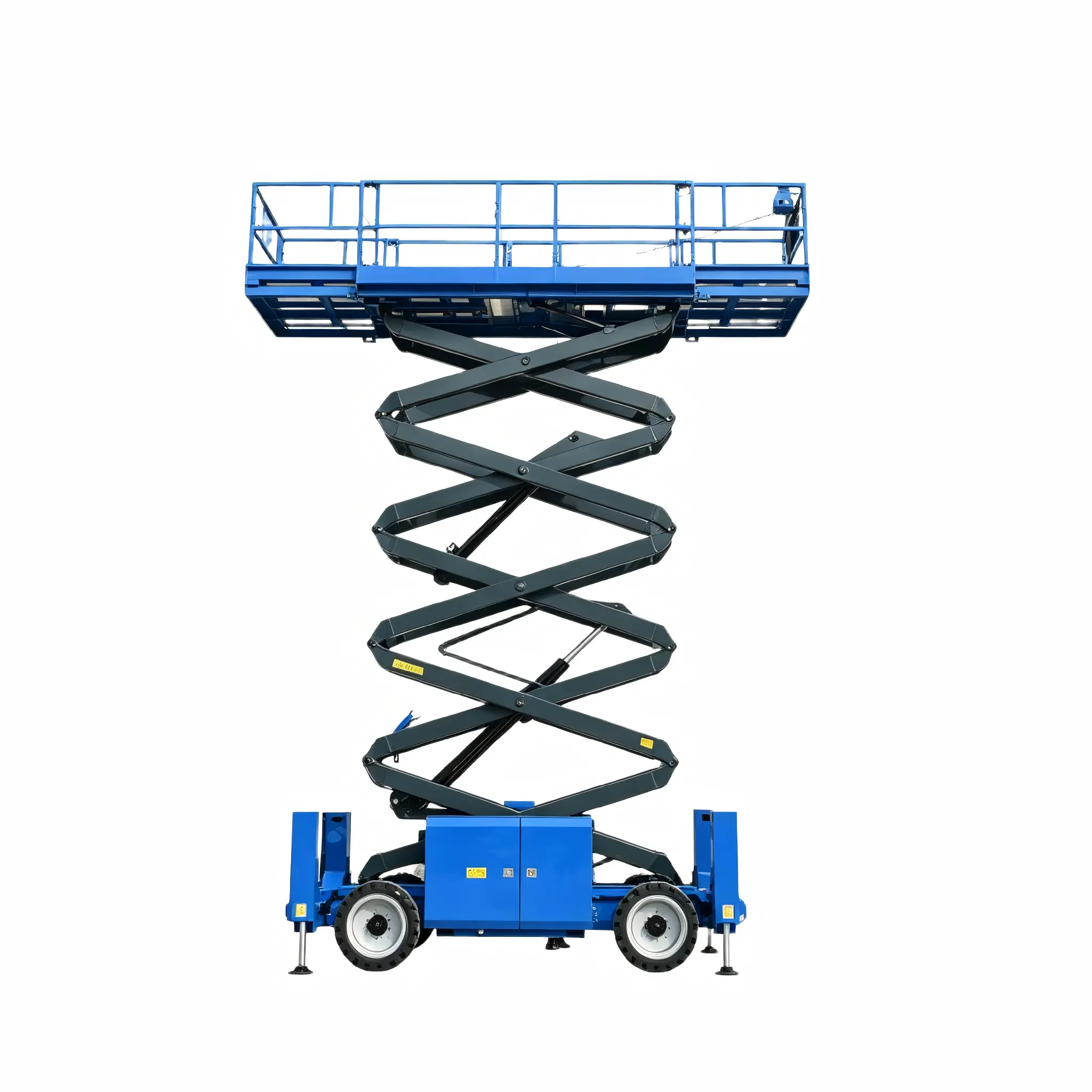

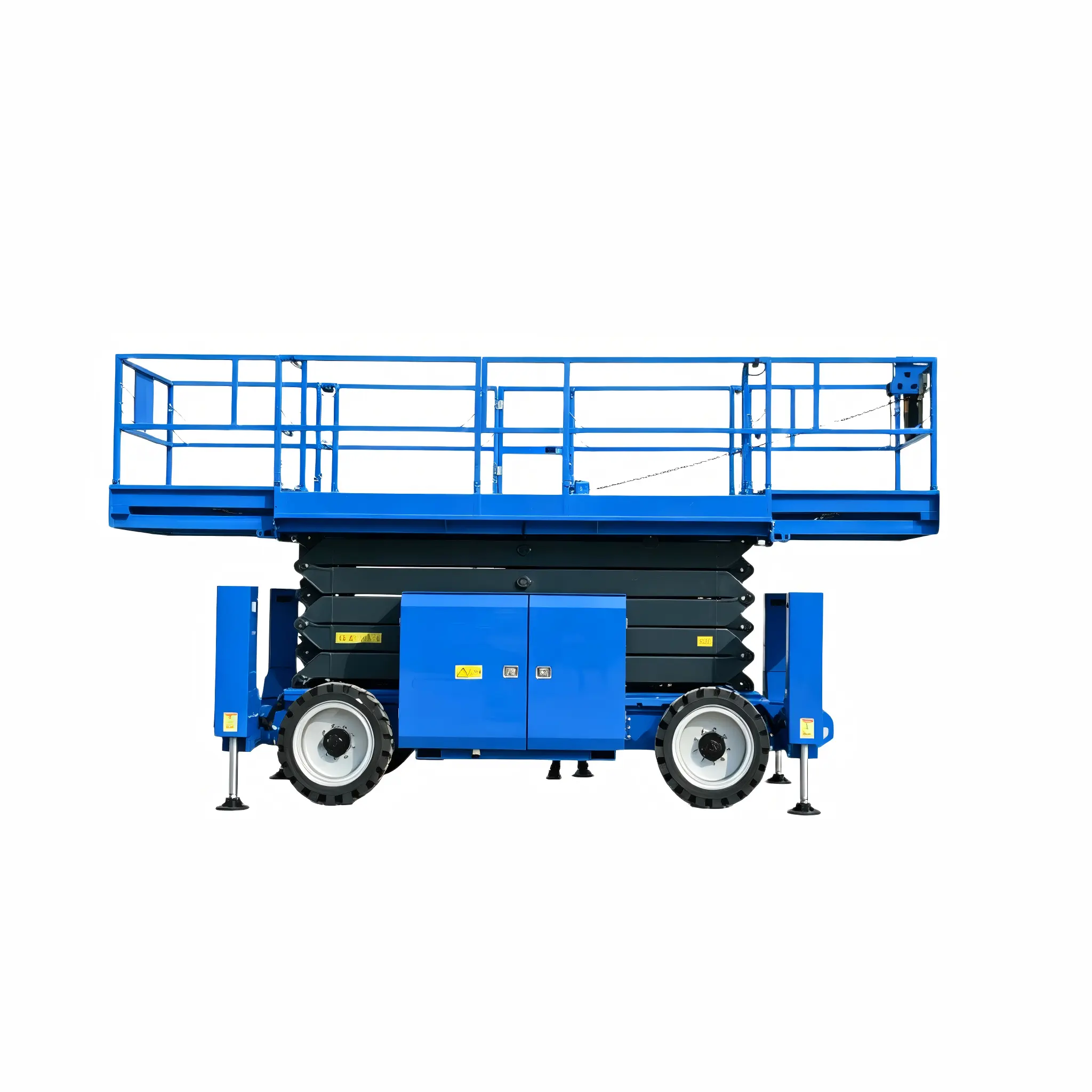

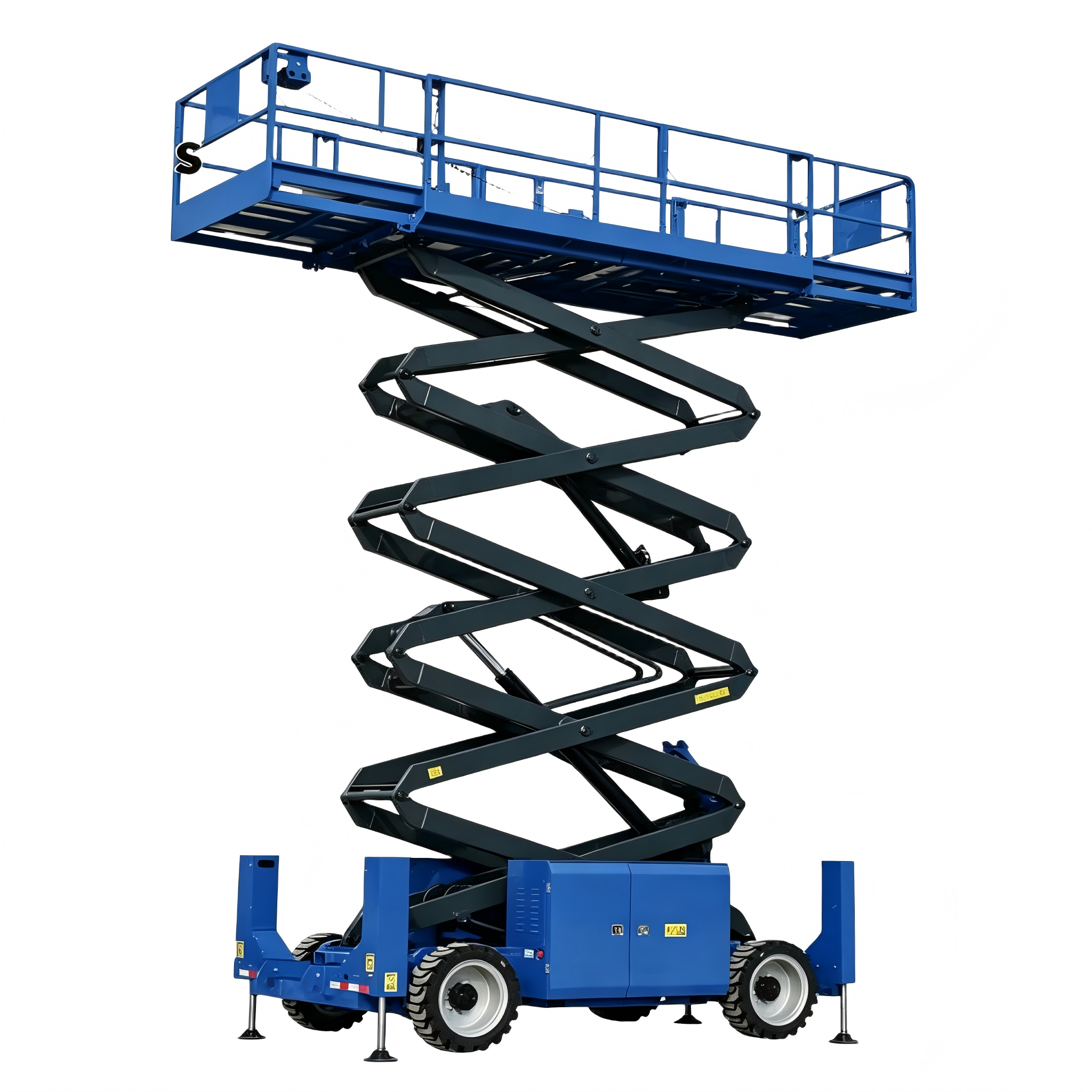

Off Road Scissor Lift
- Suitable for special uneven surfaces
- Foldable fence reduces the overall size of the machine
- Solid tires with strong grip performance
- Ground clearance of 200mm, excellent performance through obstacles
- 45% climbing ability, able to smoothly climb slopes
- Automatic display of fault codes for easy maintenance
- The pedal extension platform can be extended in both directions to the working point
Off Road Scissor Lift
| 【FEATURES】
Safety Configuration
|
【FEATURES】
Other Configuration
|
【HIGH LIGHTS】
High Performance
|
Technical parameter
| Model | QYCY-16RT |
| Size | |
| Working Height | 17.80m |
| A-Platform Height-Elevated | 15.8m |
| B-Platform Height-Stowed | 2.09m |
| C-Platform Length | 4.24m |
| D-Platform Width | 1.83m |
| Platform Extension | 1.3m |
| E-Overall Height (unfolded guardrail) | 3.19m |
| Overall height (folded guardrail) | 2.63m |
| F-Overall Length | 1.88m |
| G-Overall Width | 2.29m |
| H-Wheelbase | 2.84m |
| I-Ground Clearance (Stowed) | 0.2m |
| J-Ground Clearance (Raised) | 0m |
| Performance | |
| Platform Capacity | 680kg |
| Max. Number of Workers | 4 person |
| Driving Speed (Strowed) | 6.1km/h |
| Driving Speed (Raised) | 0.5km/h |
| Turning Radius (Outside) | 5.5m |
| Turning Radius (Inside) | 2.4m |
| Gradeability | 0.45 |
| Max. Working Angle | 2°/3° |
| Tire(Drive Wheel) | 33*12-20 |
| Power | |
| Hydraulic oil tank | 110L |
| Diesel fuel tank | 150L |
| Power source (battery) | YangMAR/weichai |
| Weight | |
| Gross | 8800KG |
