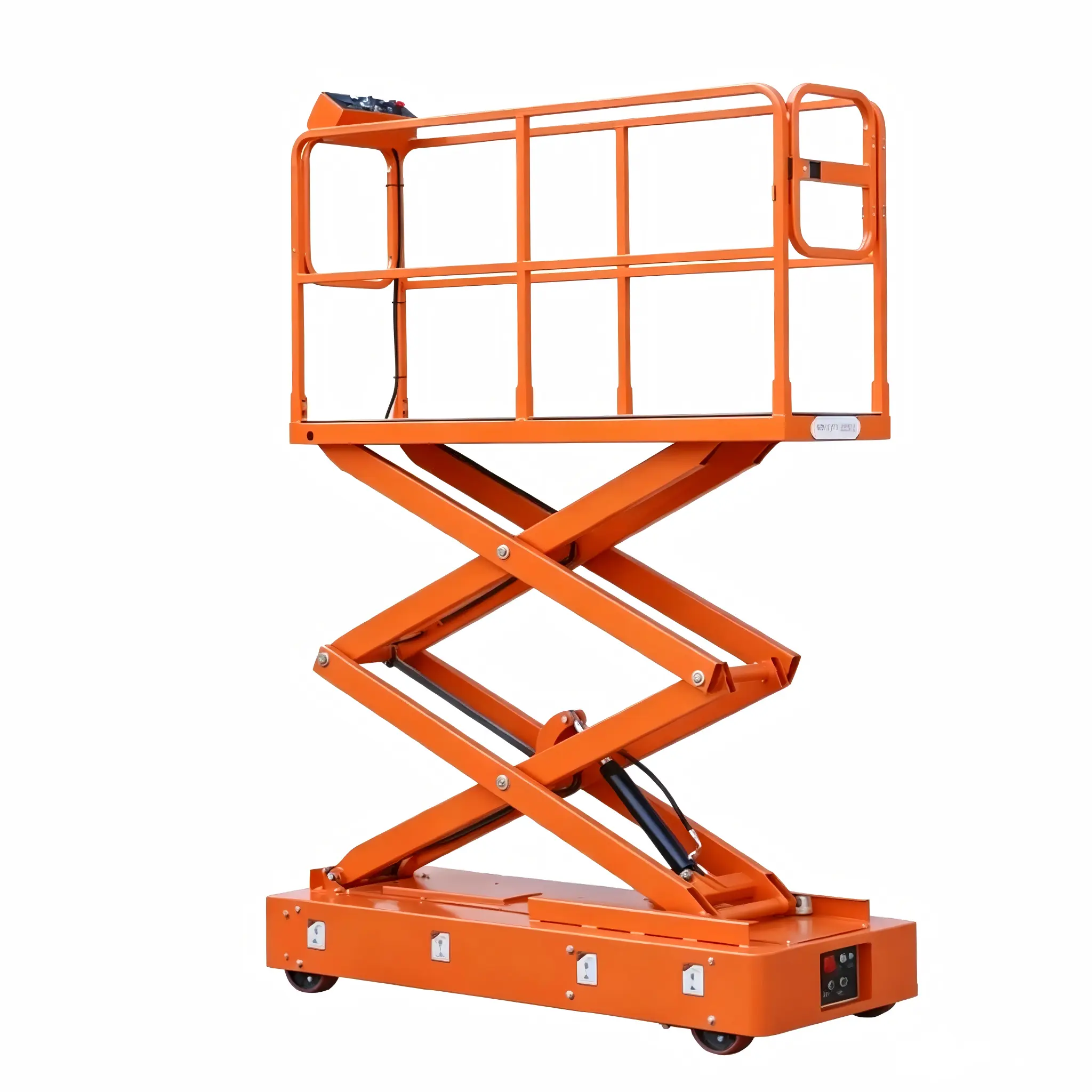

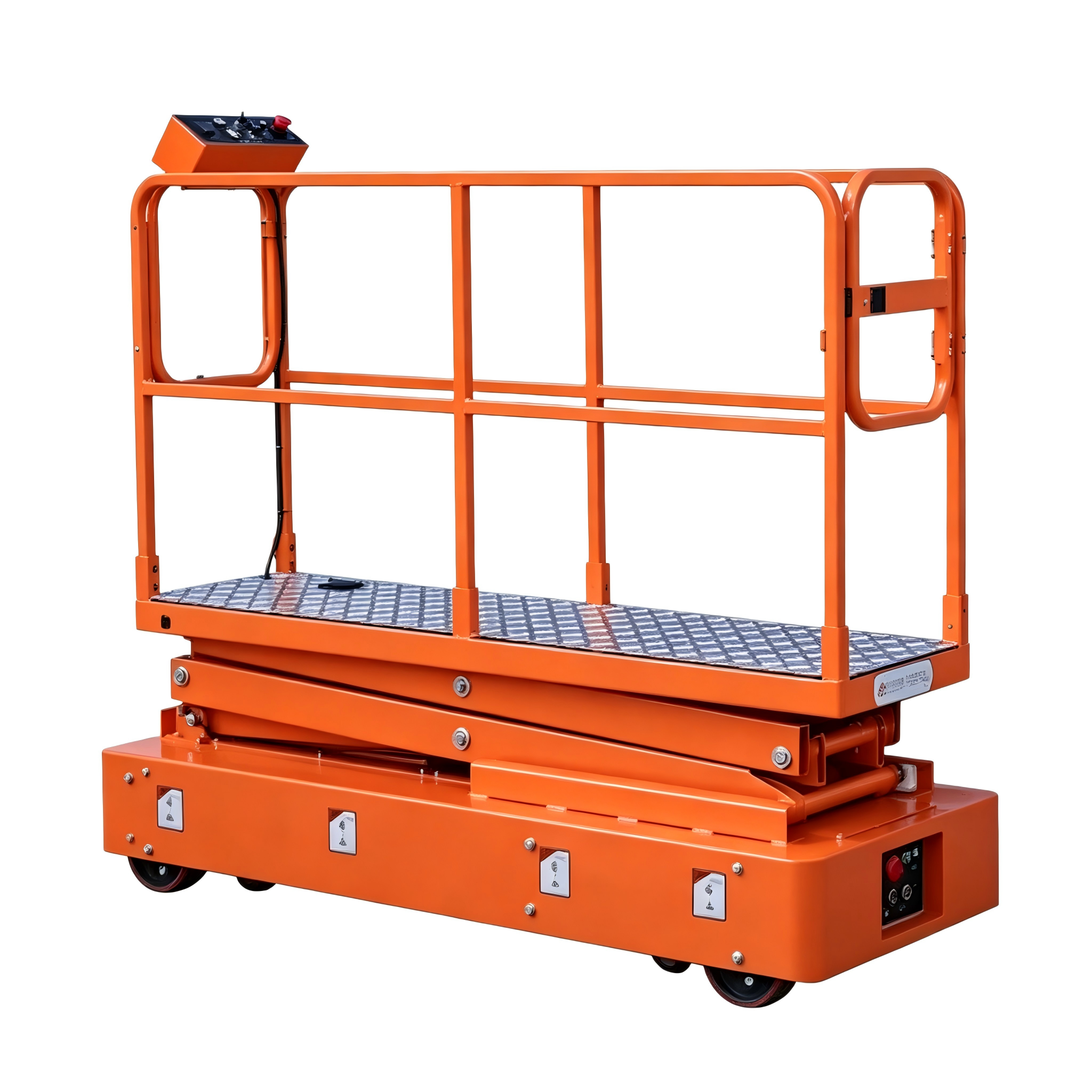

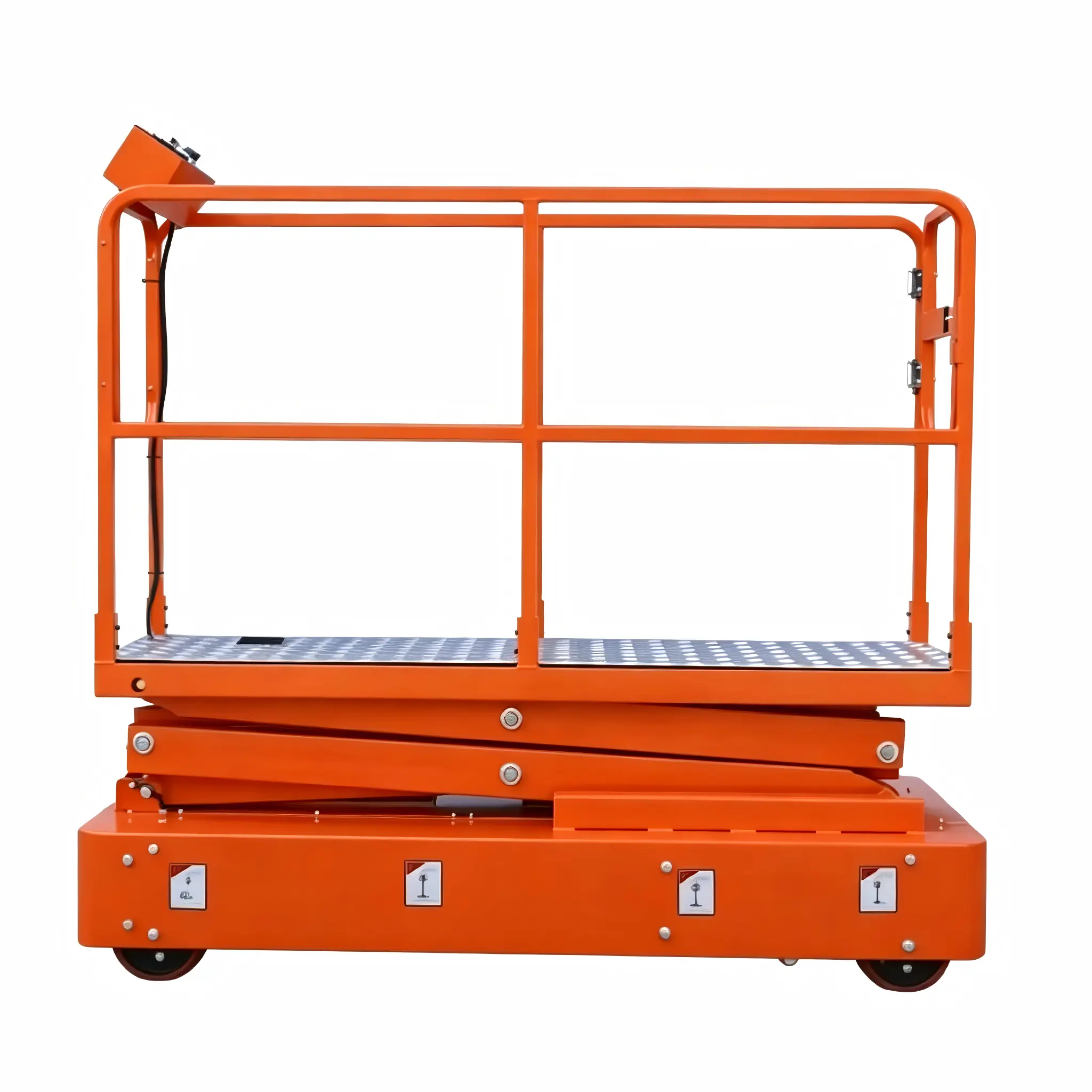

Rail Type All Electric Scissor Lift Platform
- Mainly used for various agricultural operations such as fruit harvesting, crop pruning, and artificial pollination of elevated crops in greenhouse facilities. Small size, low noise, no pollution.
Rail Type All Electric Scissor Lift Platform
Functional Features
|
Introduction
|
Technical parameter
| Body Parameter | ||||
| Model | GSJT0.2-3 | GSJT0.2-4 | GSJT0.2-3W | GSJT0.2-4W |
| Lifting Capacity(kg) | 200 | 150 | 200 | 150 |
| Max. Working Height(mm) | 5000 | 6000 | 5000 | 6000 |
| Max. Platform Height(mm) | 3000 | 4000 | 3000 | 4000 |
| Min. Platform Height(mm) | 600 | 705 | 600 | 705 |
| Overall Length(mm) | 1935 | 1935 | 1935 | 1935 |
| Overall Width(mm) | 770 | 770 | 1020 | 1020 |
| Overall Height(mm) | 1655 | 1760 | 1655 | 1760 |
| Platform Size(mm) | 1910×510 | 1910×510 | 1910×650 | 1910×650 |
| Overall Net Weight(kg) | 520 | 590 | 590 | 660 |
| Performance Parameter | ||||
| Model | GSJT0.2-3 | GSJT0.2-4 | GSJT0.2-3W | GSJT0.2-4W |
| Min. Ground Clearance(mm) | 70 | 70 | 70 | 70 |
| Distance Between Track Centrelines(mm) | 550 | 550 | 800 | 800 |
| Diameter/Thickness Of Track(mm) | 48/2.5-4.0 | 48/2.5-4.0 | 48/2.5-4.0 | 48/2.5-4.0 |
| Driving Motor(v/kw) | 24/0.5 | 24/0.5 | 24/0.5 | 24/0.5 |
| Lifting Motor(v/kw) | 24/2.2 | 24/2.2 | 24/2.2 | 24/2.2 |
| Running Speed(km/h) | 0-3.5 | 0-3.5 | 0-3.5 | 0-3.5 |
| Rising/Falling Time(sec) | 12/14 | 18/20 | 12/14 | 18/20 |
| Battery(v/Ah) | 2 × 12/80 | 2 × 12/80 | 2 × 12/108 | 2 × 12/108 |
| Charger(v/A) | 24/15 | 24/15 | 24/15 | 24/15 |
| Wheel(mm) | Φ200 × 50 | Φ200 × 50 | Φ200 × 50 | Φ200 × 50 |
