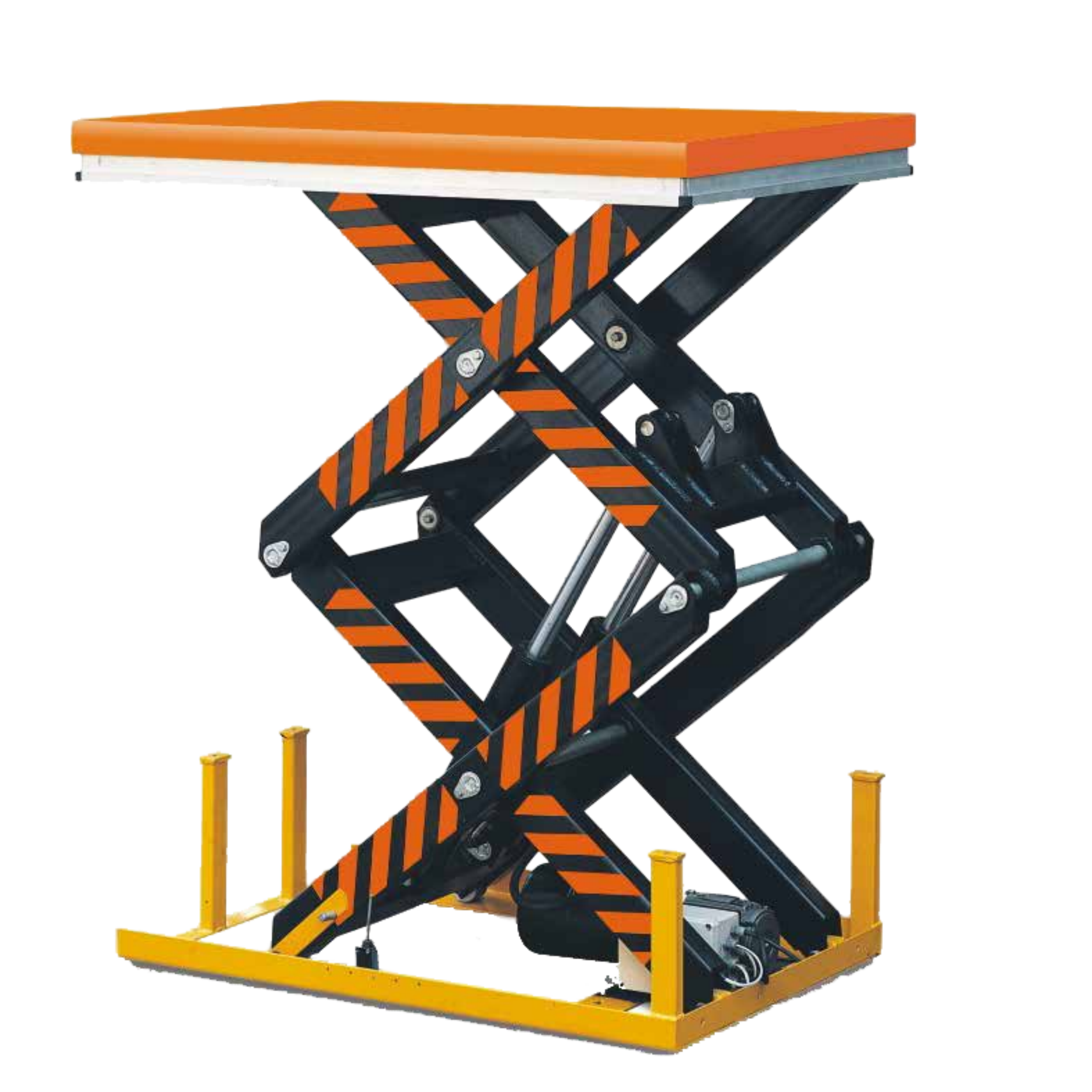

Scissors Lift Table Low-Profile
Electric platform truck is a multifunctional lifting and unloading mechanical equipment, and an electric lifting platform lifting system driven by hydraulic pressure. The scissor fork mechanical structure provides a high stability for the lifting of the lifting platform, a wide working platform, and a high bearing capacity, making the range of high altitude operations larger and suitable for simultaneous operation by multiple people.
Scissors Lift Table Low-Profile
Product Description
Electric platform truck is a multifunctional lifting and unloading mechanical equipment, and an electric lifting platform lifting system driven by hydraulic pressure. The scissor fork mechanical structure provides a high stability for the lifting of the lifting platform, a wide working platform, and a high bearing capacity, making the range of high altitude operations larger and suitable for simultaneous operation by multiple people.
Specification
| Model | SJGF-1000 | SJGF-2000 | SJGF-4000 | SJGF-1000 | SJGF-2000 | SJGF-400 | SJGF-800 |
| Capacity (kg) | 1000 | 2000 | 4000 | 1000 | 2000 | 400 | 800 |
| Max. Lift Height (mm) | 1780 | 1780 | 2050 | 3000 | 3000 | 4140 | 3000 |
| Min. Height (mm) | 305 | 360 | 400 | 470 | 560 | 600 | 706 |
| Platform Size L×W (mm) | 820×1300 | 850×1300 | 1700×1200 | 1700×1000 | 1700×1000 | 1700×1000 | 1700×1000 |
| Base Size (mm) | 640×1240 | 785×1220 | 1600×900 | 1600×1000 | 1606×1010 | 1600×1000 | 1606×1010 |
| Motor Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Input Voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Rise Time (s) | 35-45 | 35-45 | 55-65 | 35-45 | 50-60 | 30-40 | 70-80 |
| Service Weight (kg) | 210 | 295 | 520 | 450 | 750 | 548 | 858 |
